BAR & NIGHTLIFE LIGHTING SOLUTION
Layered bar lighting for atmosphere, product presentation and reliable nightly operation
A strong bar scheme needs more than saturated colour. Staff require useful task light, bottles need flattering vertical illumination, guests need comfortable ambience, and every LED line must remain accessible after counters and joinery are installed.
THE PROJECT CHALLENGE
A solution starts with site conditions—not a product code
Divide the project into visual layers: functional light for preparation and circulation, warm architectural light for comfort, shelf lighting for merchandise, and controlled colour for events or brand moments. When one RGB strip is asked to do every job, white quality and usability usually suffer.
High-value lighting locations
- Bottle shelves and back bars with controlled glare and good colour rendering
- Counter fronts, toe-kicks and banquettes with concealed linear light
- Ceiling coves and architectural reveals for general ambience
- Neon outlines or pixel-controlled features for identity and programmed scenes
Durability matters in hospitality. Spills, cleaning, heat from enclosed joinery and late-night operating hours should be reflected in the product and installation detail.
DESIGN PRIORITIES
Decisions that determine performance in the finished installation
Turn the desired appearance into a buildable, maintainable lighting specification.
Separate task light from effect light
Use credible white light for preparation, payment and cleaning. Colour-changing layers can then be dimmed or animated without compromising staff visibility.
Make bottles and finishes look right
High CRI and careful CCT selection help spirits, labels, food and timber read naturally. Test reflective metal, glass and stone for distracting hotspots.
Control the control system
Define zones, scenes, protocols and who can operate them. A simple reliable scene panel is often more useful than an overcomplicated app-only system.
Protect and service the installation
Use profiles, diffusers and accessible drivers. Provide removable panels at high-failure-risk areas such as wet counters and tightly enclosed shelves.
SELECTION GUIDE
Match the lighting format to the project requirement
Product choice should follow the viewing direction, visual effect, environment, control system and installation detail.
Build a layered product schedule
- High-CRI white or tunable white: for shelves, counters and service tasks.
- RGBW or RGBCCT: for flexible ambience with a usable white channel.
- Pixel or RGBIC neon: for feature walls, logos and controlled movement.
- Compact waterproof profiles: for splash-prone bar fronts and cleaning-exposed details.
Choose effects guests can live with
Fast animation can distract staff and cause discomfort. Specify calm default scenes, brightness limits and transition times, then reserve high-energy effects for short programmed moments.
RECOMMENDED PRODUCTS
Products that can be configured for Bar Lighting
These options cover common project requirements. Final dimensions, output, protection, controls and documentation are confirmed against your specification.
OPTION 5
Geometric Anti-Glare Neon Flex – Patterned Decorative LED Lighting Solution
Anti-Glare Neon Flex
OPTION 6
WS2812 Addressable RGB LED Strip DC5V/DC12V | Dream Color Lighting
Programmable and customizable
Product-specific compliance: request the applicable
certificate or report for the exact model, configuration and destination market.
SYSTEM & INSTALLATION
Specify more than the LED strip
A dependable result includes power, controls, cables, connections, mounting, environmental protection and service access.
Coordinate with joinery before fabrication
Show profile size, diffuser clearance, cable exit and access panel on the shop drawing. Bottle shelf spacing should be tested with the real products, not an empty shelf.
Distribute power by zone
Keep drivers ventilated and reachable. Calculate voltage drop for each shelf or cove, and avoid a single failure point that blacks out the complete bar.
Commission day and night scenes
Set task, cleaning, opening, evening and event scenes with the operator. Photograph the approved settings and lock out excessive brightness where appropriate.
APPLICATION GALLERY

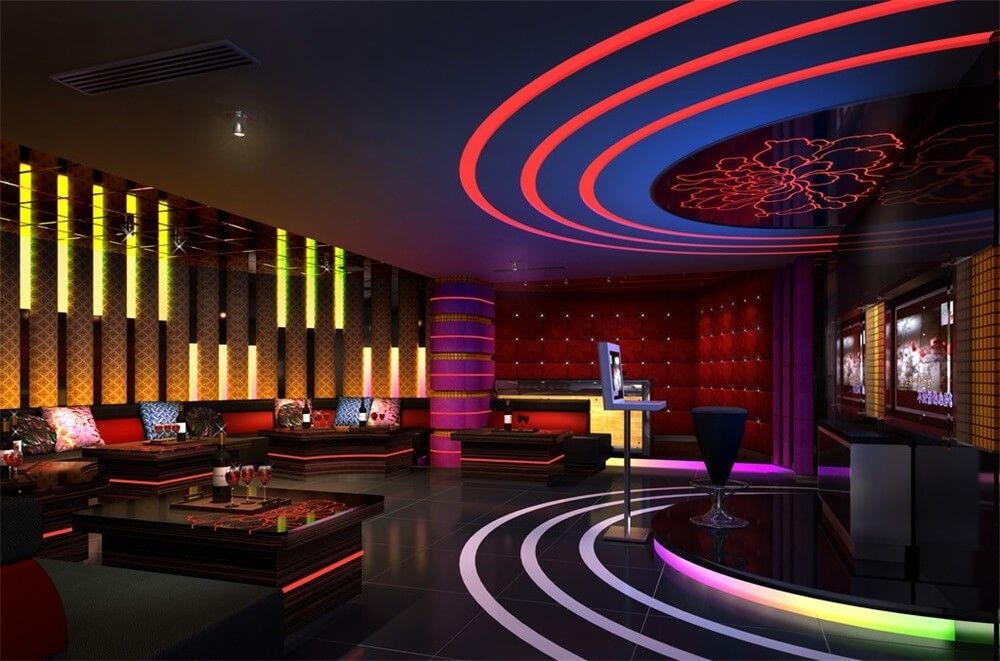

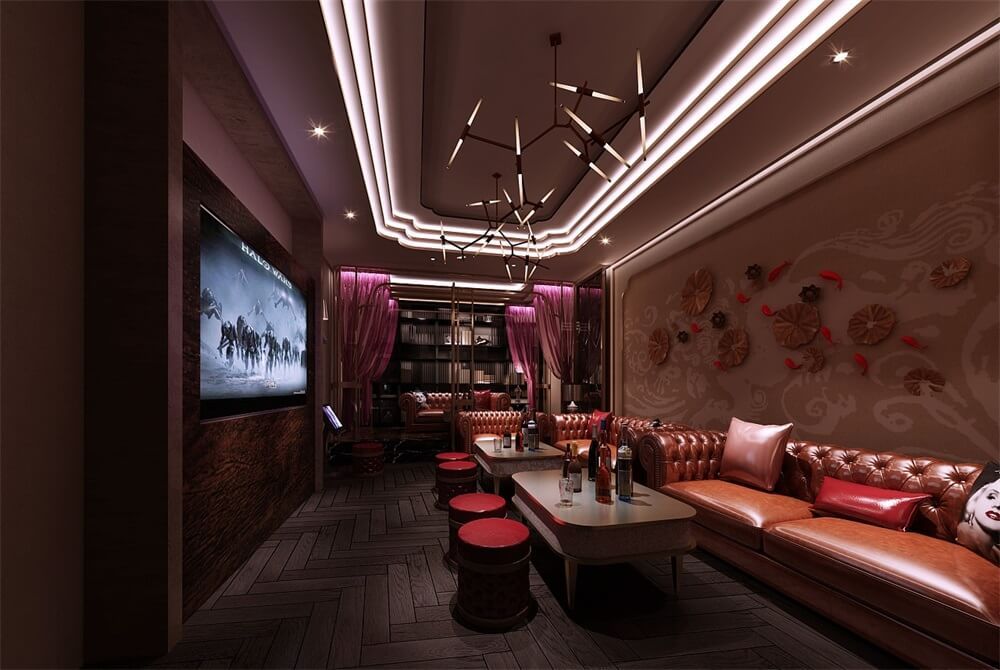

Bar Lighting application references
Use images to discuss the desired effect; the final specification depends on the actual site.
PROJECT BRIEF
Information that makes a quotation more accurate
Send what is available. We can identify the remaining decisions before sampling.
Prepare Your RFQ- Plans, elevations and joinery details
- Materials, bottle layout and viewing direction
- White-light CCT, CRI and dimming requirement
- RGB/RGBW/RGBIC zones and control protocol
- Wet or cleaning-exposed locations
- Run lengths, driver locations, quantity and opening date
BUYER FAQ
Questions to resolve before sampling
Practical answers for designers, contractors and purchasing teams preparing a project specification.
Is RGB or RGBW better for bar lighting?
RGBW is usually more versatile because it provides a dedicated white channel for usable ambient light. RGB can be appropriate for pure effects, while high-CRI white strip is still preferable for bottles and work surfaces.
How do you avoid visible LED dots on bottle shelves?
Use higher LED density or COB, provide enough distance to the diffuser, and choose a suitable profile. A full-size shelf mock-up is the best way to confirm dot-free appearance.
Can bar lighting be controlled by DMX?
Yes. DMX is useful for show-oriented zones, while DALI, 0/1–10 V or local controllers may suit general layers. The control strategy should define addressing, scene recall and maintenance access.
What protection is needed near a bar counter?
Assess spills, cleaning spray and condensation at the exact location. Use an appropriate protected product and shield, but keep connections and drivers away from wet zones whenever possible.
FROM CONCEPT TO APPROVED SAMPLE
Build a bar lighting schedule that works every night
Tell us the site conditions, desired effect, dimensions, quantity, destination market and schedule.
PROJECT & OEM ENQUIRIES
Get a specification-based quotation
Describe the application and the result you need. Our team will review the electrical, optical and mechanical requirements before recommending a product or sample.
