Dual White & RGB Color

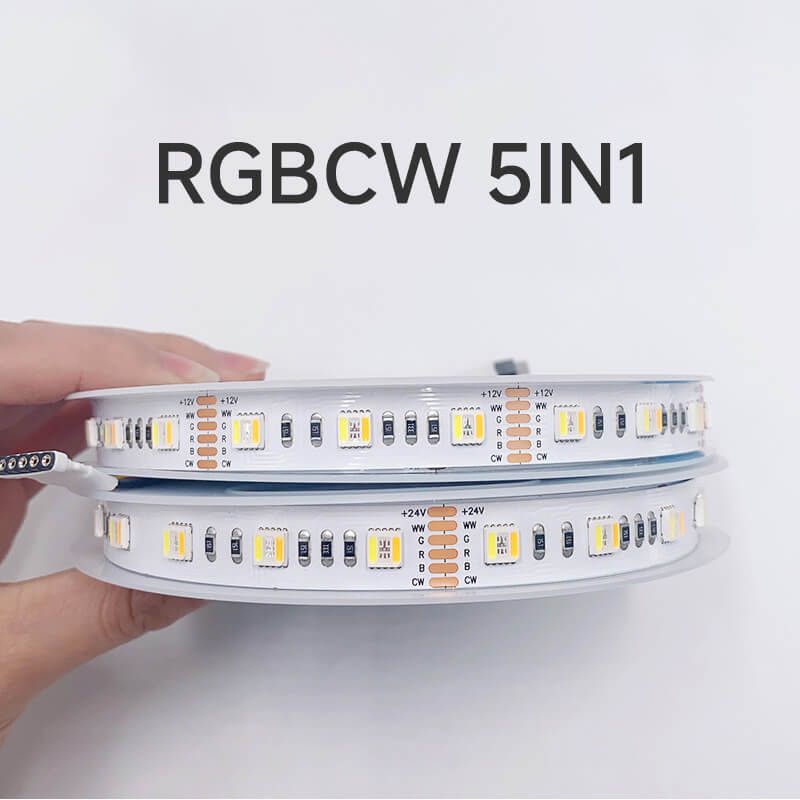

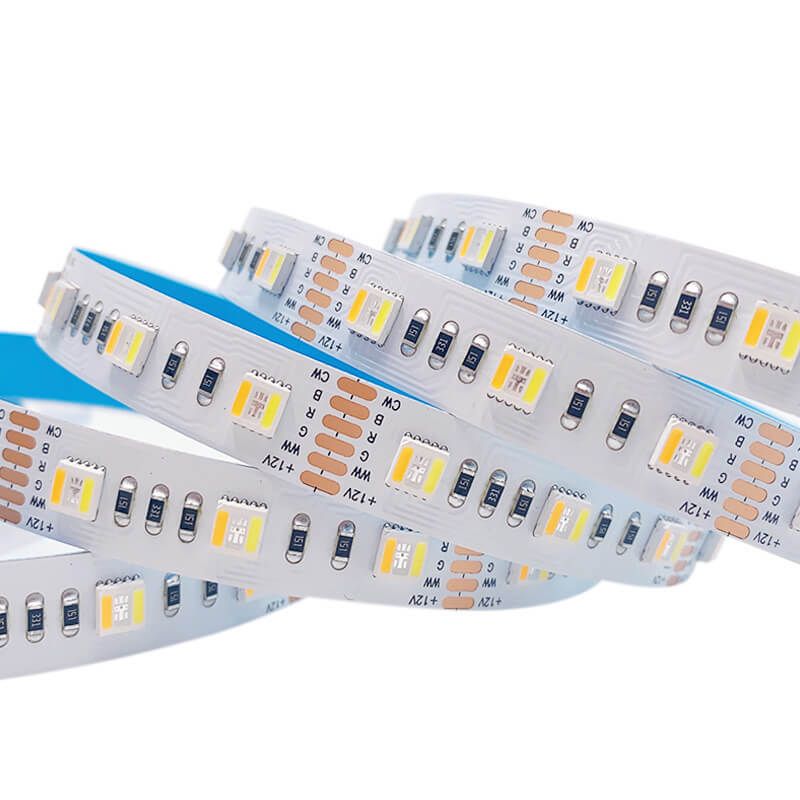

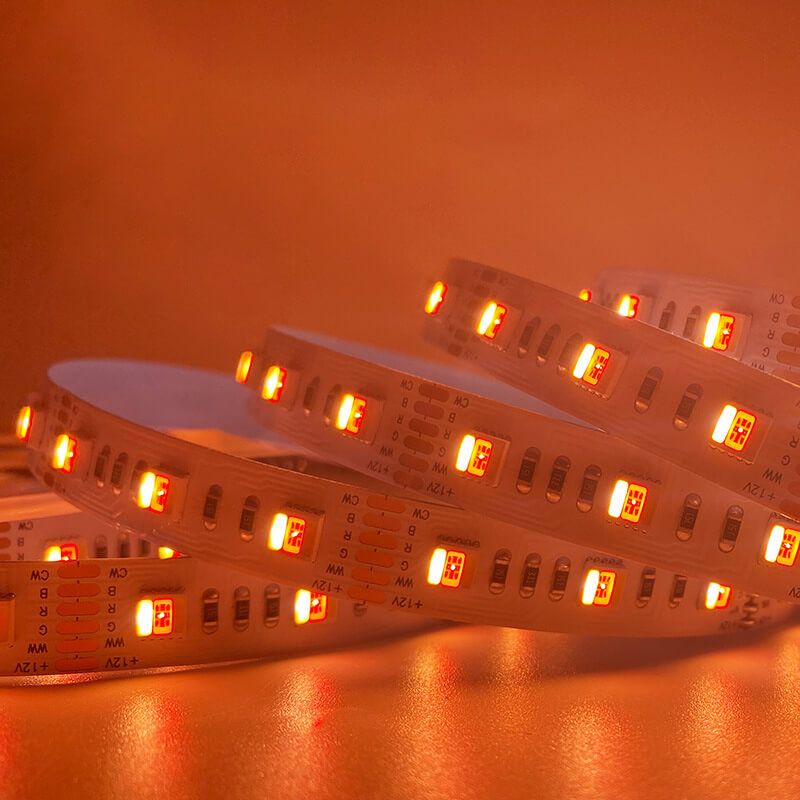

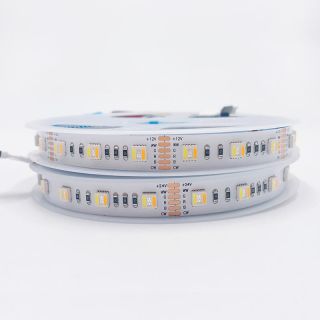

This RGB+CCT five-in-one strip combines red, green and blue with separate warm-white and cool-white channels for decorative color plus adjustable white light.
Hospitality, residential coves, retail displays and multifunction spaces that need scenes ranging from saturated color to practical white.
RGB+CCT is analog multichannel control unless an addressable IC is specified. The entire connected section normally follows the same channel levels.

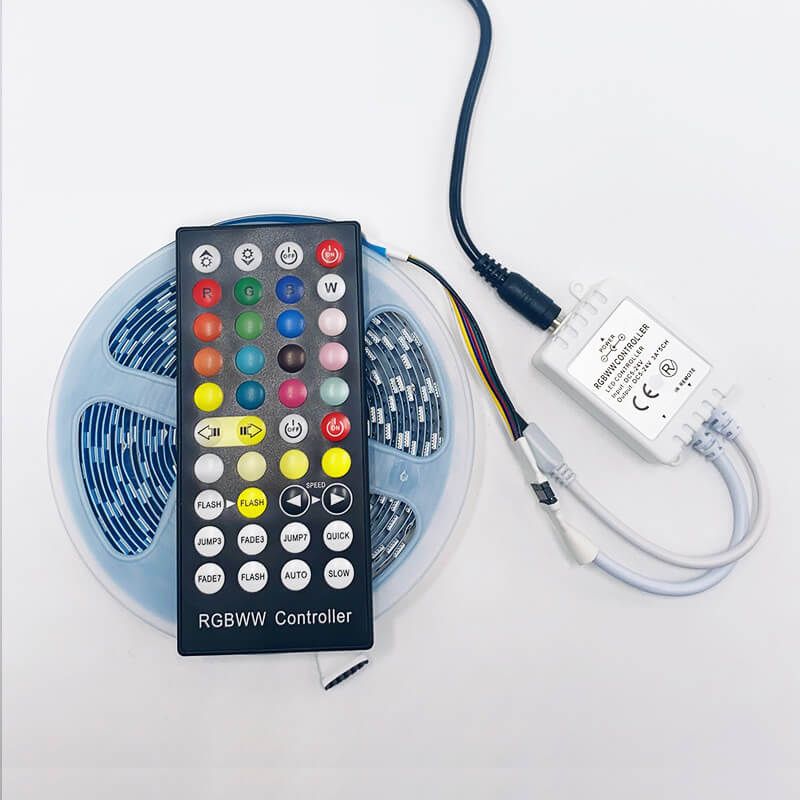

Compare RGBW and RGB+CCT concepts, browse multicolor strips, or request a custom controller package.
No. RGB+CCT needs outputs for RGB, warm white and cool white.
Yes if the controller, driver and strip ratings permit the combined load.
Explore the complete RGB LED strip range, learn how to choose the right RGB strip, and review DMX512 control for RGB projects.
| Item | Specification |
|---|---|
| Product Type | RGB CCT 5-in-1 Dual Color Temperature LED Strip |
| LED Chip | SMD 5050 (RGB + Warm White + Cool White) |
| Light Channels | 5 Channels (R / G / B / WW / CW) |
| Control Wires | 6 Wires (R, G, B, WW, CW, V+) |
| Control Method | PWM Dimming (Constant Voltage) |
| Operating Voltage | DC 12V / DC 24V |
| Max Power per LED | 0.2–0.3W (depends on driving and brightness) |
| Strip Power | 12V: ~18–22W/m24V: ~18–22W/m |
| Color Mode | RGB Full Color + Dual White (Warm & Cool) |
| Color Temperature Range | WW 2700–3000K / CW 6000–6500K |
| Color Rendering Index | Ra ≥ 80 (optional Ra ≥ 90) |
| LED Density | 30 / 60 LEDs per meter (selectable) |
| LED Pitch | 16.6 mm (for 60 LEDs/m) |
| PCB Width | 10 mm / 12 mm (depending on wiring and power) |
| PCB Material | Double-sided FPC, 2oz copper |

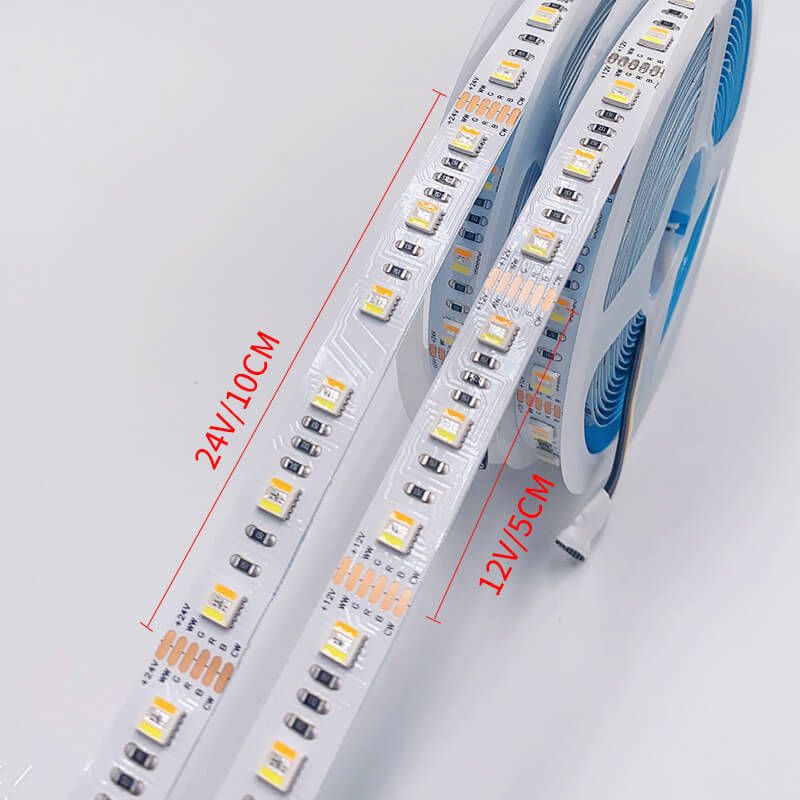

| Cuttable Length | 12V: every 3 LEDs24V: every 6 LEDs |
| Dimming Range | 0–100%, flicker-free |
| Beam Angle | 120° |
| Protection Rating | IP20 / IP65 / IP67 (optional) |
| Operating Temperature | -20°C ~ +60°C |
| Lifetime | ≥50,000 hours |
| Typical Applications | Indoor lighting, commercial spaces, furniture integration, linear fixtures |
More similar products of this series of LED strip lights
