SPI Addressable COB LED Strip Light 720 LEDs/m DC24V for Dynamic Lighting Applications

Addressable COB LED Strip, Custom

Traditional addressable LED strips often struggle with visible light dots, limited flexibility, and inconsistent lighting effects in professional projects.

ZBL developed the SPI Addressable COB LED Strip Light to combine high-density COB technology with individual pixel control, creating a seamless lighting solution with smooth dynamic effects and uniform illumination.

With 720 LEDs/m, advanced SPI control, and a dot-free lighting surface, it helps designers and engineers achieve more creative and reliable lighting installations for architectural, commercial, and entertainment applications.

Designed to turn complex lighting concepts into seamless visual experiences.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Specification	Details
Product Name	SPI Addressable COB LED Strip Light
Model No.	Customized Model Available
LED Type	COB (Chip on Board) LED Technology
LED Density	720 LEDs/m
IC Type	Built-in Addressable IC (SPI Control)
Pixel Control	Individually Addressable Pixel Control
Working Voltage	DC 24V
Power Consumption	Customized According to LED Density
PCB Width	Customized Options Available
LED Color	RGB / RGBW / RGBWW / Single Color Optional
Light Effect	Dynamic Pixel Effects, Color Changing, Programmable Lighting
Light Quality	Dot-Free Continuous Illumination
Beam Angle	180° Wide Beam Angle

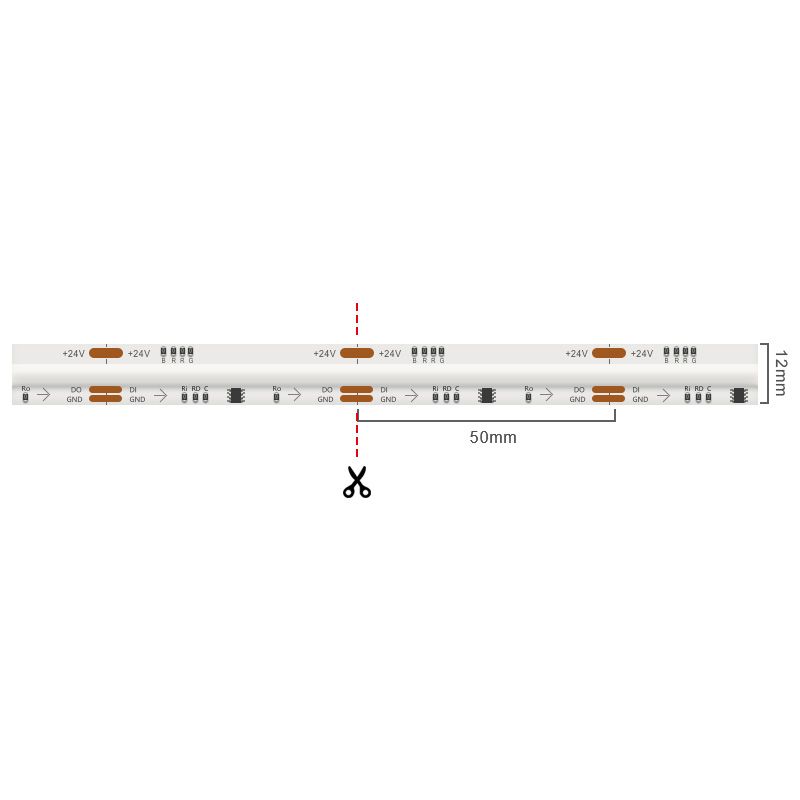

Cutting Unit	Cuttable by Designated Cutting Marks
Signal Transmission	SPI Digital Signal Control
Dimming Method	PWM Digital Dimming
Brightness Control	Individual Pixel Brightness Adjustment
PCB Type	Flexible FPCB
Waterproof Rating	IP20 / IP65 / IP67 / IP68 Optional
Working Temperature	-20℃ to +50℃
Storage Temperature	-40℃ to +80℃
Installation Method	3M Adhesive Backing / Aluminum Profile Installation
Connection Method	Customized Wire & Connector Options
Application	Architectural Lighting, Commercial Spaces, Hotels, Bars, Clubs, Stage Lighting, Decorative Lighting
Customization	Length, Voltage, LED Density, IC Type, Waterproof Level and Connector Available
Certification	CE, RoHS Compliant
Warranty	3-5 Years (Based on Application Conditions)
