3D Mini LED Strip Light 5mm*5mm 6W/M 24V 352LEDs/M

5mm*5mm, 3D luminescence

This 3D mini LED strip light features an ultra-compact 5×5 mm design, making it ideal for applications where space is limited, such as narrow aluminum profiles, grooves, and architectural details. Its unique 3D lighting structure delivers a visually rich and uniform illumination effect, enhancing depth and continuity in linear lighting designs. Available in a wide color temperature range from 2700K to 6500K, as well as RGB and dynamic pixel (addressable) versions, this LED strip is suitable for both functional white lighting and creative decorative applications in commercial, residential, and architectural projects.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Model	3D Mini LED Strip Light 5mm*5mm 6W/M 24V 352LEDs/M
Lumen package	640lm/m
Power	6W/m
Quantity per meter	352LEDs/M
CRI	80
Service life	50000h

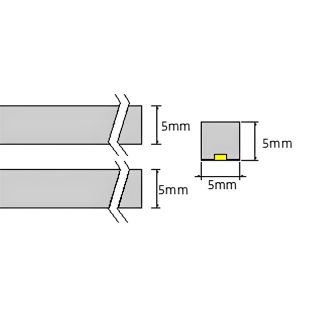

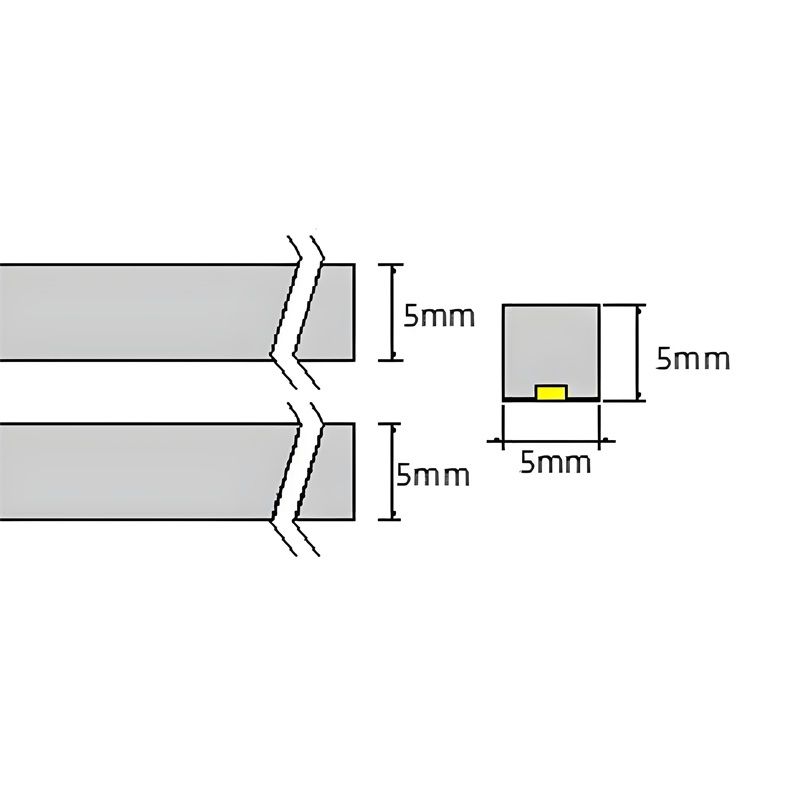

Size	W5mm*H5mm

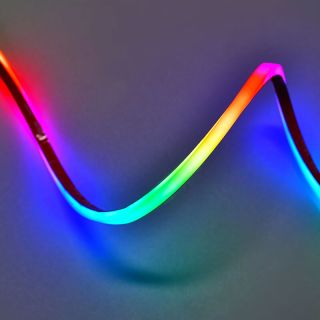

Color temperature	2700K/3000K/4000K/5000K/6000K/RGB/RGB+IC
Whether dimming	Yes
Luminous angle	180°
Maximum run length	3m
Working voltage	DC24V
Cutting length	22.73mm
Protection grade	IP65
Warranty time	5 year
Tape	3M 9495
Operating temperature	-4°F to 176°F (-20°C to 80°C)
Certification	UL,CE,RoHS
