Free-cut design for customized shapes
Traditional backlighting solutions often suffer from uneven illumination, visible hotspots, and limited lighting effects.

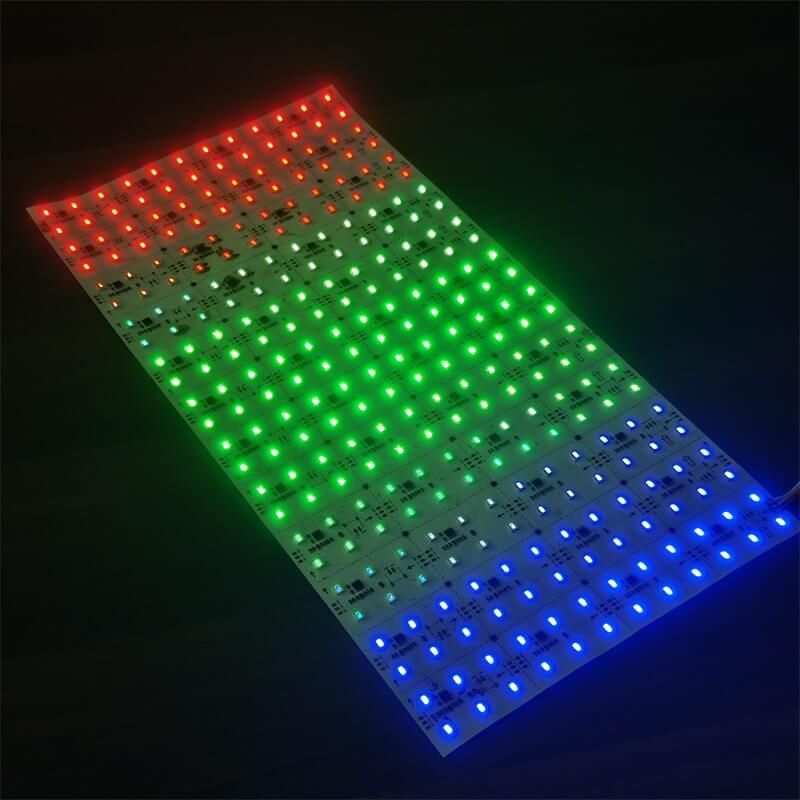

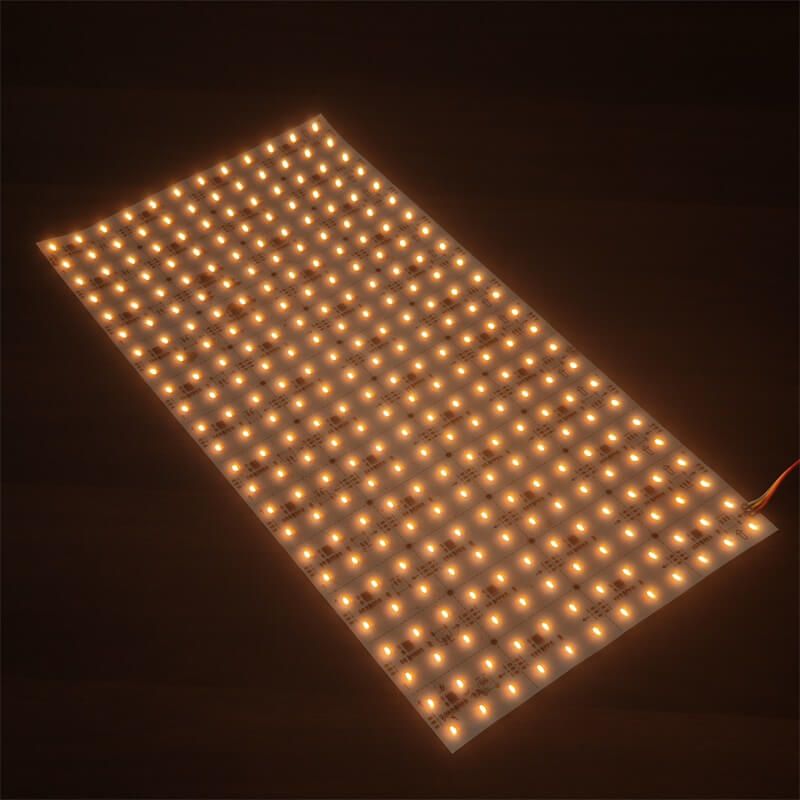

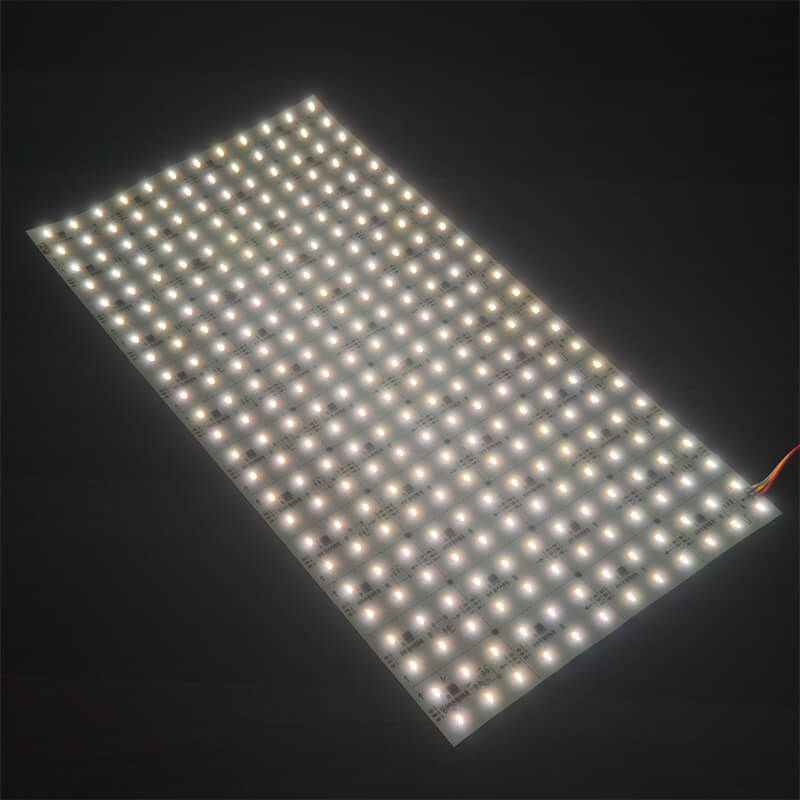

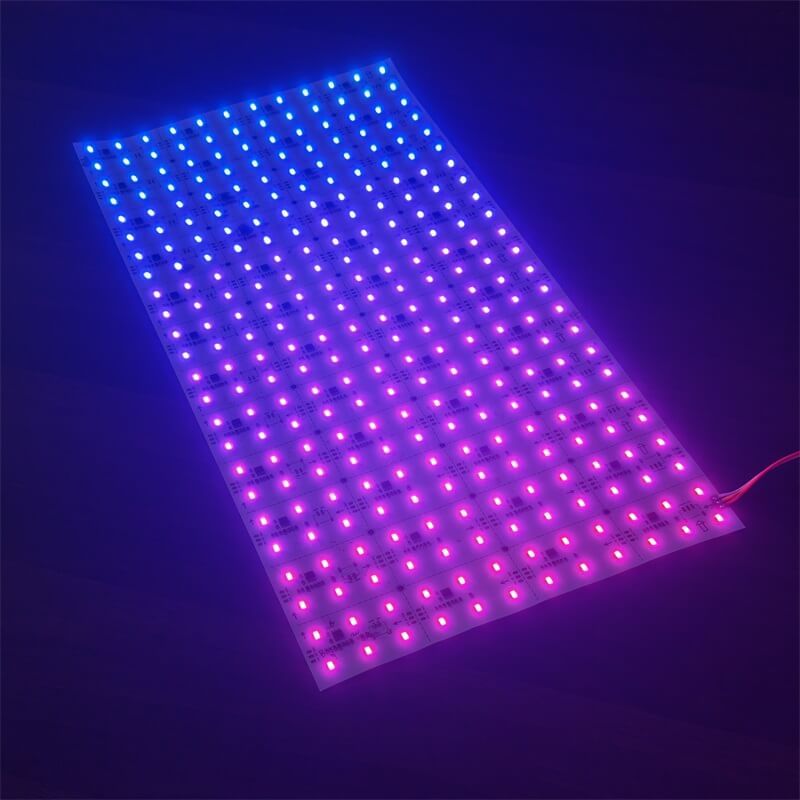

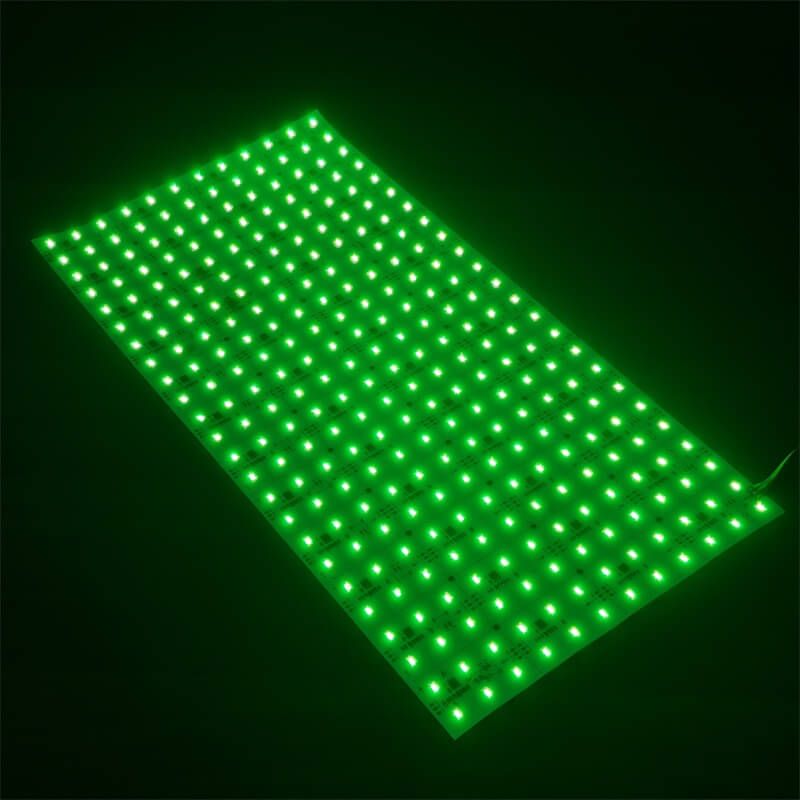

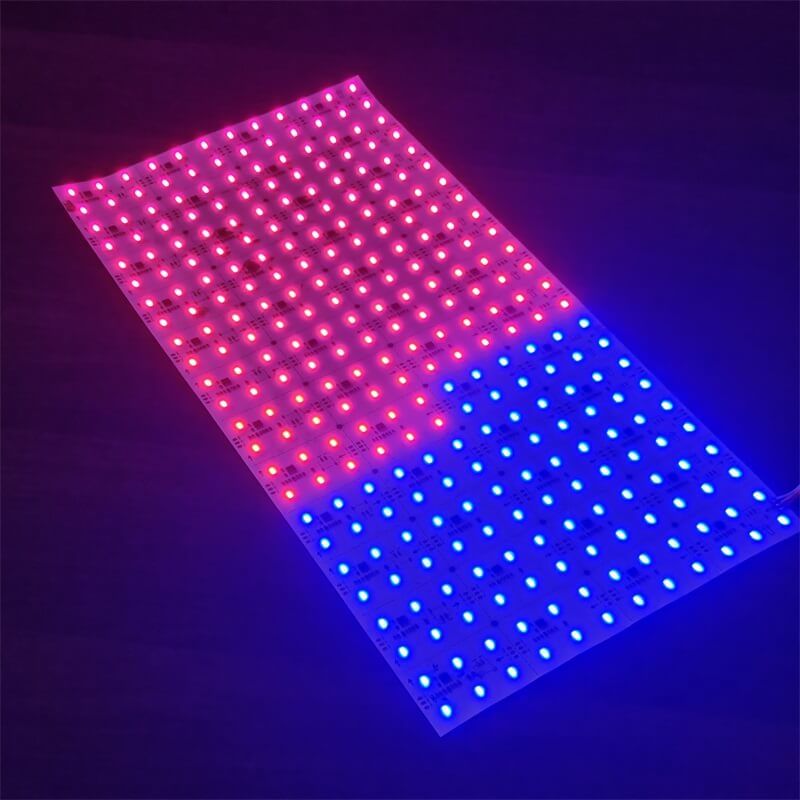

ZBL developed the RGBWW Pixel LED Light Sheet to provide a smarter solution for modern architectural and interior lighting. Combining high-density LEDs, RGBWW color mixing, and flexible design, it delivers smooth, uniform illumination for illuminated countertops, translucent walls, stretch ceilings, and custom lighting projects.
Transform ordinary surfaces into dynamic lighting experiences.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Specification | Details |
|---|---|
| Product Name | RGBWW Pixel LED Light Sheet Panel |
| Product Type | Flexible LED Backlighting Sheet / Pixel LED Panel |
| Model No. | ZBL2287A1W0 |
| LED Type | SMD5050 RGBWW LED |
| LED Quantity | 288 LEDs / Sheet |
| Pixel Control | Individually Addressable RGBWW Pixel Control |
| Color Type | RGBWW (RGB + Warm White) |
| Light Source | High Brightness SMD LED Chips |
| Sheet Size | 480mm × 240mm |
| Working Voltage | DC 24V |
| Power Consumption | 30W / Sheet |
| Cutting Method | Free Cutting Design (Cuttable According to Project Requirements) |
| PCB Type | Flexible PCB LED Sheet |
| Color Rendering Index (CRI) | ＞90 |
| Color Temperature | Adjustable Warm White + RGB Color Mixing |
| Dimming Method | PWM Digital Dimming |
| Control System | SPI Pixel Controller Compatible |
| LED Pitch | Customized Pixel Layout |
| Light Distribution | Uniform Surface Illumination |
| Lighting Effect | Smooth RGB Color Transition, Dynamic Pixel Effects |
| Beam Angle | 120° Wide Beam Angle |
| Working Temperature | -20℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Installation Method | Adhesive Backing / Mechanical Fixing |
| Connection Method | Customized Power & Signal Connection |

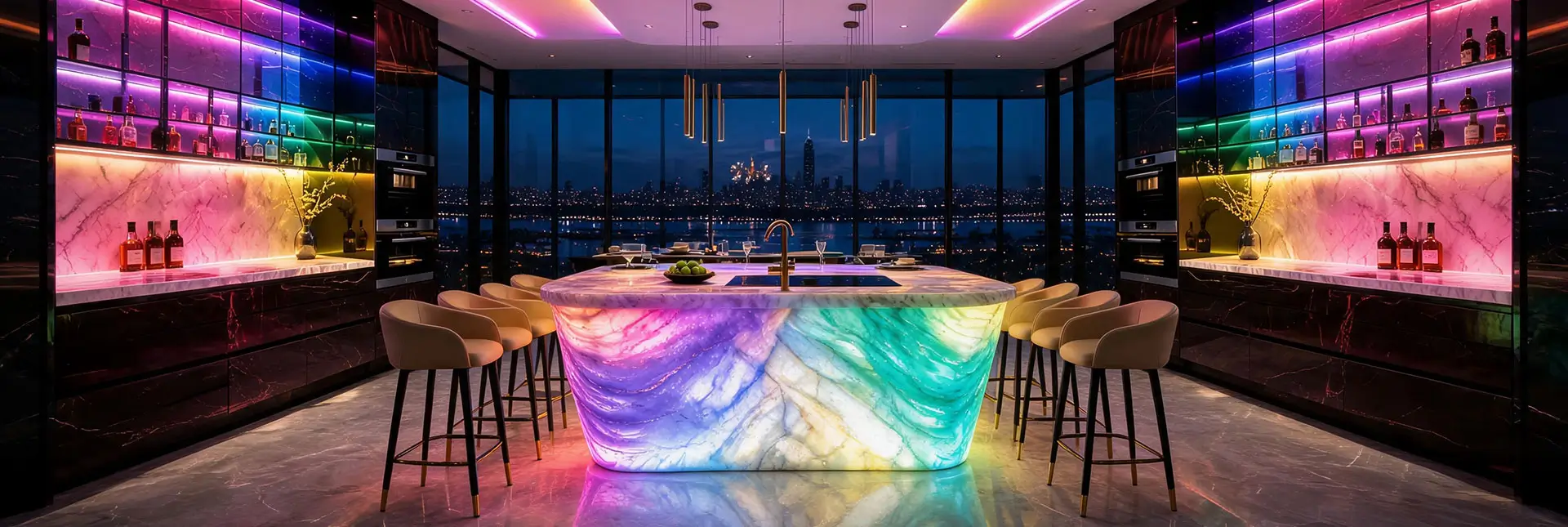

| Application | Illuminated Countertops, Translucent Walls, Stretch Ceilings, Backlit Stone, Display Cabinets, Commercial Interior Lighting |
| Customization Options | Size, LED Density, Voltage, Color, Connector and Control Solutions Available |
| Certification | CE, RoHS Compliant |
| Warranty | 3-5 Years (Based on Application Conditions) |
