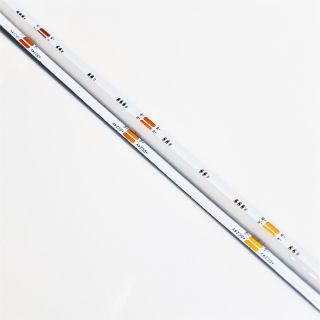

COB RGB LED Strip 840LEDs/M 10mm 14W/M DC24V

This 24V RGB COB strip uses a dense 840 LEDs/m construction to produce a smoother color line than many conventional SMD RGB strips. The listed model has a 10mm PCB, 14W/m power and IP20 indoor construction.

Best-fit applications

Suitable uses include coves, shelves, bars, display fixtures and hospitality accents where the strip is viewed at close range or installed in a shallow profile.

Controller and thermal planning

• Use a 24V RGB controller with adequate current per channel.
• Calculate driver size from 14W/m and installed length.
• Plan parallel feeds for longer runs.
• Use a suitable aluminum profile for mounting and heat transfer.
• Cut only at the listed 62mm intervals.

This is an analog RGB strip unless the specification explicitly states an addressable IC. Compare it with our RGB versus RGBIC guide and browse the COB strip range.

FAQ

Can it produce white?

RGB mixing can approximate white, but RGBW is preferable when clean task-quality white is required.

Is IP20 suitable outdoors?

No. Choose a protected construction for moisture exposure.

Compare more COB LED strip options, read our guide to COB and SMD light uniformity, or discuss custom COB strip specifications.
