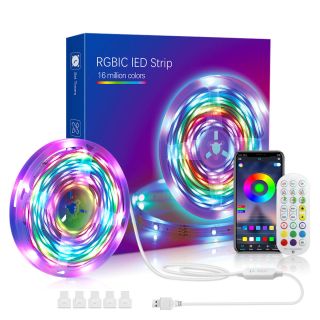

RGBIC LED Strip DC5V Bluetooth Remote Control TV Backlight USB Light Bar Set

RGBIC LED Strip DC5V Bluetooth Remote Control TV Backlight USB Light Bar Set

rgbic, dc5v, usb

Product quality assurance

This 5V USB RGBIC strip kit is designed for TV backlighting and compact indoor ambient-lighting projects. Addressable RGB+IC control allows multiple colors or effects along one strip, while app and 2.4G remote options simplify everyday use.

Best-fit applications

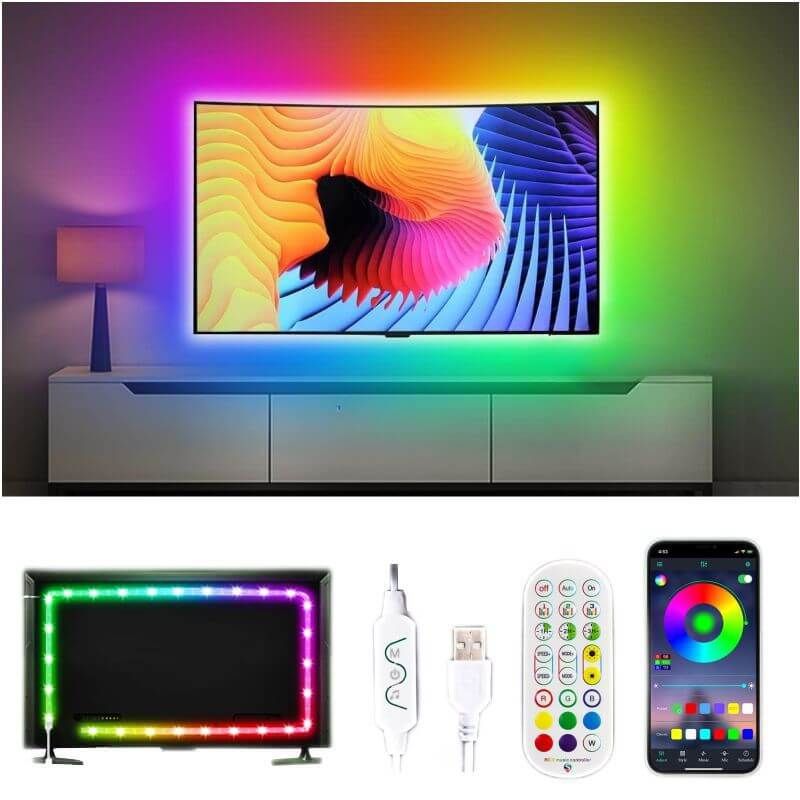

Use it behind televisions, monitors, shelves or entertainment furniture in dry indoor locations. The IP20 version is not designed for condensation or direct water exposure.

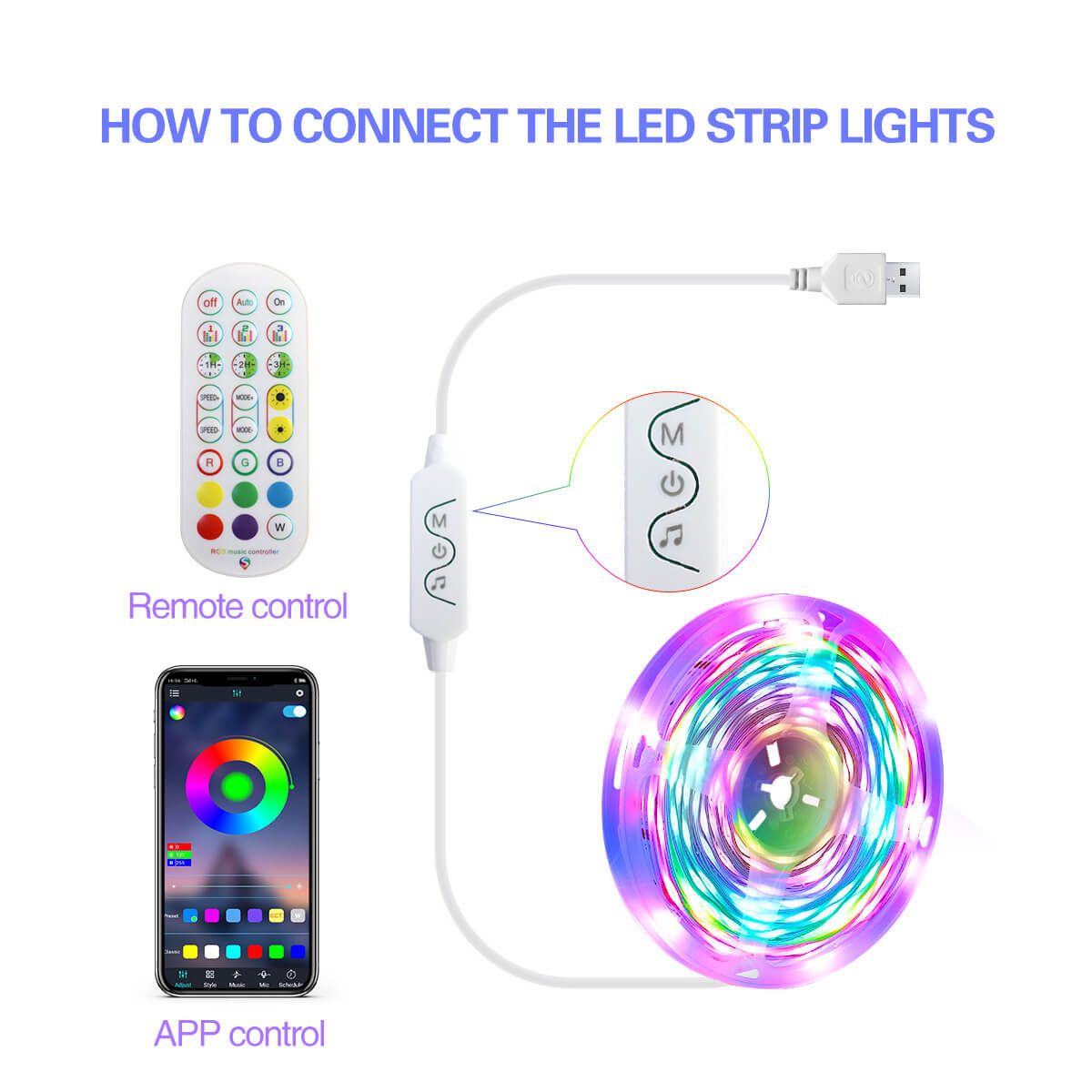

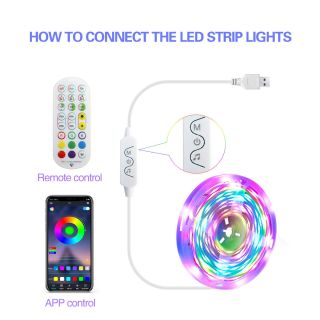

Installation checks

  • Confirm that the USB source can supply the required current at 5V.
  • Clean the mounting surface and relieve cable tension.
  • Follow the printed data direction.
  • Do not exceed the specified maximum run length.
  • Test app and remote functions before final mounting.

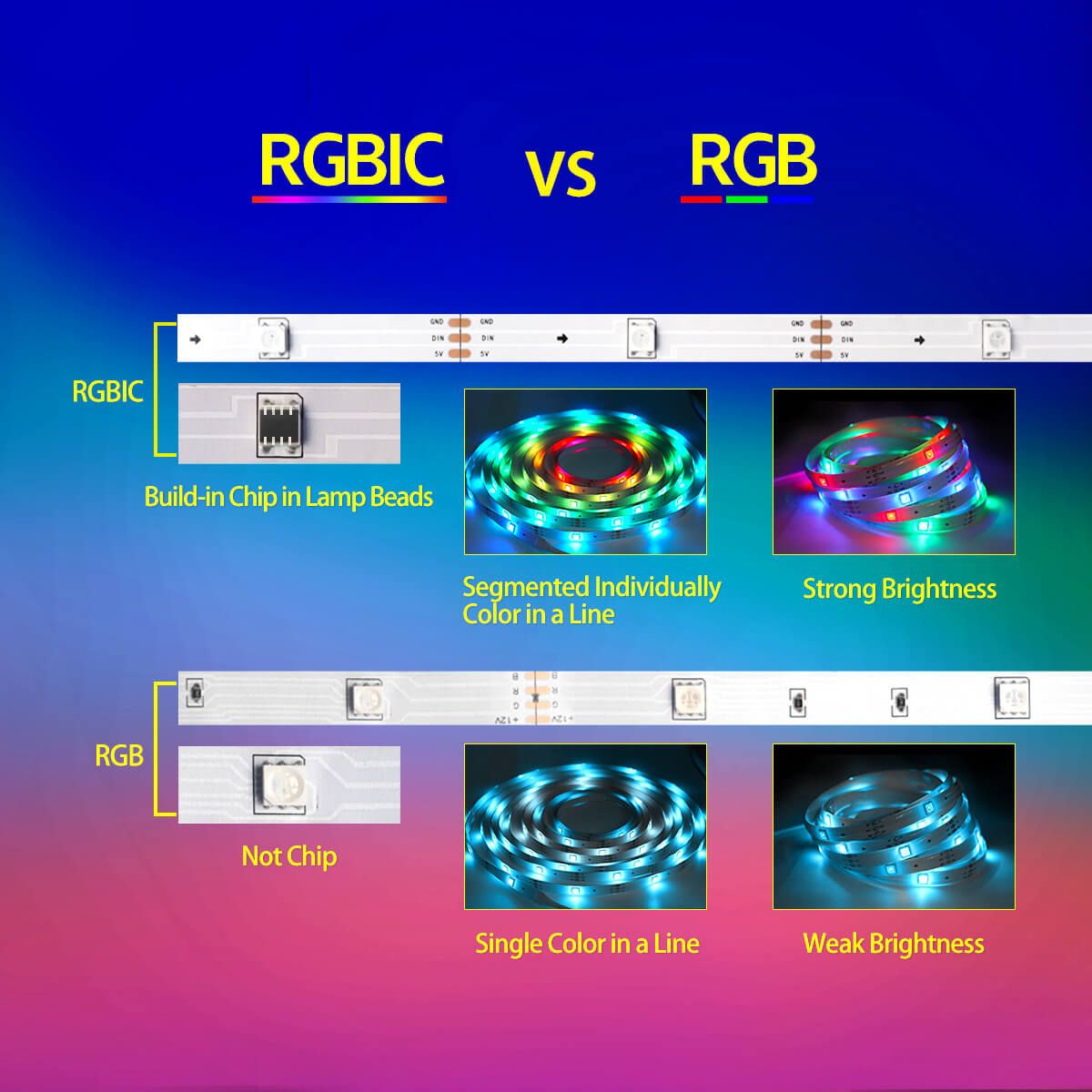

RGBIC compatibility

This is a digital RGBIC product, not an analog four-wire RGB strip. Replacement controllers must support the strip protocol, voltage and pixel configuration. Read our RGBIC wiring guide and addressable strip guide.

Explore more RGB and pixel LED strips or request a custom cable and controller package.

FAQ

Can it run from any USB port?

The port must provide sufficient 5V current for the connected length.

Can it display several colors at once?

Yes, when the controller and programmed effect address separate segments.

Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Model RGBIC LED Strip DC5V Bluetooth Remote Control TV Backlight USB Light Bar Set
Power 1.5W/m
Type RGB+IC
Service life 50000h
Size 160*160*25(mm)
LED Number 14LEDs/m
Whether dimming Yes
Luminous angle 120°
Maximum run length Maximum run length up to 16 ft (5 meters)
Working voltage DC5V
Control type 2.4G remote control, app
Protection grade IP20
Warranty time 3 year
Tape 3M 9495
Operating temperature -4°F to 176°F (-20°C to 80°C)
Certification UL,CE,RoHS
