How many pins for RGBIC?

Most addressable RGBIC LED strips use three or four conductors, but pin count alone does not identify compatibility. You must match voltage, IC protocol, data direction and controller type.

Typical RGBIC connections

• Three-wire: positive voltage, data and ground. Common on single-data addressable strips.
• Four-wire with clock: positive, data, clock and ground. Used by clocked protocols.
• Four-wire with backup data: positive, main data, backup data and ground. Some fault-tolerant strips use this arrangement.

A four-wire analog RGB strip is different: it commonly has one shared positive connection plus separate red, green and blue channels. It cannot be controlled by an RGBIC data controller.

Check these items before connecting

1. Read the printed voltage on the PCB.
2. Identify the IC or supported protocol.
3. Follow the data arrow from controller to strip.
4. Connect controller and strip grounds.
5. Confirm pixel count and controller output capacity.
6. Plan power injection without feeding an incorrect voltage into the data line.

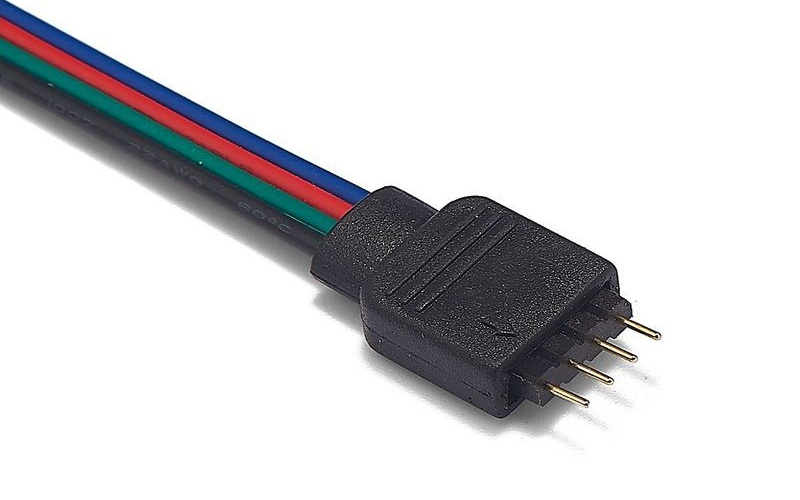

Why identical connectors may still be incompatible

Manufacturers can use the same connector shell with a different pin order. Never rely on wire color alone. Check PCB labels and the product diagram. A 5 V controller signal may also require appropriate level shifting or shorter signal wiring in demanding installations.

For system selection, read our addressable LED strip guide and compare the RGB and pixel strip range. Larger architectural systems may benefit from a DMX512 control solution.

Frequently asked questions

Is every three-pin strip RGBIC?

No. Confirm the IC and wiring diagram.

Can I connect RGBIC strip to an RGB controller?

No. Analog RGB controllers vary channel voltage; RGBIC strips require digital data.

What happens if data direction is reversed?

The strip normally will not respond because data must enter the designated input end.
