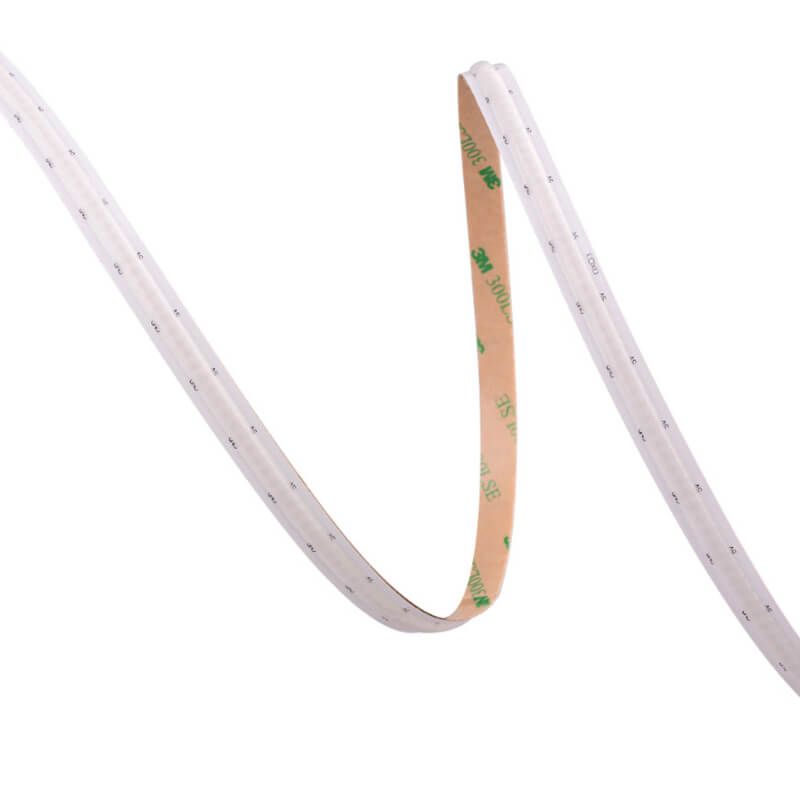

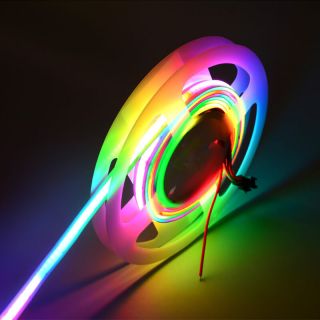

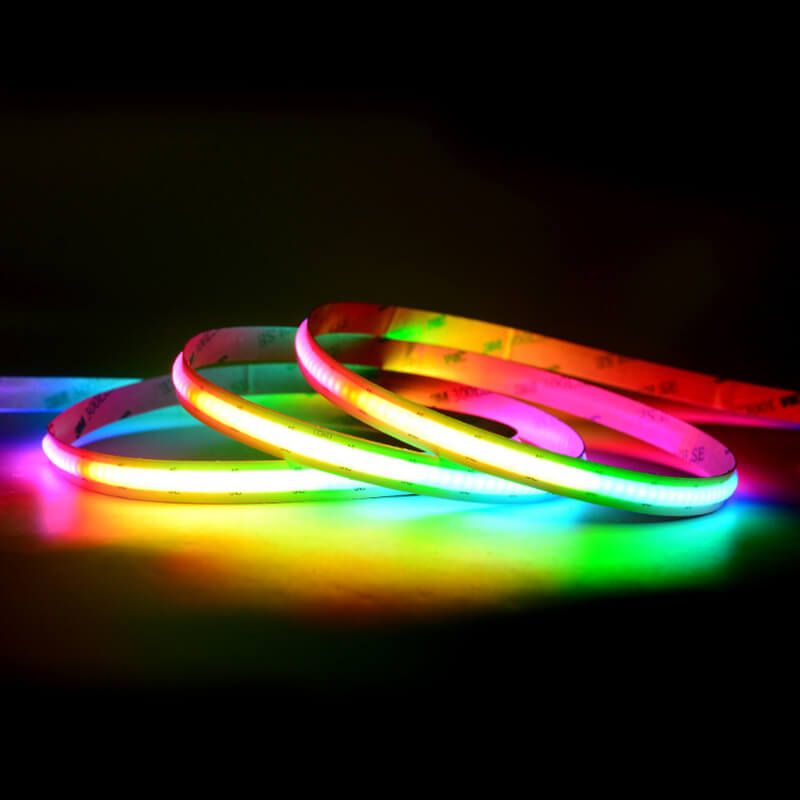

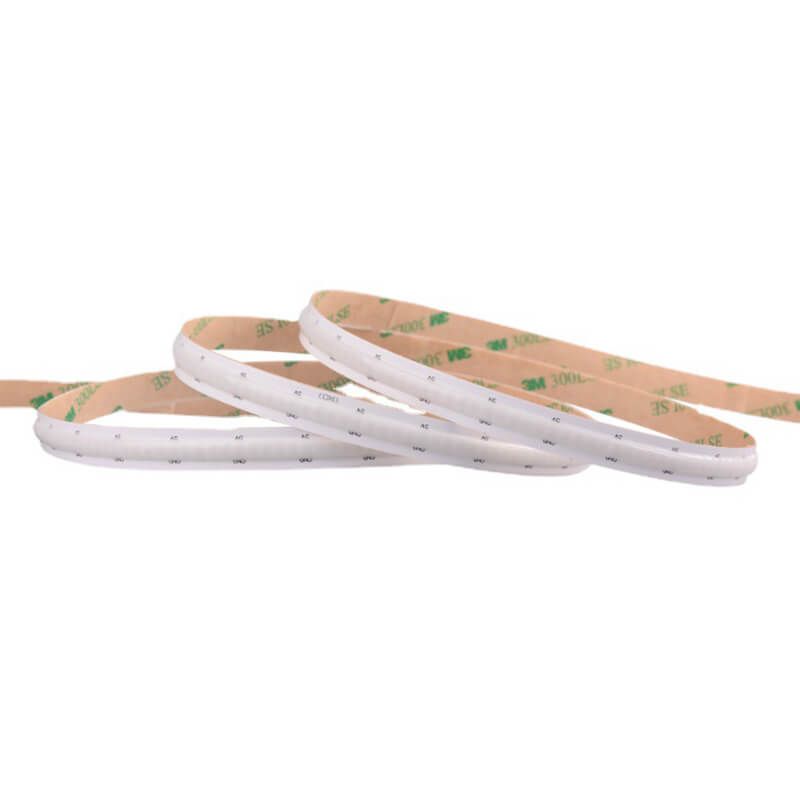

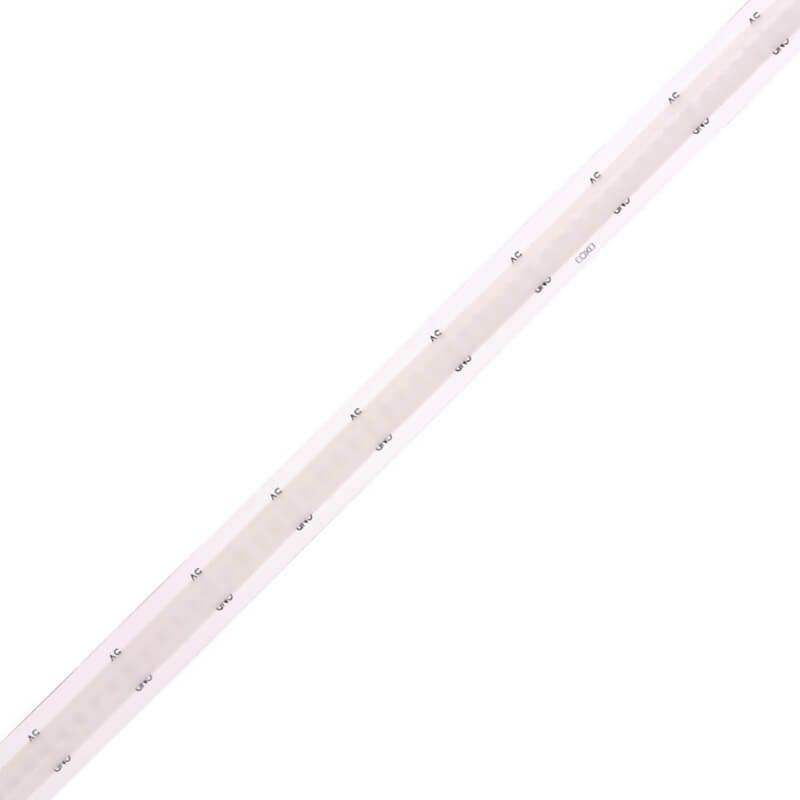

Addressable COB LED Strip 840LEDs/M 12W IP20 12MM

This 24V addressable COB strip combines a dense 840 LEDs/m light surface with programmable RGB+IC control. Its 12mm PCB, 12W/m rating and 180-degree emitting angle suit smooth dynamic effects in dry indoor linear-lighting details.

Project applications

Use it for hospitality features, bars, stage scenery, display fixtures and architectural accents requiring chase, gradient or segmented effects. Approve the appearance in the intended profile because diffusion, viewing distance and surface finish affect uniformity.

Control and power planning

• Confirm IC protocol and controller compatibility.
• Set the correct pixel or segment count.
• Follow the PCB data direction.
• Size the 24V supply from the complete 12W/m load.
• Add power injection according to voltage-drop calculations.
• Use only in dry areas unless a protected version is specified.

“840 LEDs/m” describes chip density, not the number of independently controlled pixels. Confirm the control segment definition before programming.

Compare our COB strip range, learn about addressable strip control, or review stage lighting applications.

FAQ

Is every LED independently addressable?

Not necessarily. The electrical design may control groups; verify the segment specification.

Can IP20 be used in a bar counter?

Only where it remains dry. Spill-prone locations need a suitable protected construction.

Compare more COB LED strip options, read our guide to COB and SMD light uniformity, or discuss custom COB strip specifications.
