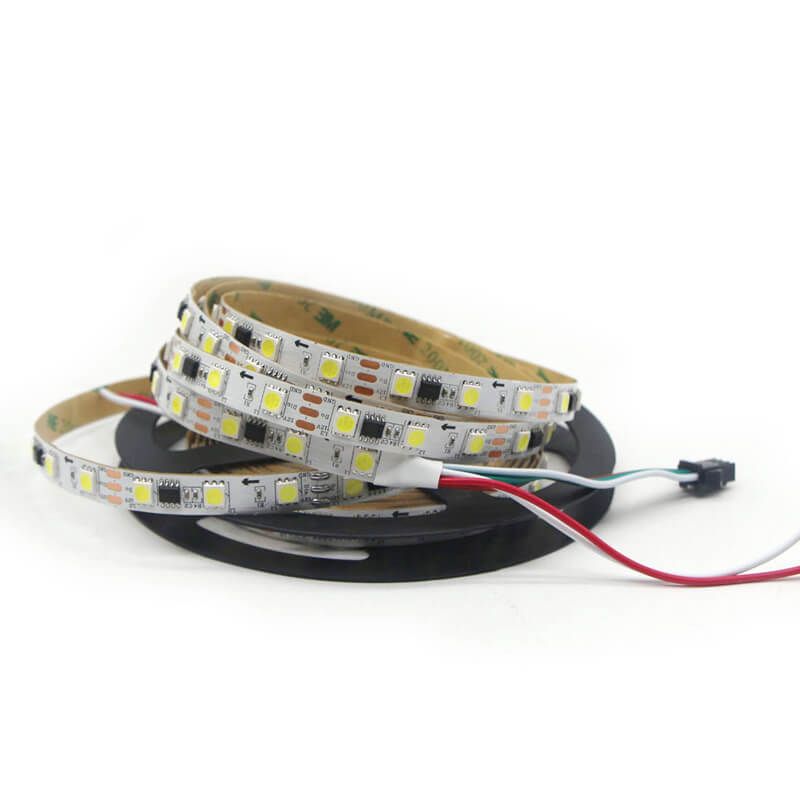

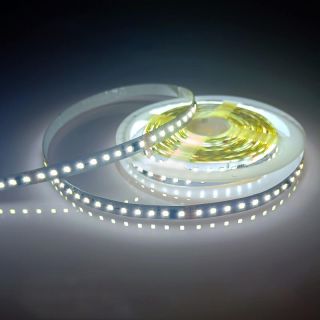

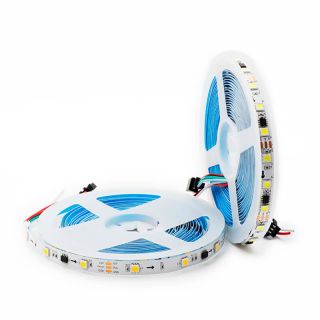

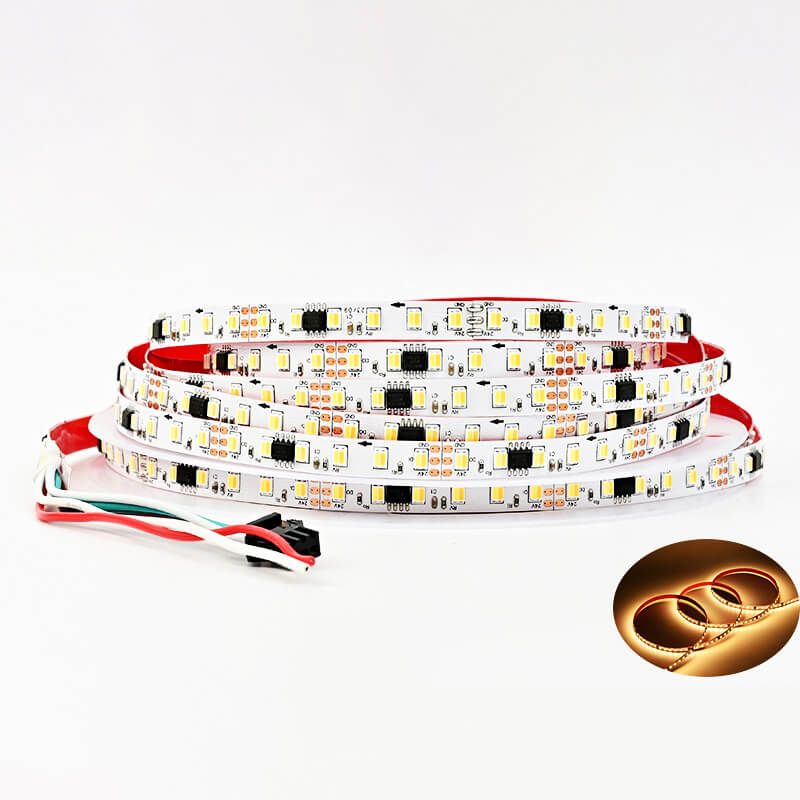

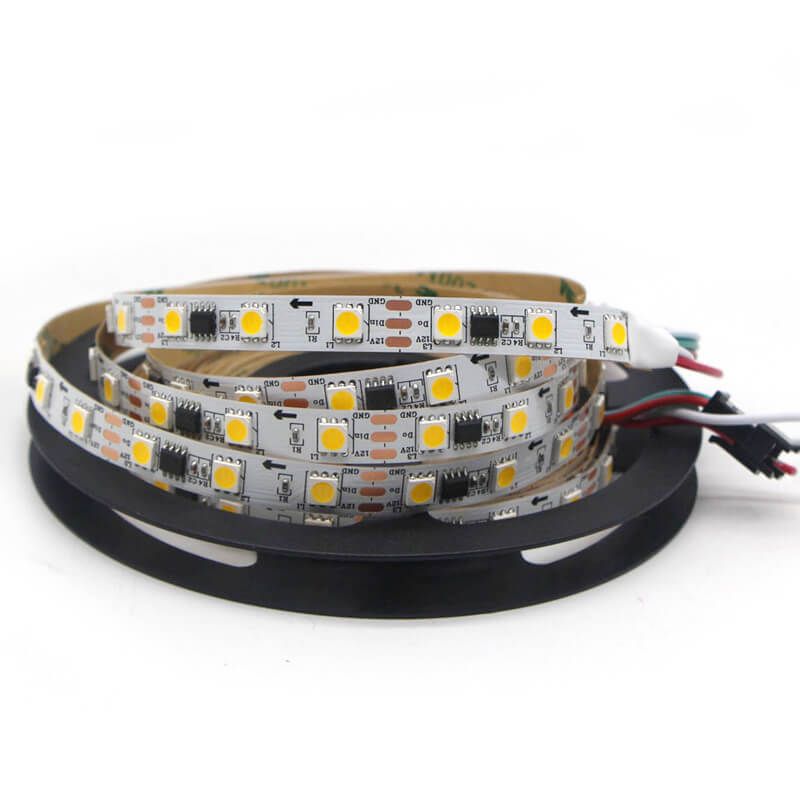

WS2811 Single-White Chasing LED Strip Light for Dynamic Lighting

Single-White Chasing

Looking for smooth, clean running effects without the complexity of full RGB strips? Our WS2811 Single-White Chasing LED Strip Light delivers a bright, pure white output combined with pixel-style movement. Each segment is individually controlled through the WS2811 IC, allowing flowing, scanning, and chasing effects that stand out—simple, elegant, and reliable.

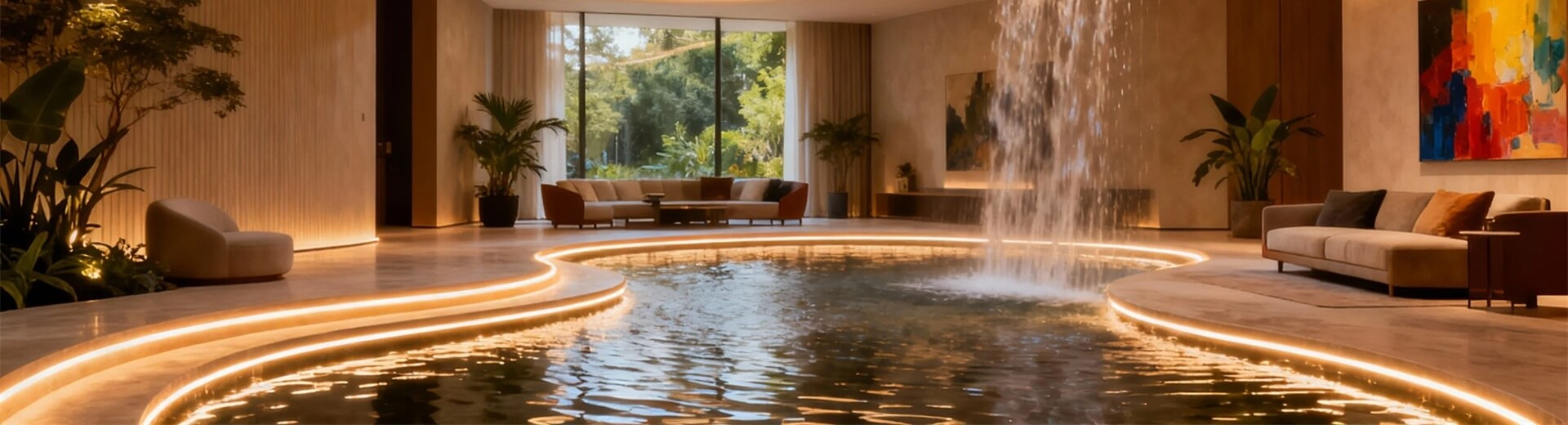

Perfect for signage outlines, architectural accents, shop decoration, stage lighting, or any project that needs motion but prefers a clean white tone instead of colors.

Built with stable ICs, consistent brightness, and flexible PCB options, this strip is designed for long-term, continuous operation in both indoor and outdoor setups.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Item	Specification
LED Type	SMD 2835 / 5050 (Single White)
IC Type	WS2811 (External IC)
Control Method	Pixel segment control (3 LEDs per pixel or 6 LEDs per pixel, optional)
Voltage	DC 5V / 12V / 24V (optional)
Power Consumption	8–14W/m (depends on LED density)
LED Density	30 / 48 / 60 / 96 LEDs per meter (optional)
Light Color	2200K / 2700K / 3000K / 4000K / 6000K (single white)
Chasing Effect	Running, scanning, breathing, wave, custom scenes
PCB Width	8mm / 10mm / 12mm (depending on density & voltage)
PCB Type	Single-sided copper / double-layer copper
Cutting Unit	Pixel-based (usually 3 LEDs or 6 LEDs per cut)
Beam Angle	120°
Waterproof Rating	IP20 / IP65 / IP67 / IP68
Operating Temperature	-20°C ~ +50°C
Lifetime	30,000–50,000 hours
Certification	CE, RoHS (optional: UL, ETL if you need)
Compatible Controllers	WS2811/WS2812 controllers, SPI controllers, DMX (via decoder)
