The difference between 5050 lamp beads and 3030 lamp beads?

What is the difference between 5050 lamp beads and 3030 lamp beads?
1. Package size is different.
(1) 5050 refers to the LED beads with length and width of 5.0*5.0mm.
(2) 3030 refers to the 3.0*3.0mm LED beads.

2. Different colors.
(1) 3030 lamp beads just belong to monochrome.
(2) 5050 lamp beads can be dual-color, a light dual-color dual-use, good color mixing.

3. Power is different.
(1) 3030 lamp beads power is 0.2-1W.
(2) 5050 lamp beads power for the conventional also in 0.2W-0.5W.

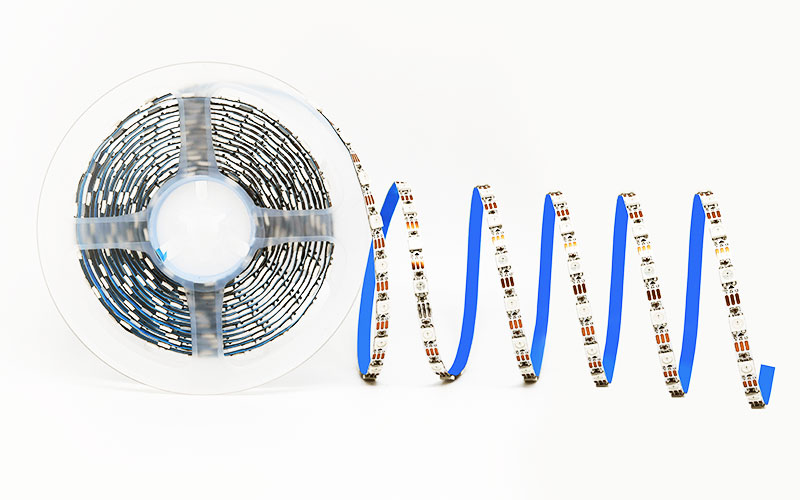

A. 5050 lamp beads is a kind of LED lamp beads, 5050 is named after the product size, RGB refers to the red, green and blue light three primary colors.

B. 5050 lamp beads main features are.

1, low voltage drive, environmental protection and energy saving.
2, small size, easy to install.
3, high brightness, large scattering angle, good consistency.

C. Specific parameters.
1. Color temperature: 2870-3220K; 3985-4503K; 5665-6530K.
2. Apparent finger: 70-75Ra.
3. Luminous efficacy: 105-130lm/w.
4. Luminous flux: 90-100lm;100-110lm;110-120lm.

Main features and advantages of the product
1. High brightness: the brightness of a single LED chip bead can be as high as: 1200-1500MCD
2. Low attenuation: the company uses imported Z high-quality materials, coupled with advanced packaging technology, the product attenuation can be controlled within two thousandths.
3. Good consistency of light mixing
4. Long life span: the product uses high quality material packaging, good heat dissipation, the product life span can be more than 50000 hours.
5. Z high cost performance: the product brightness Z high, quality Z good, belongs to the representative of high-end products, but the price is comparable to the mid-range products, is cost-effective Z high products.
6. the use of red copper bracket (low-end lamp beads on the market are iron bracket), silver plating layer 40 mai, 99.99% pure gold wire welding

The main application of the product

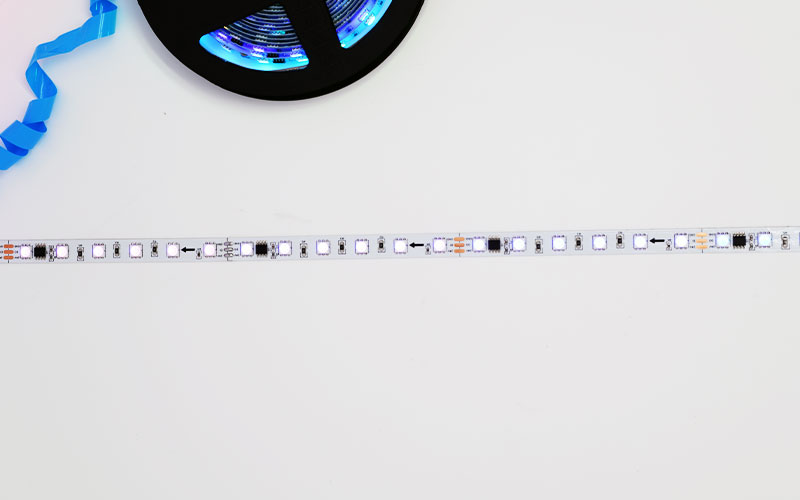

Stage lights, indoor and outdoor decorative light bar, soft light bar, hard light bar, illumination light bar, etc., the application field is very wide first, without sk6812 is the conventional 5050 lamp beads, in fact, rgb lamp beads to achieve the effect of running lights, etc., is the same to add the ic controller, but without the ic need to paste the external ic controller on the circuit board.

What are the benefits of building the ic controller into the bead?
1. each lamp bead are built-in sk6812 controller, to achieve pixel-level control
2. sk6812 package to the internal lamp beads can prevent the ic controller moisture damage
3. built-in sk6812 can avoid the light bar in the bending, twisting the ic pins and circuit board detachment caused by failure
4. ic controller built into the beads inside the finished circuit board is more simple, concise, thus reducing the failure rate, improve reliability.
5. reduce the volume of the finished product, so that sk6812 lamp beads more widely used.
6. electrical performance is more, strong anti-interference and other characteristics.

LED SMD 5050 indicates the package size, what is the unit?
5050led package size: 5mm*5mm*1.6mm.
Light intensity can reach 5500-6000MCD (pure white light, warm light of a slightly smaller).
His operating voltage and ordinary led the same, only 3.2-3.4V, the current is the same 60MA.
Because of the 5050 SMD led volume is relatively small, the workmanship is relatively fine, so manual welding is not very convenient, but not that can not be welded, its welding temperature should be controlled within 250 degrees, otherwise it will burn the more expensive 5050 SMD led.

As 5050 SMD led parameters determine his must be a favorite led, so he is often used in high-end civil energy-saving lamps, automotive instrument panels, led strip, cell phone backlight and keypad, instrumentation backlight and require small volume LED products, LED backlight, switches and signs of the plane backlight, caller ID, flashing lights, automotive, audio, indoor display, lighting fixtures market. Indicates the appearance size is 0.5mm*0.5mm

The actual size is 5.3mm*5.0mm5050 means the size is 5.0mm*5.0mm

3528 is the size of 3.5mm*2.8mm.
