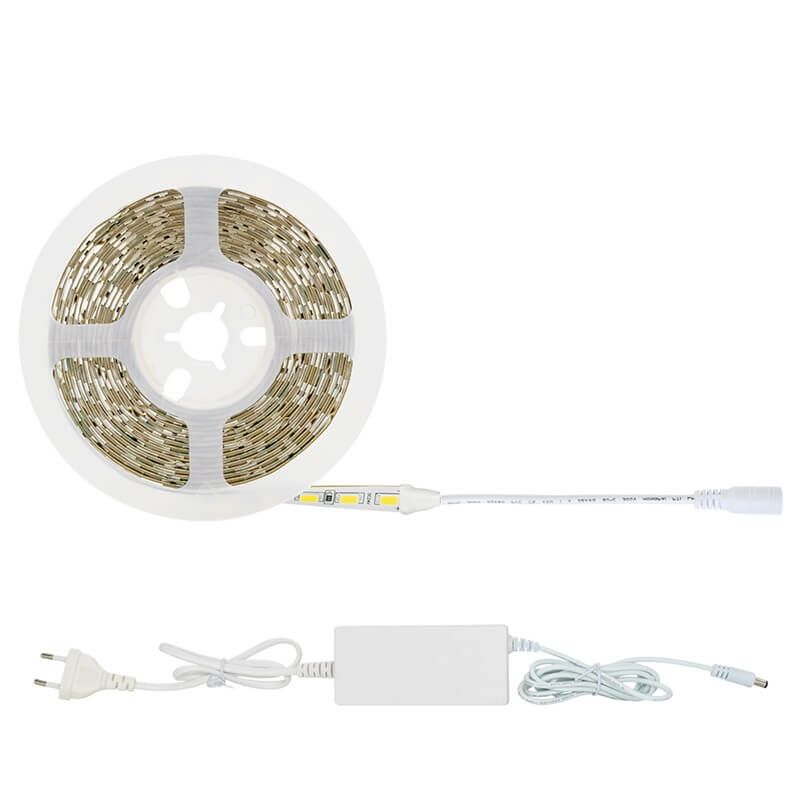

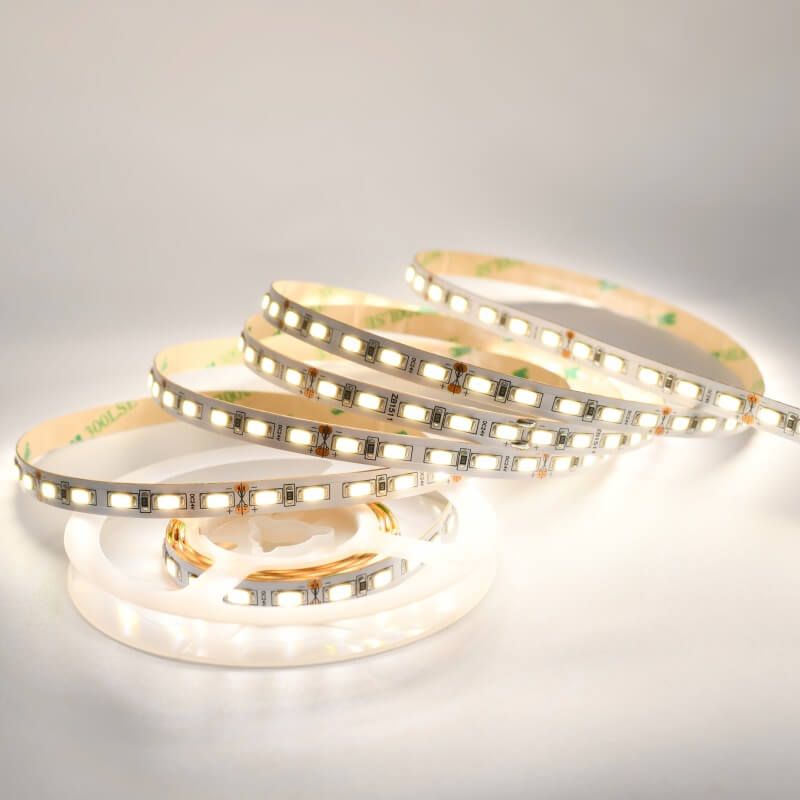

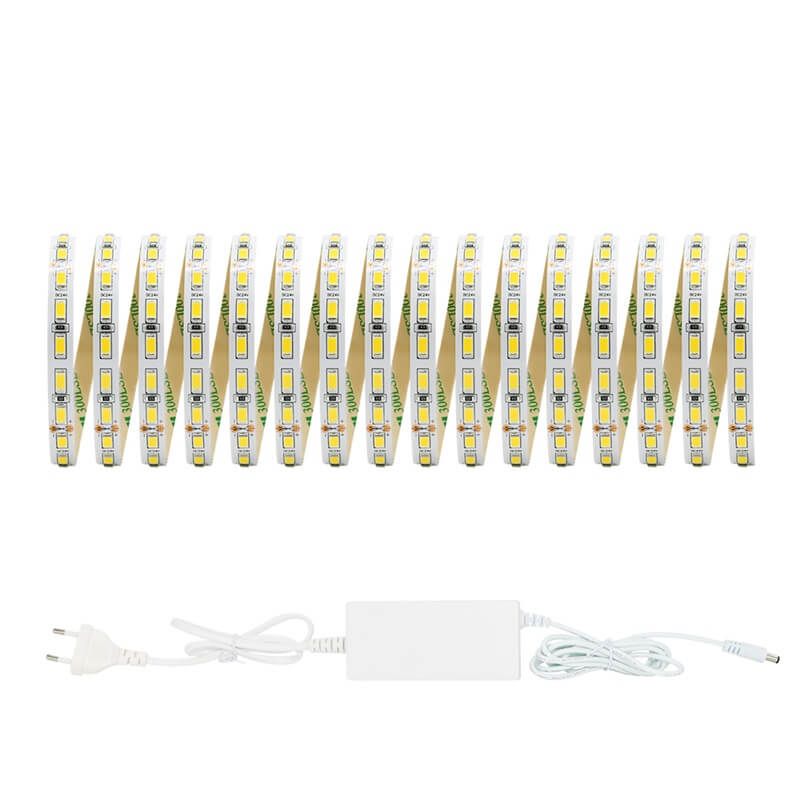

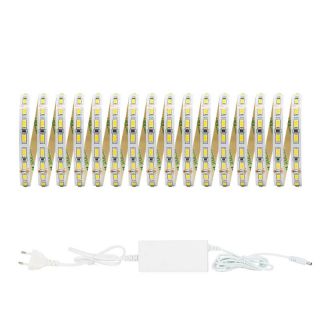

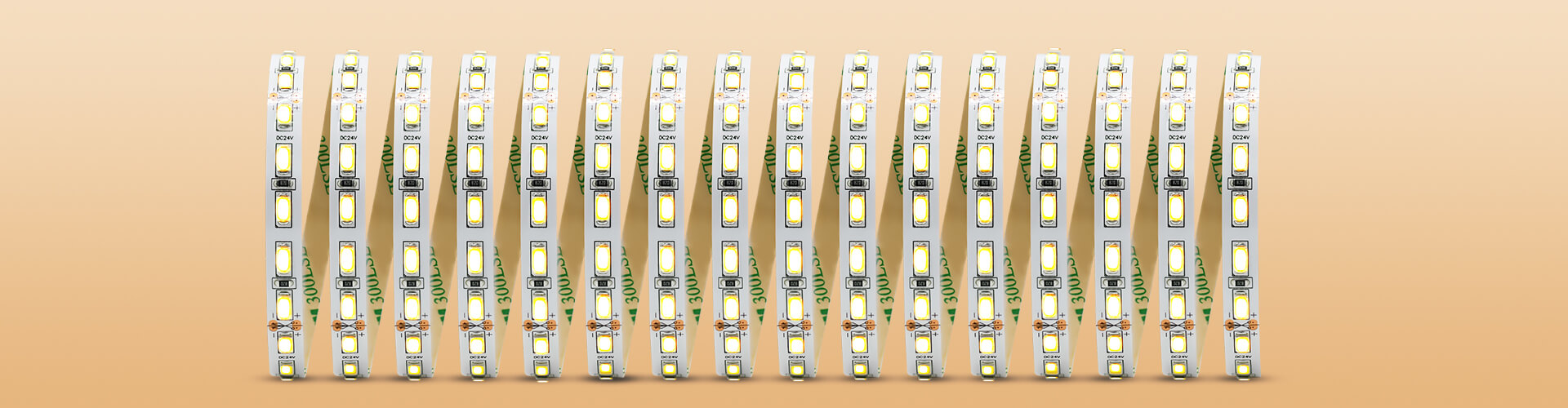

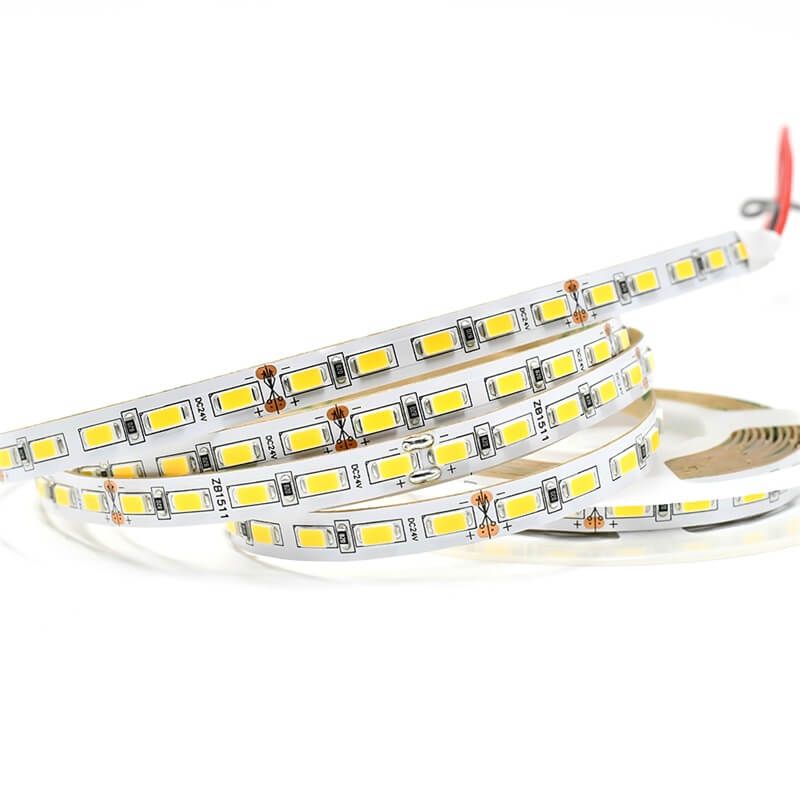

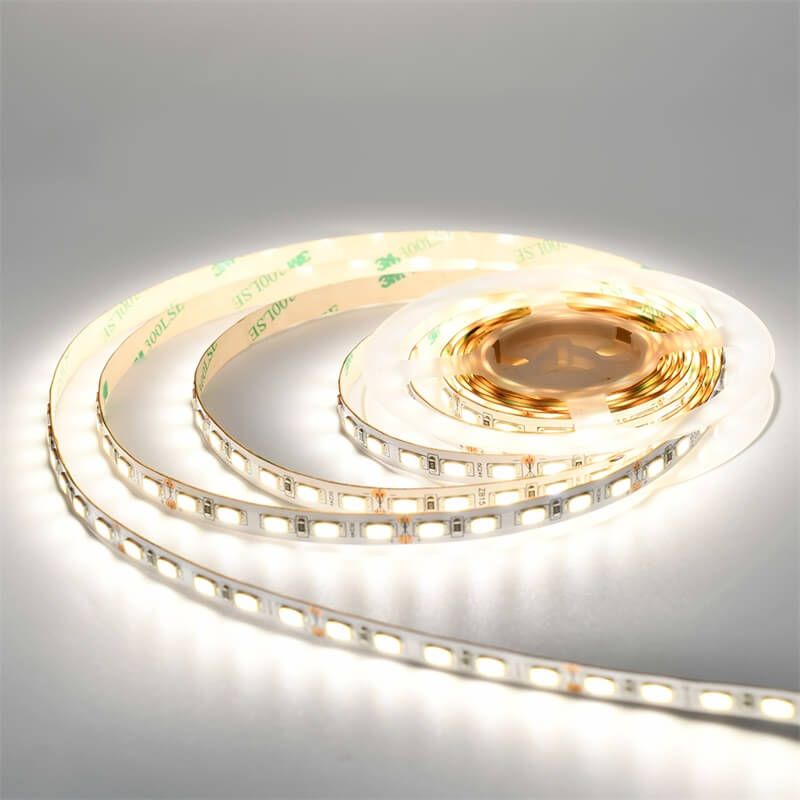

SMD5730 LED Strip 90LEDs/m DC24V (Ultra High Brightness)

Low power, high brightness, high luminous efficacy

Product Model SMD5730
Input voltage 24V DC
Beam angle 120°
CCT 2700K, 3000K, 4000K, 6000K, customized
CRI 80+/90+
Power 26.4W/m (8.05W/ft)
Brightness 2410~2635lm/m (735~803lm/ft)
Standard length 5 meters (16.4ft) per roll
FPC width 10mm (0.39in)
Cutting unit 50mm/unit (0.164t/unit)
IP options IP20/IP55/IP65/IP66/IP67/IP68

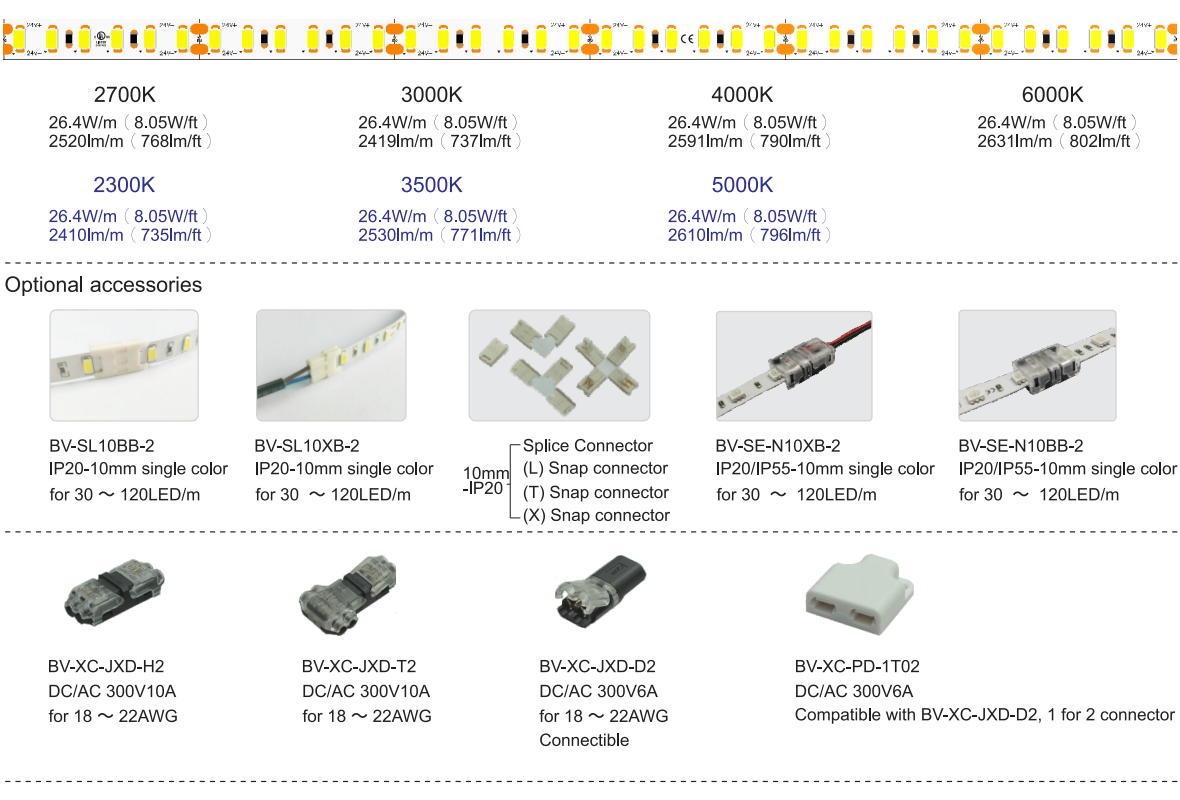

26.4w/m (8.05w/ft) 2700K-2520LM/m (768LM/ft); 3000K-2419LM/m (737LM/ft); 4000K-2591LM/m (790LM/ft); 6000K-2631LM/m (802LM/ft);
26.4w/m (8.05w/ft) 2300K-2410LM/m (735LM/ft); 3500K-2530LM/m (771LM/ft); 5000K-2610LM/m (796LM/ft);
  • Description
  • Examples
  • FAQ
  • Why Choose Us

S5730L120V24 10mm width LED tape light helps to set up an energy saving, flexible and multifunctional commercial and home lighting, the architecture quality LED strip lights with the features of low power, high brightness, high light efficacy, high CRI and high waterproof, various of connection accessories and dimming control systems are for choice.



  • LED tape light (LED ribbon light, LED strip light): highlight SMD5730 + FPC

  • LED quantity 120 LEDs per meter

  • Brightness 2410~2635lm/m (735~803lm/ft)

  • Light efficacy is up to 100lm/W

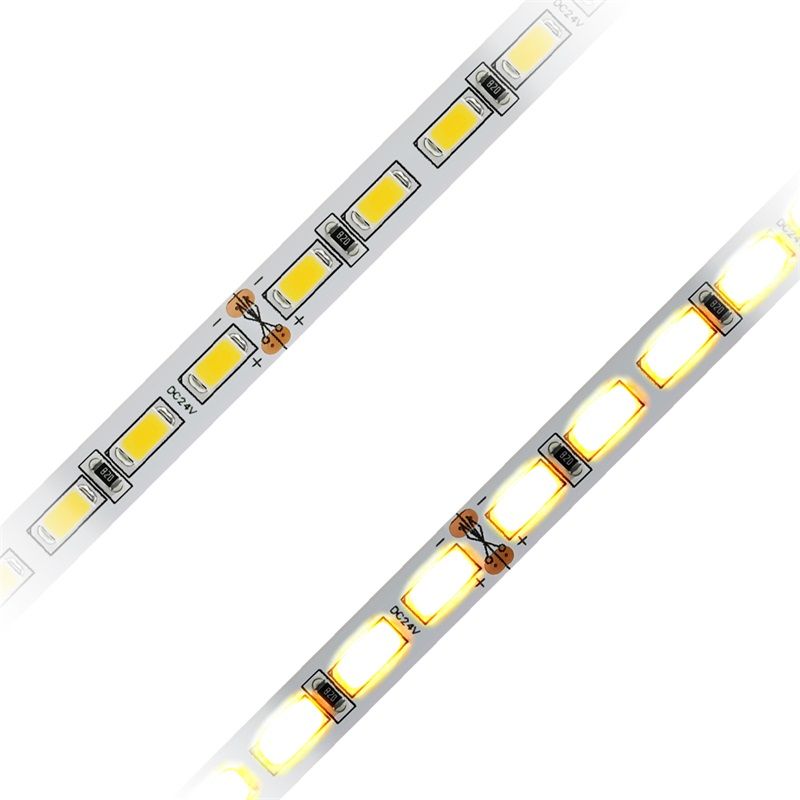

  • Precise cutting 50mm/unit (0.164t/unit)

  • Waterproof: IP20~IP68

  • Working time≥50000H

  • Suitable for various dimming controllers




Welcome to consult customer service customization
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
LED Type SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …
Voltage 3V 5V 9V 12V 24V 36V 48V 72V 110V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …
Power(w/m) 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …


Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.


The display index of > 90 is adopted to make the light emitted more like natural light and restore the original light color


ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.


Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.

ZBL Lighting Team


Since its establishment to participate in a number of exhibitions

we exhibition

Swift Packaging and Quick Delivery!

We understand the value of your time, so our dedicated team is committed to fast packaging and prompt delivery.

led strip light shipping method

led strip light shipping

2 (1)

What is SMD5730?
SMD LED module (Surface Mount Device Light Emitting Diode Module) is a type of LED module that uses surface mount technology (SMT) to mount the LED chip on a printed circuit board (PCB). It is a stand-alone surface mount LED device designed for stand-alone operation or for insertion into compatible units.The types of SMD LED modules are distinguished by the size of the LED package. SMD LED 5730 identifies its package size as 5.7 mm * 3.0 mm.


Q: What is an SMD5730 LED strip?
A: An SMD5730 LED strip is a type of flexible lighting strip that uses SMD5730 LED chips as the light source. It offers bright and energy-efficient lighting with a wide beam angle.


Q: What are the advantages of SMD5730 LED strips?
A: SMD5730 LED strips have several advantages, including high brightness, low power consumption, long lifespan, and easy installation. They are also known for their excellent heat dissipation and reliability.


Q: Can SMD5730 LED strips be cut to a specific length?
A: Yes, SMD5730 LED strips are typically designed to be easily cut at designated cut points. This allows for customization and flexibility in installation to fit different spaces and lighting requirements.


Q: Are SMD5730 LED strips dimmable?
A: Yes, many SMD5730 LED strips are compatible with dimmer switches, allowing you to adjust the brightness according to your preference. However, it's important to check the specifications of the specific LED strip and ensure compatibility with the dimming system.


Q: What color options are available for SMD5730 LED strips?
A: SMD5730 LED strips are available in a variety of color options, including warm white, cool white, and RGB (red, green, blue) color-changing options. This allows for versatile lighting designs and the ability to create different atmospheres.


Q: Where can SMD5730 LED strips be used?

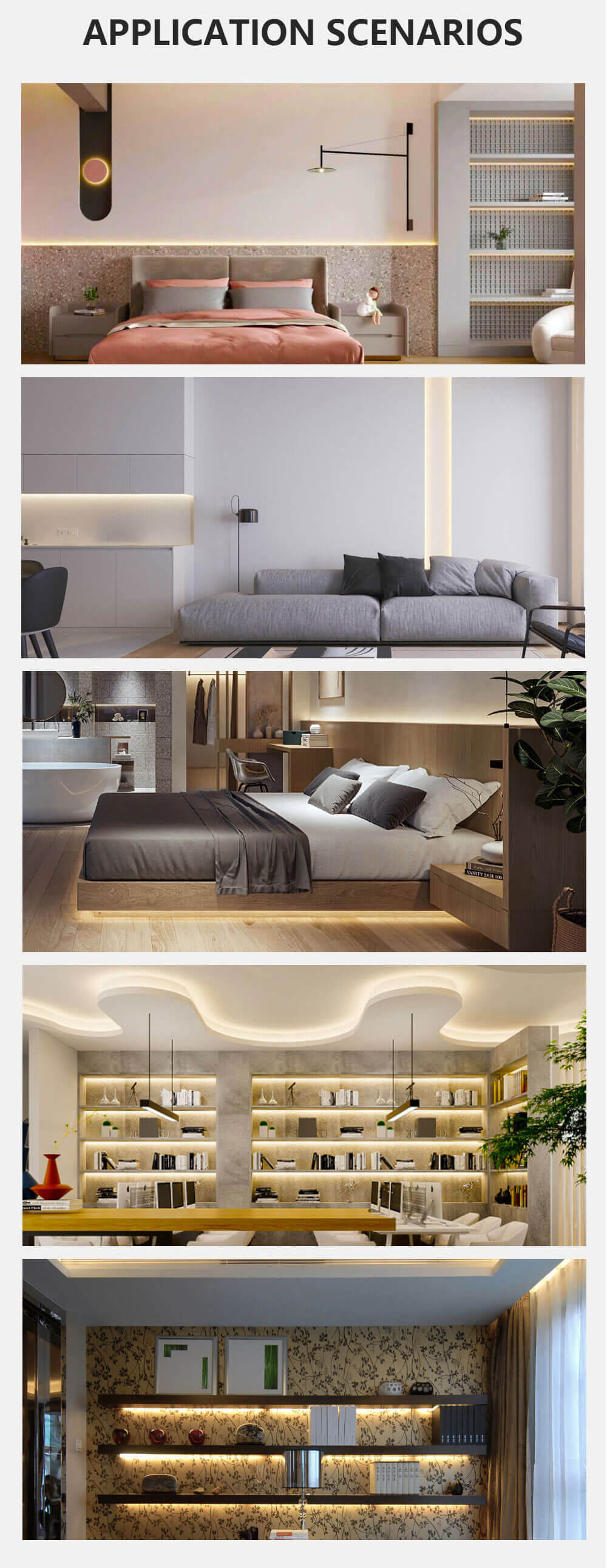

A: SMD5730 LED strips are widely used in various applications, including home lighting, accent lighting, commercial spaces, signage, and decorative lighting. They can be installed under cabinets, along ceilings, in coves, or behind furniture to create stunning lighting effects.


Q: Are SMD5730 LED strips waterproof?
A: SMD5730 LED strips are available in both waterproof and non-waterproof versions. Waterproof strips are suitable for outdoor and damp environments, while non-waterproof strips are more suitable for indoor use.


Q: How long do SMD5730 LED strips last?
A: The lifespan of SMD5730 LED strips can vary depending on usage and quality. However, high-quality LED strips can last up to 50,000 hours or more, providing long-term and reliable lighting solutions.


Q: Can SMD5730 LED strips be connected together?
A: Yes, SMD5730 LED strips usually have connection options, such as soldering or using connectors, allowing you to connect multiple strips together to achieve longer lengths or complex lighting configurations.
