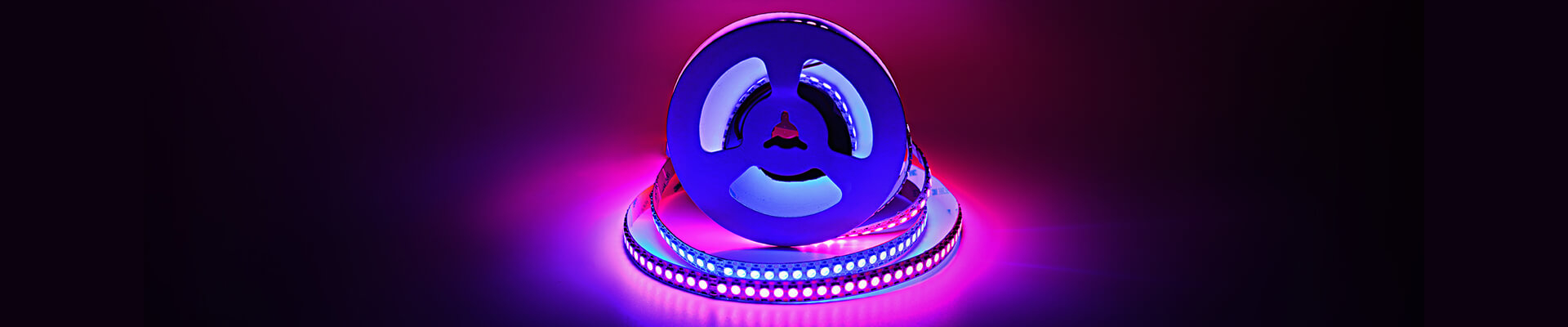

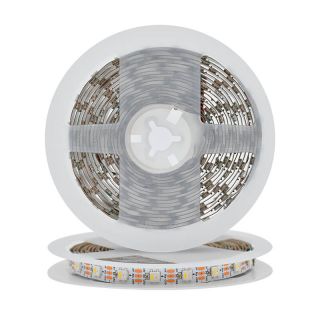

SK6812 RGBW LED Strip 4 in 1 Addressable 60LEDs/m DC5V

SK6812 RGBW LED Strip 4 in 1 Addressable 60LEDs/m DC5V

Customizable,30LED/60LED/144LEDs/M

Introducing the SK6812RGBW LED Strip by ZBL Lighting, a cutting-edge lighting solution designed to meet your illumination needs. Crafted with the latest technology and high-quality materials, this LED strip offers outstanding performance and a variety of customization options.



Impressive Performance:

The SK6812RGBW LED strip features SMD5050 LED sources with integrated Sanan chips, delivering bright and uniform lighting. Each LED consumes only 0.24 watts, ensuring energy efficiency. You can select from different quantities of LEDs and ICs, including 30 LEDs, 60 LEDs, or 144 LEDs per meter, catering to various brightness and visual effects requirements.



Versatile Color Choices:

Our SK6812 LED strip offers two color temperature options, including RGBW (6000-6500K) and RGBWW (2700-3000K). This means you can choose between warm or cool white light, depending on the occasion and personal preferences.



Reliable Waterproof Design:

This LED strip comes with multiple waterproof ratings, including IP20 (non-waterproof), IP65 (drip-proof), and IP67 (encased), making it suitable for both indoor and outdoor applications.



Easy Installation:

The SK6812 LED strip is equipped with red-black power wires and 3-pin connector wires, making installation simple and flexible. The double-sided FPC board is available in white or black, providing versatility to suit various design needs.



Wide Operating Temperature Range:

This LED strip operates effectively across a wide temperature range, from -40°C to 60°C, and can be stored in temperatures ranging from -50°C to 80°C. This ensures durability and stability.



The SK6812RGBW LED Strip is an innovative product from ZBL Lighting, offering exceptional performance, various customization options, and a dependable waterproof design suitable for a wide range of indoor and outdoor lighting projects. Whether it's for home illumination, commercial displays, or decorative projects, this LED strip is the ideal choice for your lighting solutions.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Model SK6812 RGBW 4 in 1 LED Strip 60LEDs/m DC5V
Power 9W/18W/43.2W/m
CRI 80
Service life 50000h
Board width 10mm/12mm
Color temperature RGBW
Whether dimming Yes
Luminous angle 120°
Maximum run length Maximum run length up to 16 ft (5 meters)
Working voltage DC5V
Thickness 200~400μm
Protection grade IP20,IP65,IP67
Warranty time 5 year
Tape 3M 9495
Operating temperature -40°C to 60°C
Certification UL,CE,RoHS

Product Specifications Details

Model No. LED Type LED Qty (pcs/m) CCT Work Voltage Power Lumen (Lm/m) CRI
5050-60LED-RGB3000K-V12 5050 60 RGB+3000K 12V DC 19.6W/M 2000-2400MCD & 500Lm/m (White) 80+
5050-60LED-RGB4000K-V12 5050 60 RGB+4000K 12V DC 19.6W/M 80+
5050-60LED-RGB6000K-V12 5050 60 RGB+6000K 12V DC 19.6W/M 80+
5050-60LED-RGB10000K-V12 5050 60 RGB+10000K 12V DC 19.6W/M /
5050-60LED-RGB1900K-V12 5050 60 RGB+1900K 12V DC 19.6W/M /
5050-60LED-RGB3000K-V24 5050 60 RGB+3000K 24V DC 19.6W/M 80+
5050-60LED-RGB4000K-V24 5050 60 RGB+4000K 24V DC 19.6W/M 80+
5050-60LED-RGB6000K-V24 5050 60 RGB+6000K 24V DC 19.6W/M 80+
5050-60LED-RGB10000K-V24 5050 60 RGB+10000K 24V DC 19.6W/M /
5050-60LED-RGB10000K-V24 5050 60 RGB+1900K 24V DC 19.6W/M /
