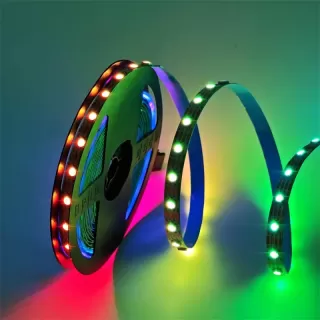

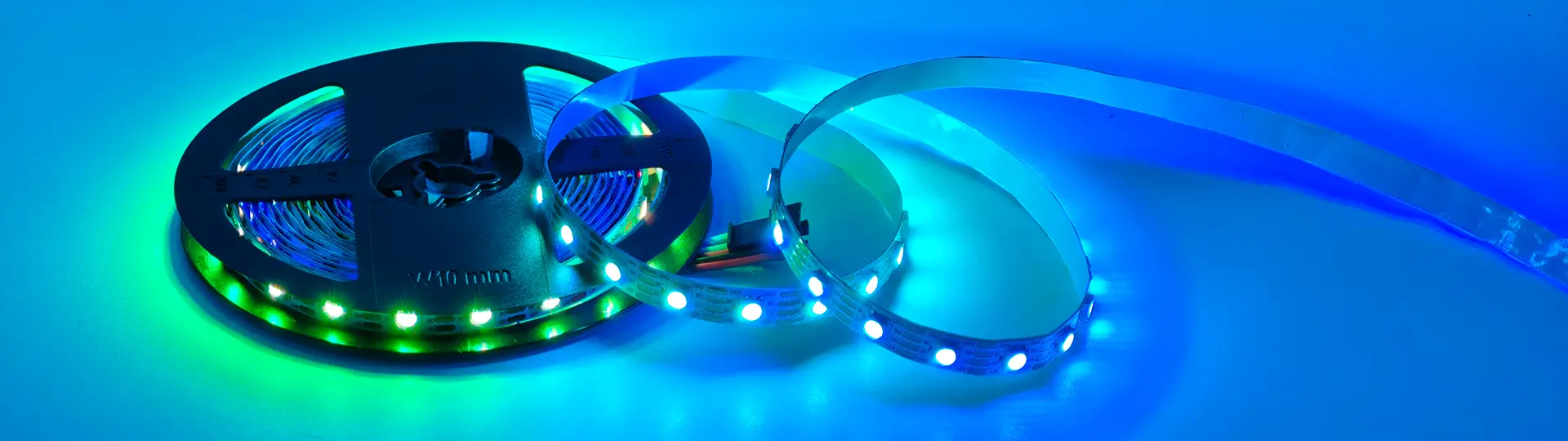

WS2813 RGB Addressable LED Strip Light | DC 5V Pixel LED Tape

WS2813 RGB Addressable LED Strip Light | DC 5V Pixel LED Tape

Dual-signal backup, no interruptions.

The WS2813 addressable LED strip features an SPI dual-signal backup design, overcoming the stability limitations of traditional single-line control. If a single LED fails or the signal is interrupted, the backup data channel automatically takes over, ensuring smooth and uninterrupted lighting across the entire strip, significantly reducing maintenance risks. It supports 24-bit true color display with fine color gradation and seamless dynamic effects, making it ideal for demanding commercial and landscape applications. The low-voltage design ensures safe operation and compatibility with mainstream SPI control systems, facilitating easy system integration and large-scale deployment. Whether for long-term outdoor use or high-intensity continuous operation, the WS2813 provides stable, reliable, and sustainable addressable lighting performance.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Item Specification
LED Driver Chip WS2813 (Built-in IC)
Control Method SPI Single-Line Data with Dual Signal Backup
Signal Feature Breakpoint continuity; single LED failure does not affect subsequent LEDs
Display Color RGB, 24-bit true color (8-bit per channel)
Gray Scale 256 levels per channel, 16.77 million colors
Operating Voltage DC 5V
Max Power per LED 0.3W (full white at maximum brightness)
Strip Power ~18W/m (60 LEDs/m, full white)

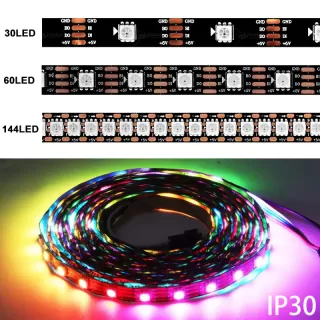

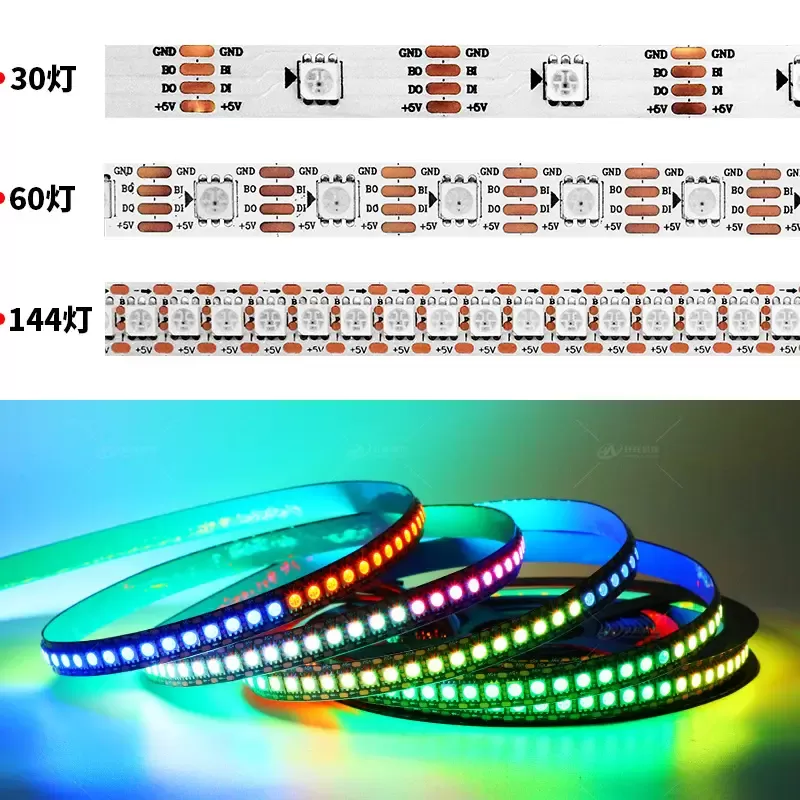

LED Density 30 / 60 / 144 LEDs per meter (selectable)
Data Interface DIN / DO
Refresh Rate ≥ 2 kHz
Data Transmission Speed 800 Kbps
Control Compatibility Arduino, ESP32, Raspberry Pi, SPI controllers
Programmability Individually addressable LEDs
LED Pitch 16.6 mm (for 60 LEDs/m)
PCB Width 10 mm (standard)
Cuttable Length Every LED (cuttable at marked points)
Operating Temperature -20°C ~ +60°C
Protection Rating IP20 / IP65 / IP67 (optional)
Lifetime ≥50,000 hours
