WS2812B Flexible LED Pixel Screen | Full Color Addressable Display Panel

WS2812B Flexible LED Pixel Screen | Full Color Addressable Display Panel

Support 16.8 million color adjustable

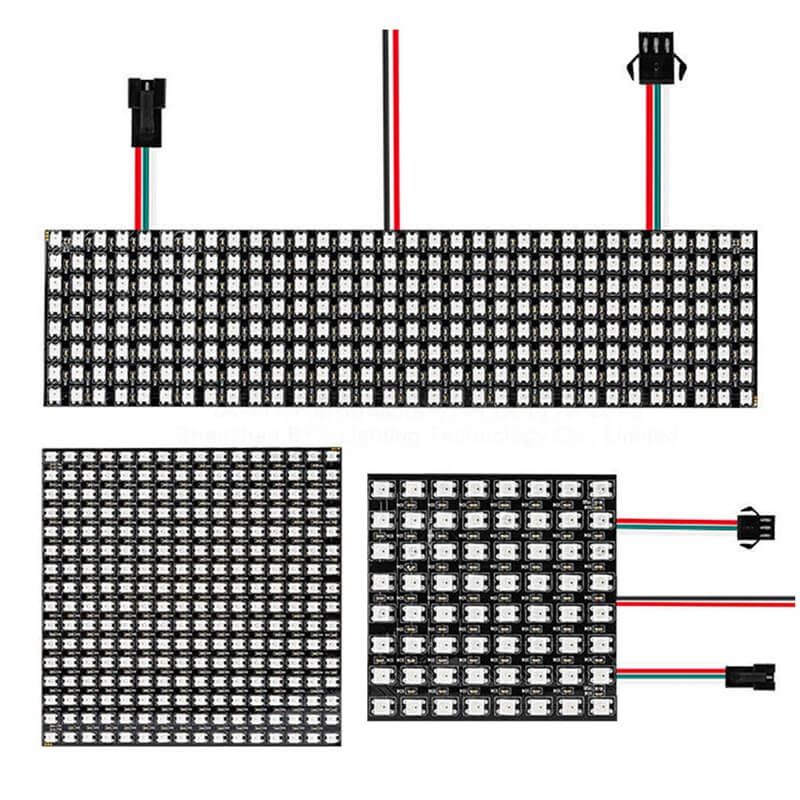

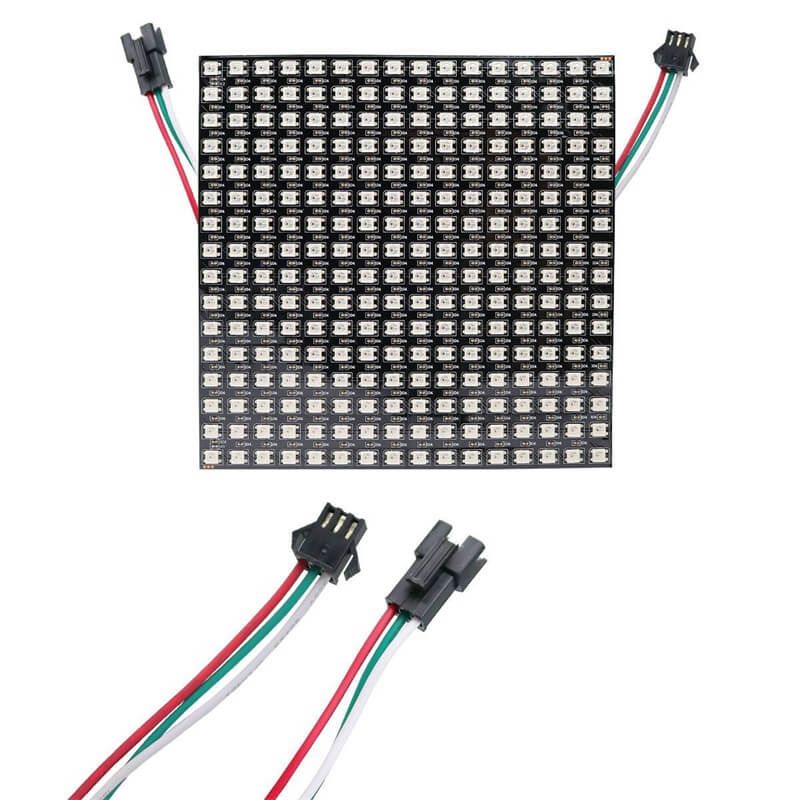

The WS2812B flexible full-color pixel screen is designed for professional visual and lighting applications that require stability, precision, and creative installation options. Each pixel integrates an RGB LED with a WS2812B IC, ensuring consistent color performance and reliable control through a single data line. The flexible PCB allows the panel to bend and adapt to curved or irregular surfaces, making it ideal for custom shapes and immersive environments. With high brightness, vivid color output, and smooth 256-level grayscale, it supports dynamic effects such as flowing patterns, chasing, and animation. Its modular architecture enables fast installation, easy expansion, and straightforward maintenance. Fully compatible with Artnet, Madrix, and other mainstream pixel control systems, this screen is well-suited for stage design, commercial displays, creative installations, and engineering-grade lighting projects.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Parameter Specification
Product Model WS2812B Flexible RGB Pixel Screen

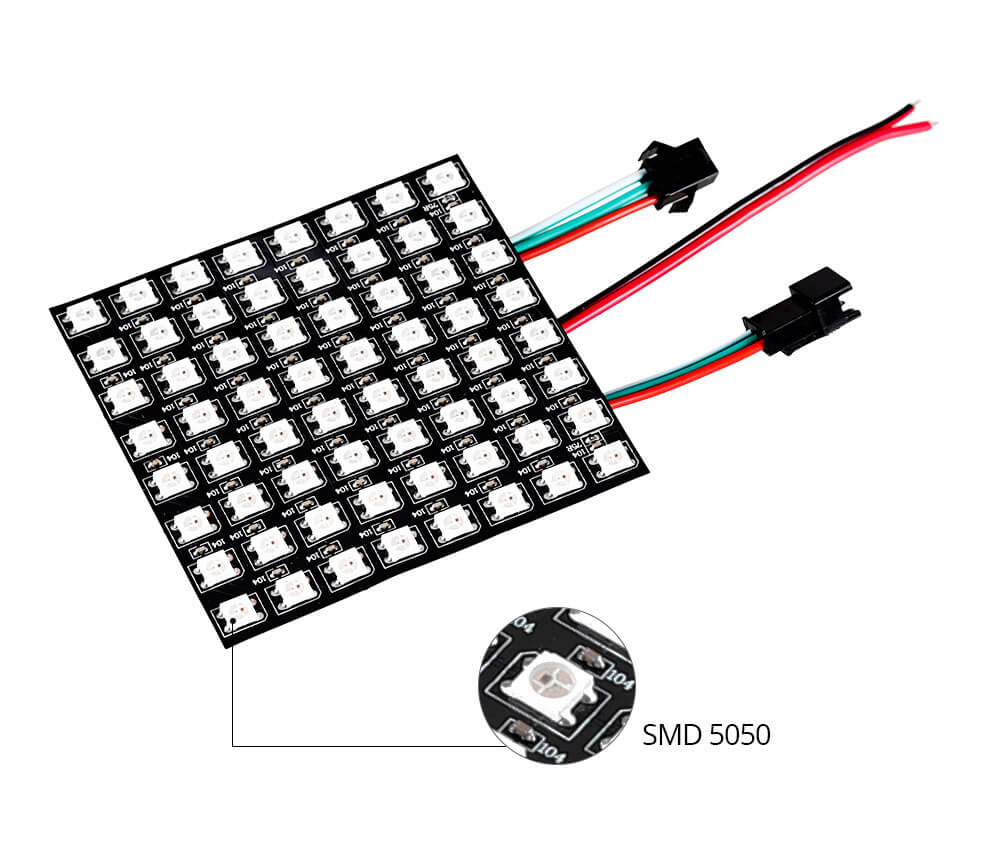

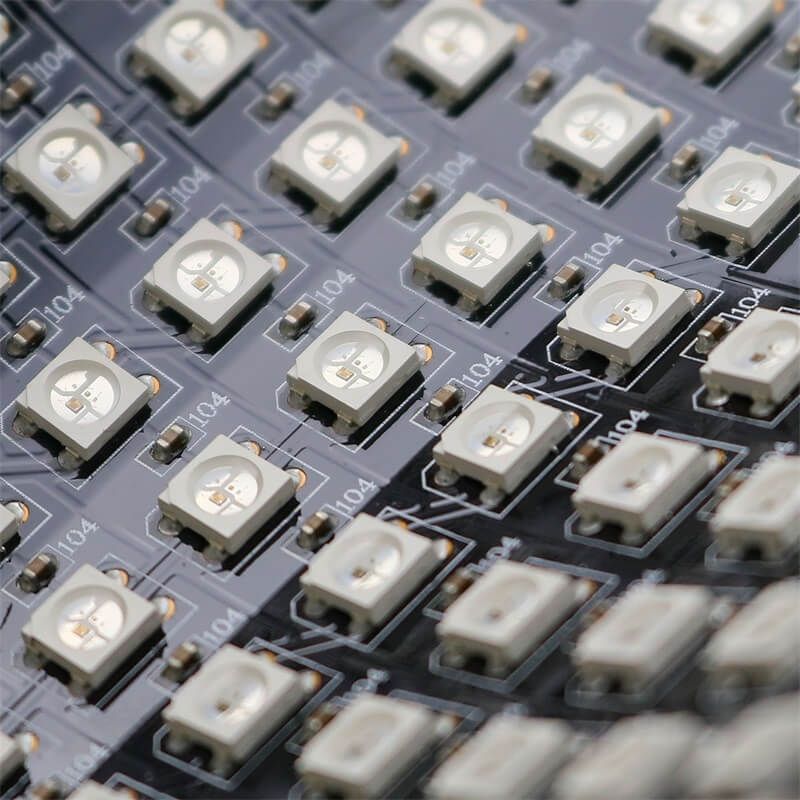

LED Type 5050 RGB with integrated WS2812B IC
Pixel Control Individually addressable (1 LED = 1 pixel)
Working Voltage DC5V
Data Protocol Single-wire NZR communication
Data Rate 800 Kbps
Pixel Pitch Options 10mm / 12mm / 16mm / 20mm (customizable)

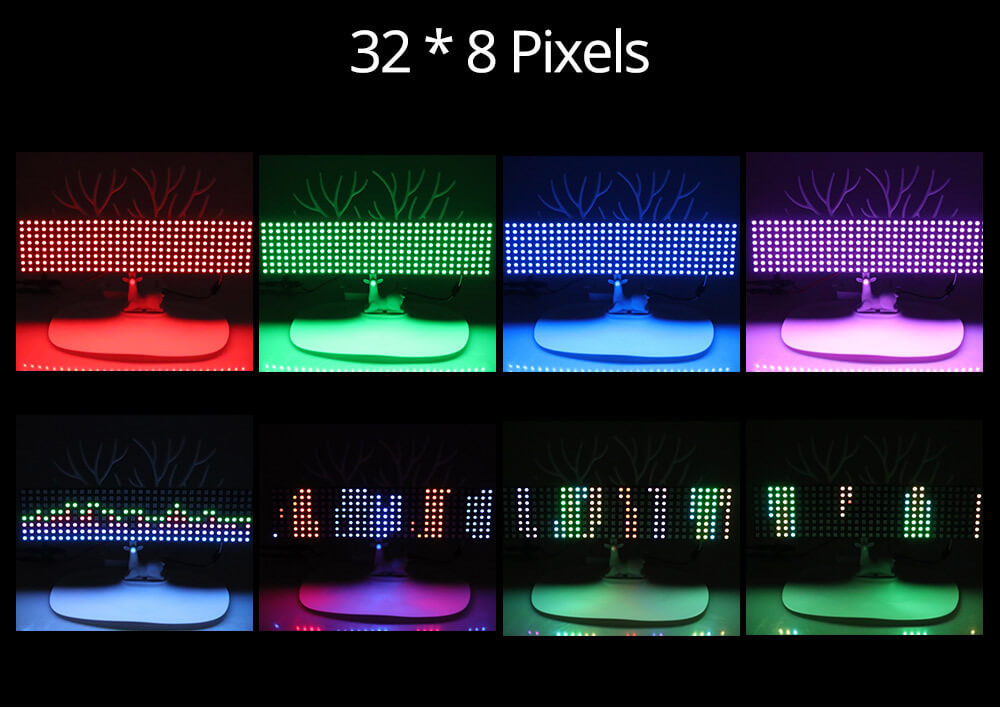

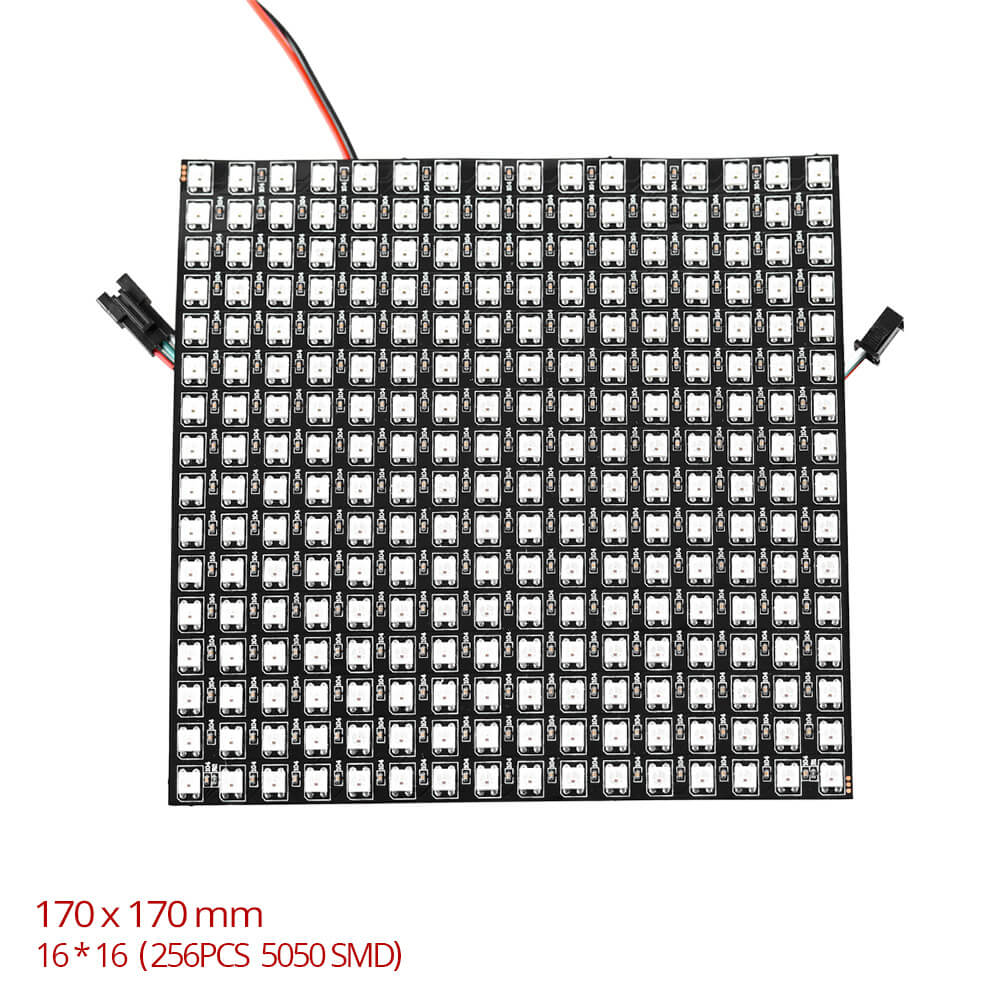

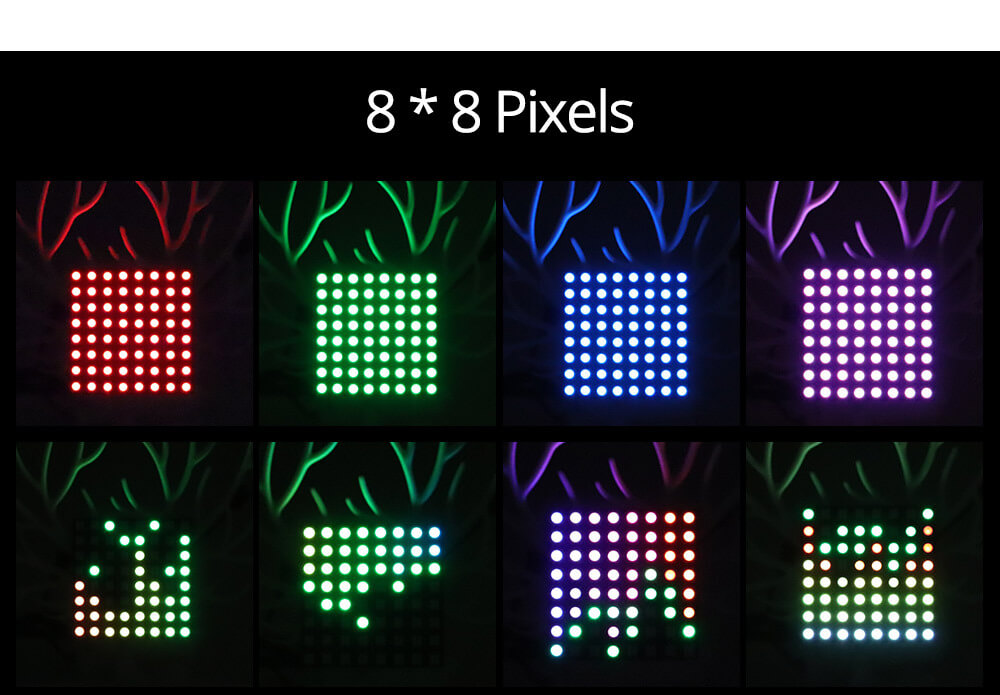

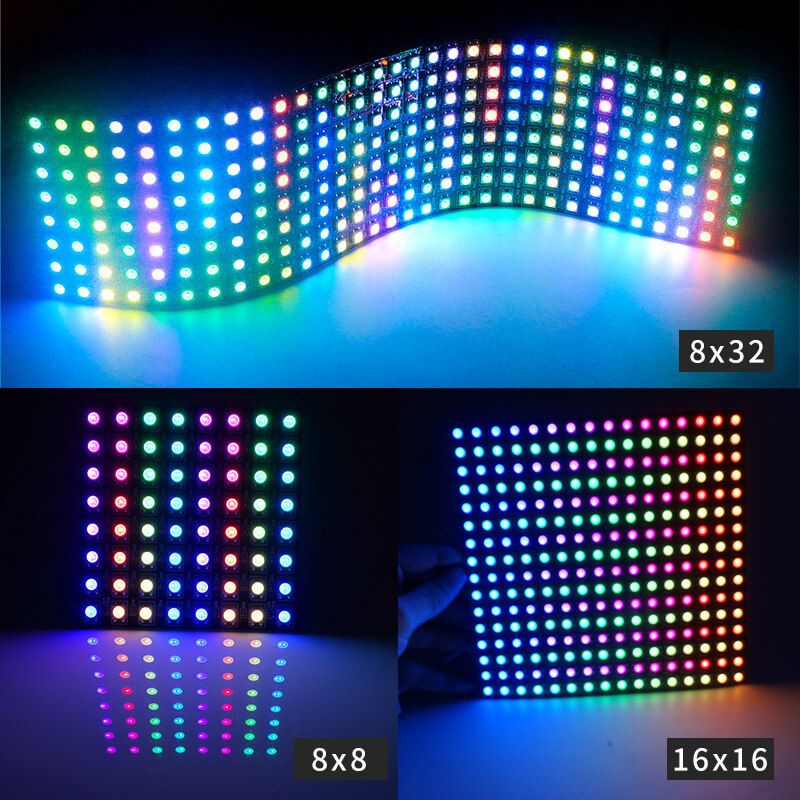

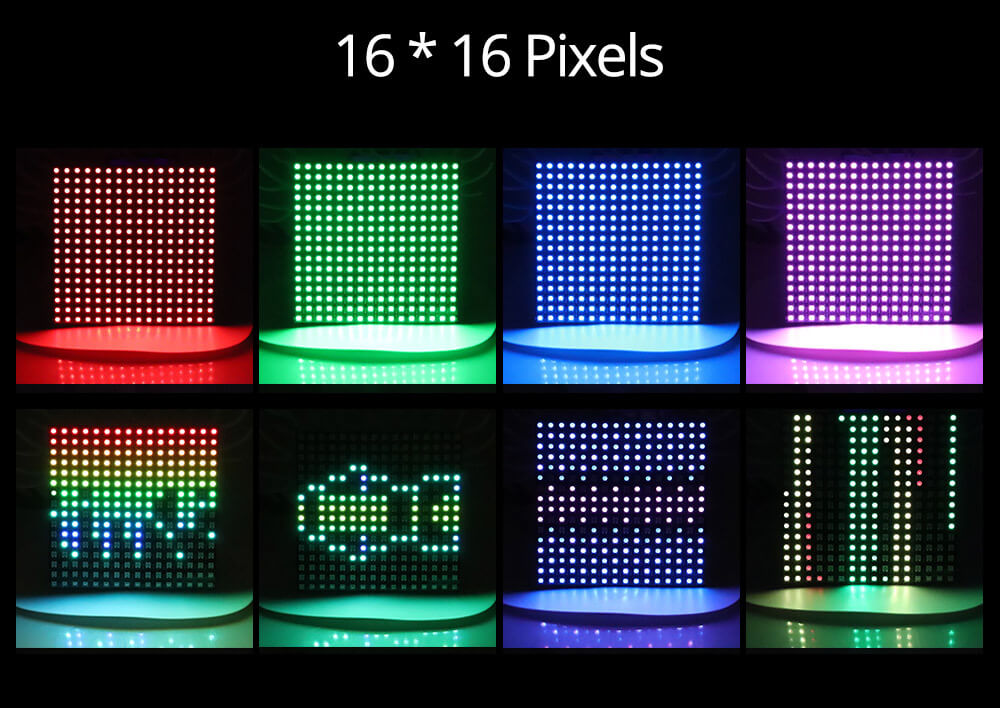

Panel Resolution Common sizes: 8×8, 8×16, 16×16, 16×32, 32×32 (fully customizable)
LED Density From 256 to 1024 pixels per panel (depending on size)
Color Rendering 24-bit full color (16,777,216 colors)
Gray Scale 256 levels per channel
Beam Angle 120°
Brightness High-brightness 5050 RGB LEDs
Panel Material Soft flexible FPCB / silicone mesh

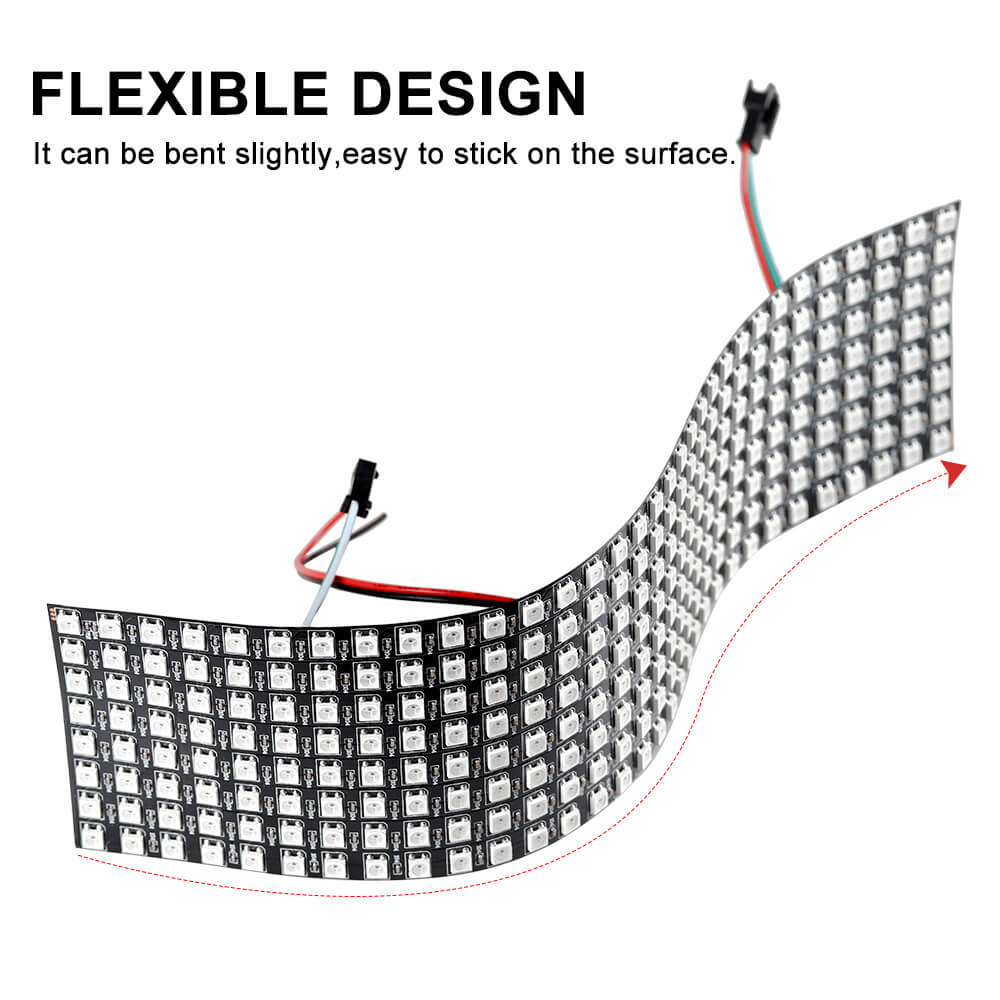

Bendability Supports bending, curving, surface wrapping
Waterproof Rating IP20 / IP65 (optional)
Operating Temperature −20°C to +60°C
Storage Temperature −40°C to +80°C
Lifespan >30,000 hours

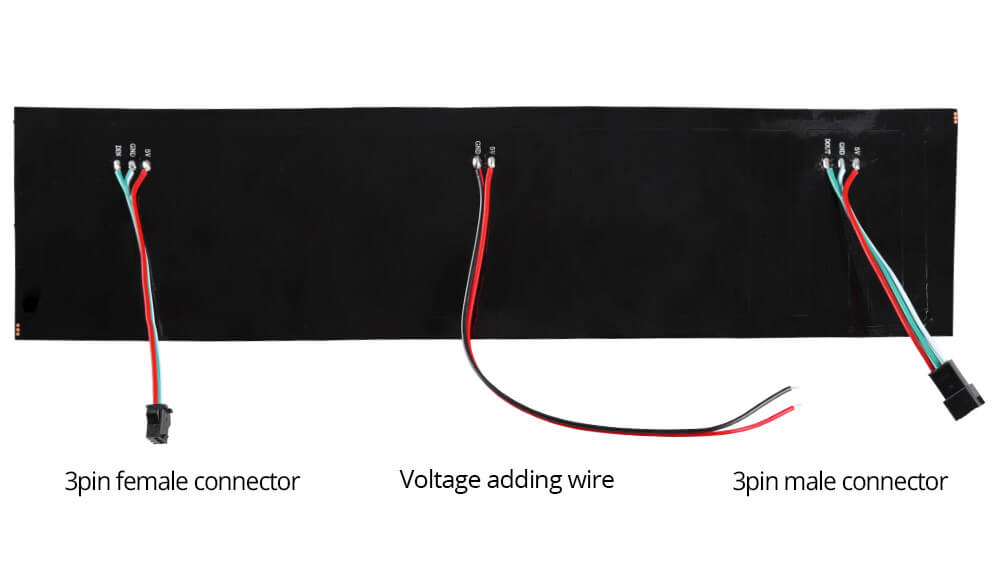

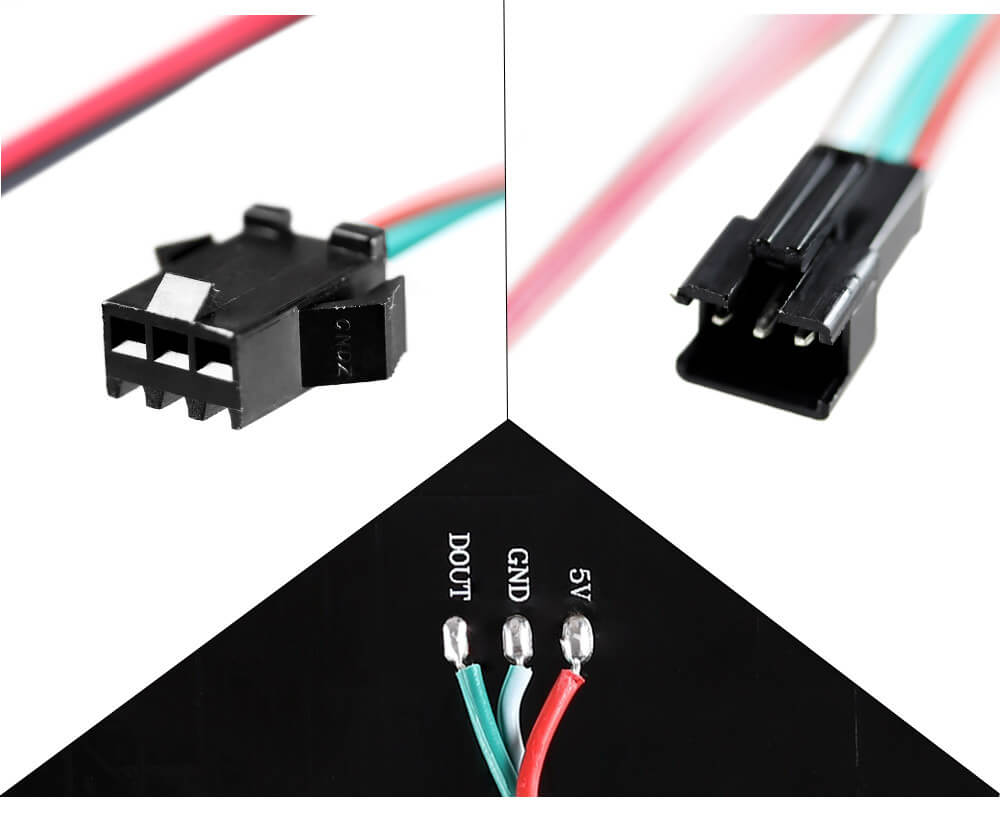

Signal Direction One-way (DIN → DOUT)
Power Consumption Approx. 0.3W per pixel (full white)
Control Compatibility Artnet, Madrix, SP105E, K1000C, SPI controllers
Installation Method Screw mounting / magnetic fixing / tie straps / adhesive options
Application Areas Stage design, creative displays, media walls, retail decoration, immersive spaces
