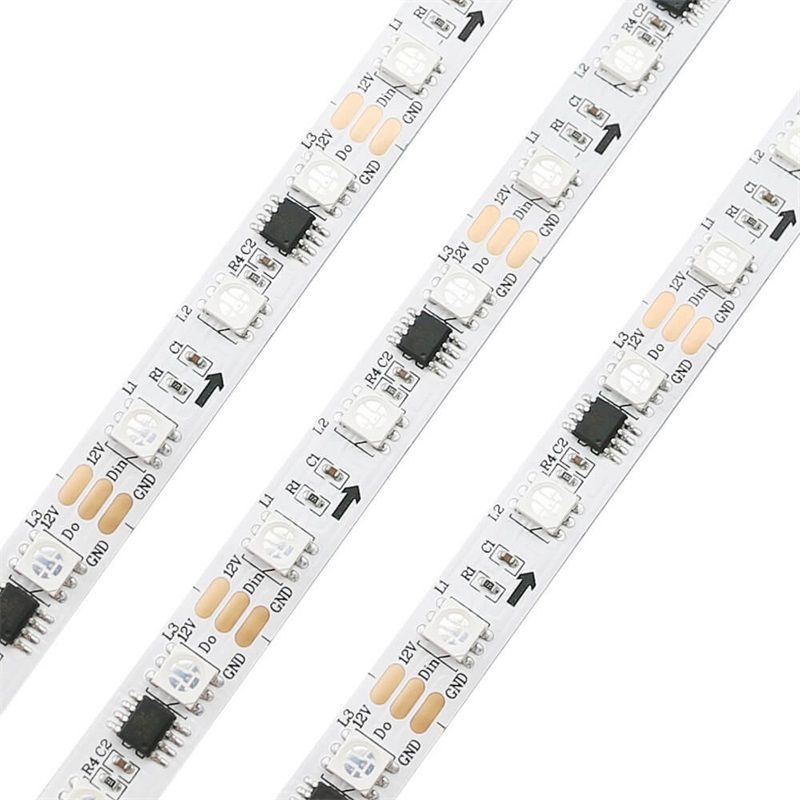

WS2811 External IC RGB 5050 Strip light DC12V

WS2811 External IC RGB 5050 Strip light DC12V

High quality,programmable,wide application

WS2811 is designed for projects that value stability, distance, and cost control over ultra-fine pixel resolution. Using an external control IC and a 12V power system, it significantly reduces voltage drop compared with 5V addressable strips, allowing longer continuous runs with fewer power injection points. Each WS2811 IC controls a group of LEDs, which improves thermal performance and long-term reliability in outdoor and architectural environments. This structure also makes the strip more tolerant to harsh conditions and easier to maintain in large installations. For building outlines, signage, landscape lighting, and large-scale decorative projects, WS2811 remains a practical and proven solution that balances performance, durability, and overall system cost.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Item Specification
Product Name WS2811 Addressable LED Strip
Control IC WS2811 External IC
LED Type SMD 5050 RGB LED
Control Type Addressable (Group Control)
Operating Voltage DC 12V
Signal Type Single Data Signal
LED Density 30 / 48 / 60 LEDs per meter (optional)
IC Control Mode 1 IC controls 3 LEDs (12V version)
Pixel Resolution 1 pixel per 3 LEDs
Power Consumption 12–14.4 W/m (depending on density)
Color Output RGB Dream Color
Color Depth 8-bit per color, 24-bit color
Beam Angle 120°
PCB Width 10 mm / 12 mm (optional)
PCB Type Flexible FPCB
Cutting Unit Every 3 LEDs

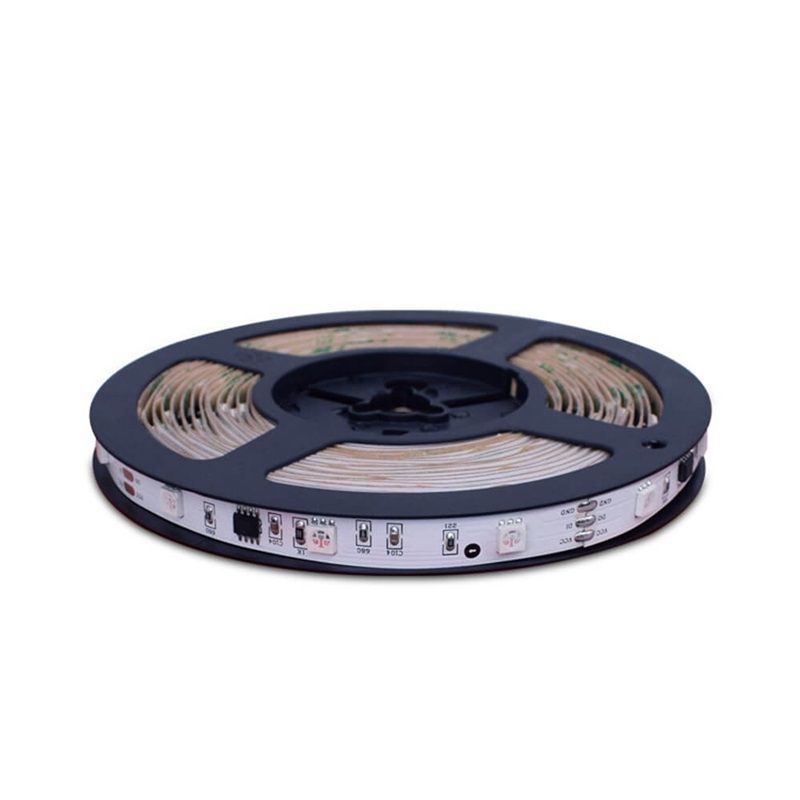

Standard Length 5 m per reel (custom length available)
IP Rating IP20 / IP65 / IP67 (optional)
Operating Temperature –20°C to +50°C
Lifespan ≥50,000 hours
Dimmable Yes (via controller)
Certifications CE, RoHS
Compatible Controllers SPI, WS2811, DMX, Arduino, Pixel Controllers
Applications Building outlines, signage, pixel lighting, landscape lighting, decorative and outdoor projects
