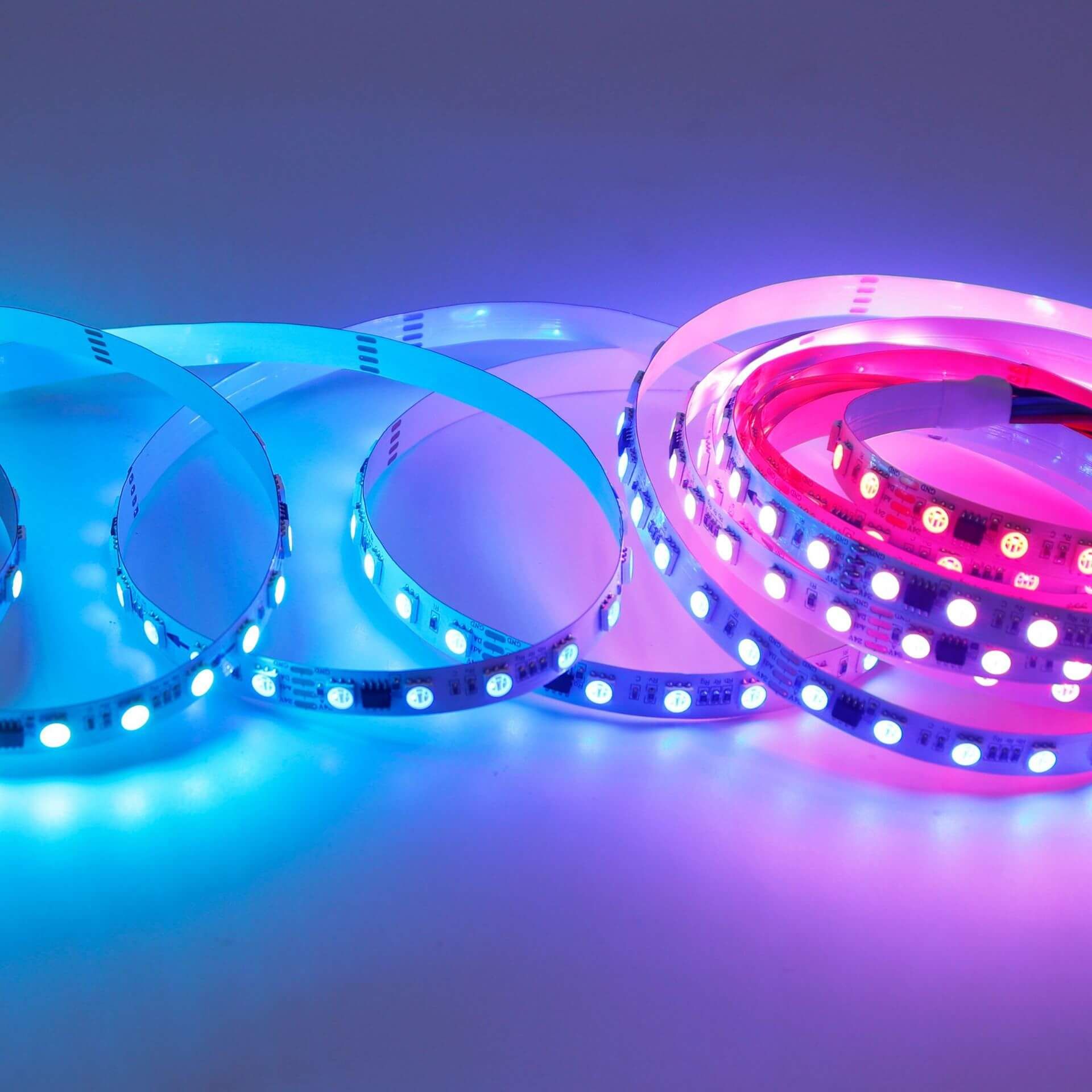

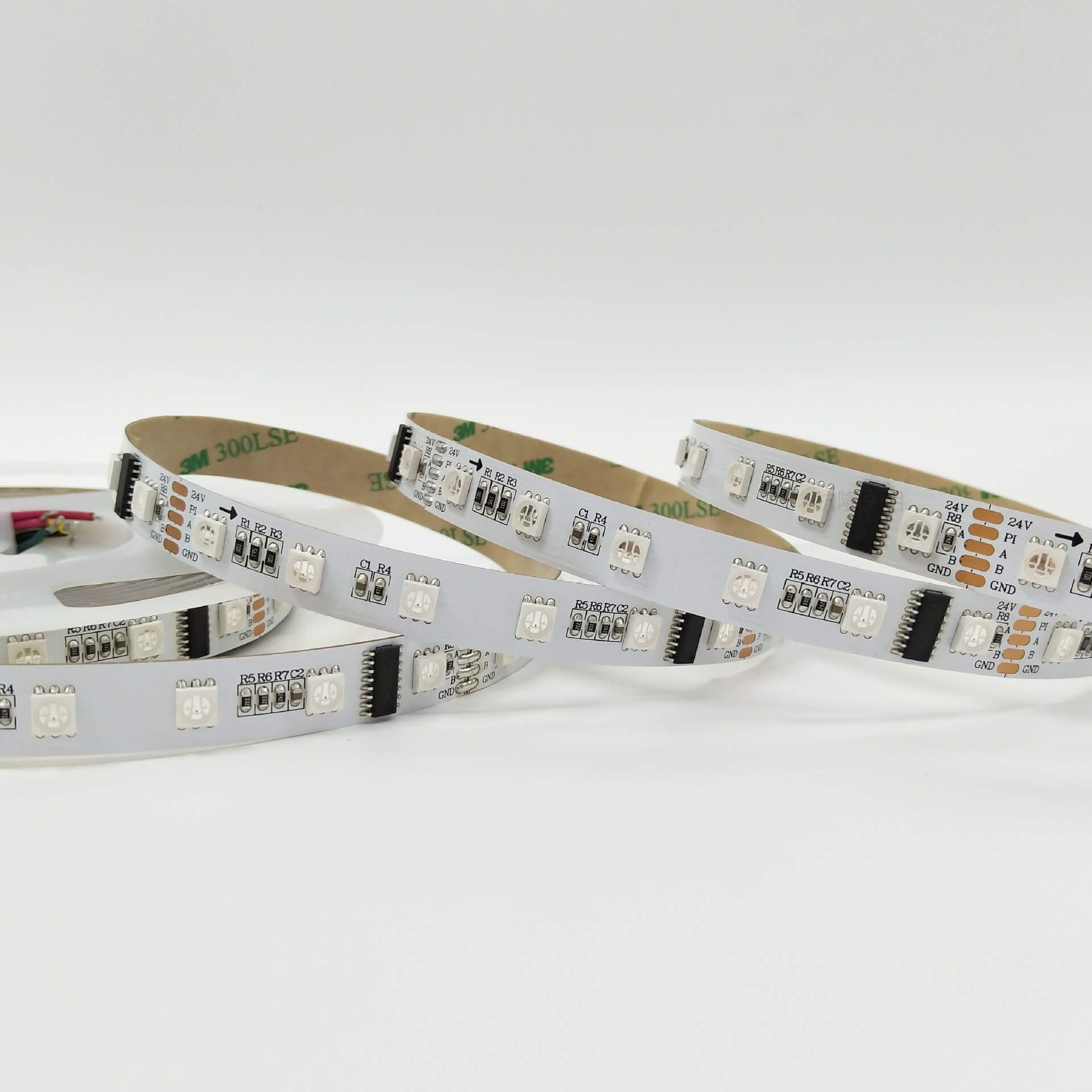

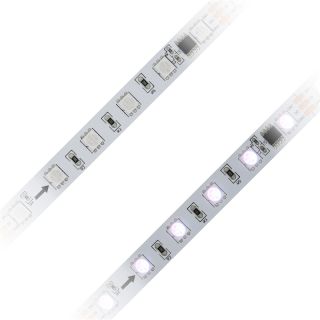

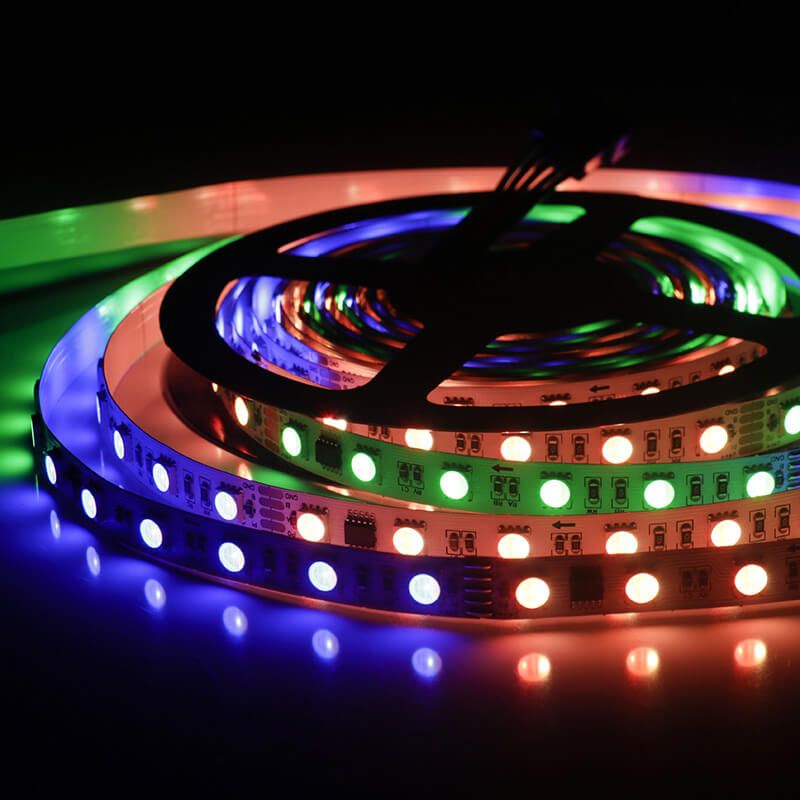

UCS512 RGB+IC LED Strip 12V Addressable Pixel Lighting

Programmable and customizable

The UCS512 RGB+IC LED strip is designed for projects that prioritize stability, compatibility, and long-distance performance. Using a standard SPI control protocol, it works seamlessly with a wide range of pixel controllers and DMX systems, making system integration straightforward and reliable. The RGB LEDs are driven by external UCS512 ICs, which improves heat dissipation and enhances long-term stability compared to highly integrated chips. With 12V or 24V power options, the strip minimizes voltage drop and supports longer continuous runs with fewer power injection points. This practical structure makes the UCS512 RGB+IC LED strip a cost-effective and dependable solution for architectural outlines, signage, landscape lighting, and large-scale decorative installations.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Item	Specification
Product Name	UCS512 RGB+IC LED Strip
Control IC	UCS512 External IC
LED Type	SMD 5050 RGB LED
Control Type	Addressable (Group Control)
Signal Protocol	SPI
Operating Voltage	DC 12V / DC 24V (optional)
LED Density	30 / 48 / 60 LEDs per meter
IC Control Mode	1 IC controls 3–6 LEDs (depending on voltage design)
Pixel Resolution	Group-addressable pixels
Power Consumption	12–18 W/m (depending on configuration)
Color Output	RGB Dream Color
Color Depth	8-bit per color, 24-bit
Beam Angle	120°
PCB Type	Flexible FPCB
PCB Width	10 mm / 12 mm (optional)

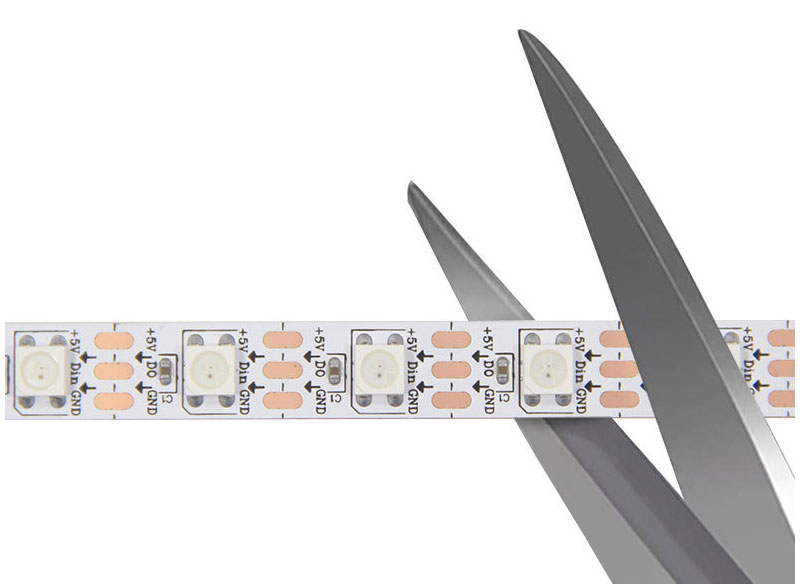

Cutting Unit	Every IC segment

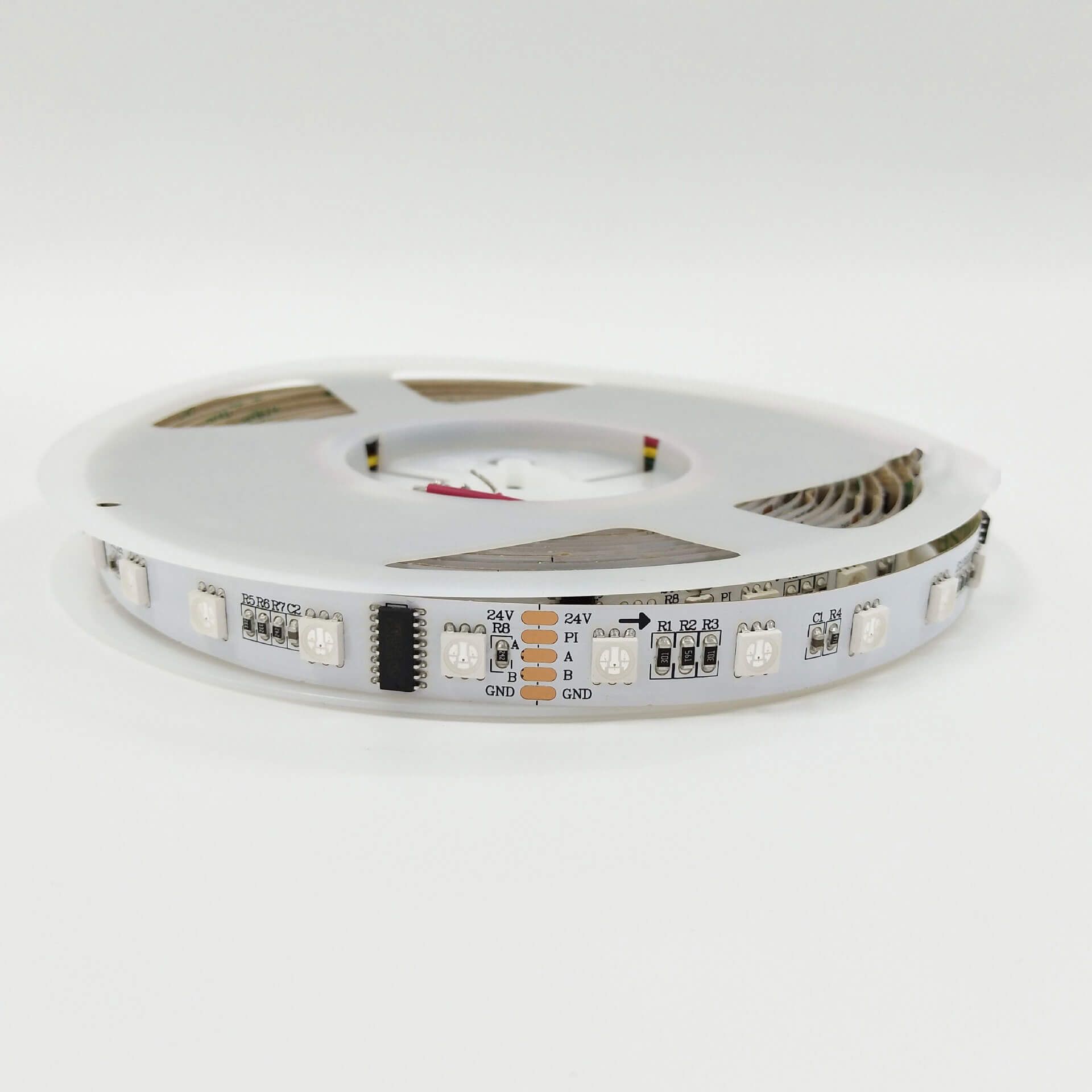

Standard Length	5 m per reel (custom length available)

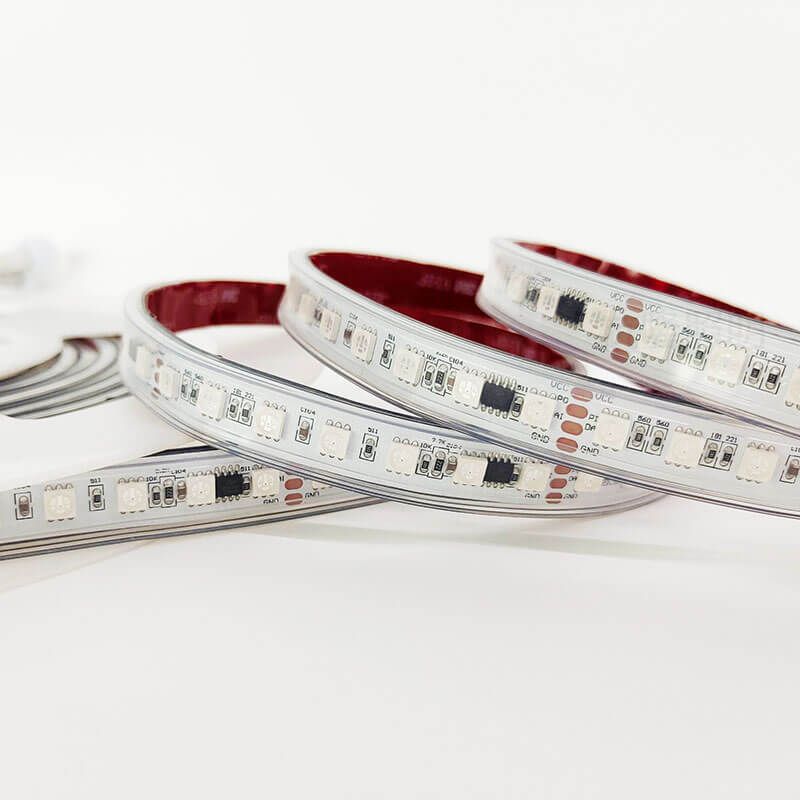

IP Rating	IP20 / IP65 / IP67 (optional)
Operating Temperature	–20°C to +50°C
Lifespan	≥50,000 hours
Dimmable	Yes (via controller)
Certifications	CE, RoHS
Compatible Controllers	SPI controllers, DMX decoders, pixel controllers
Applications	Architectural outlines, signage, landscape lighting, bridges, facades, large-scale decorative lighting
