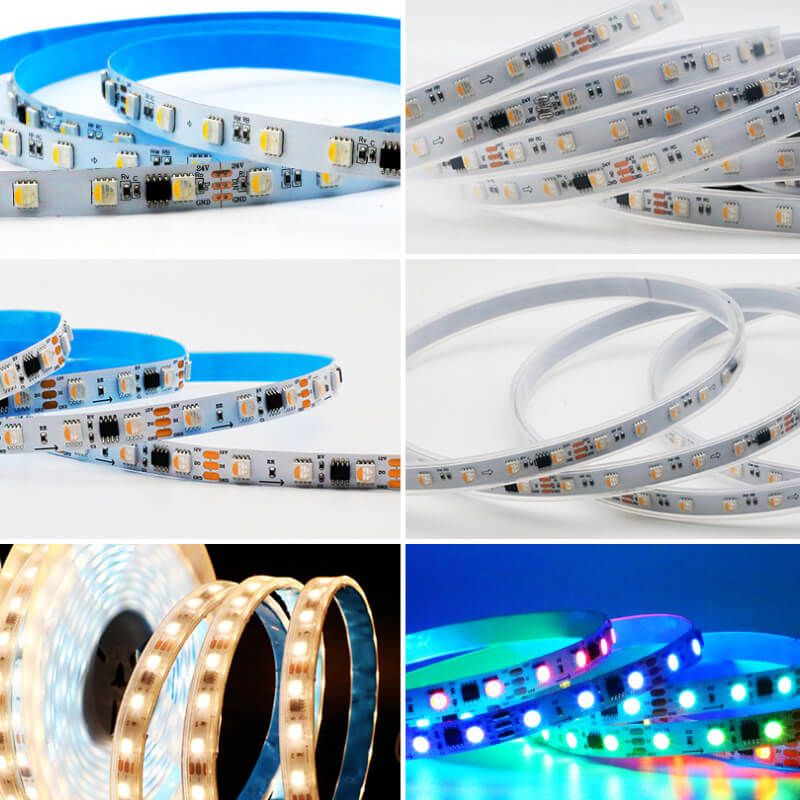

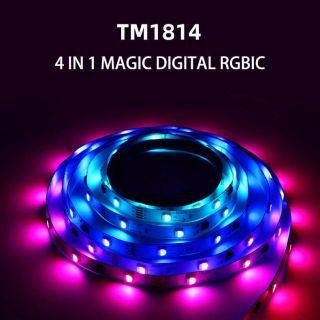

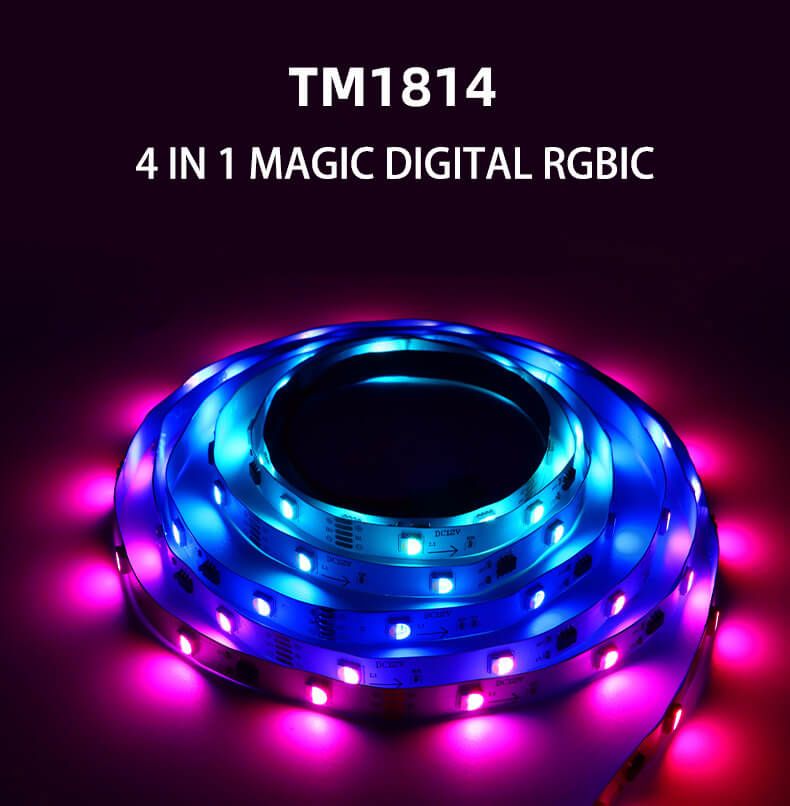

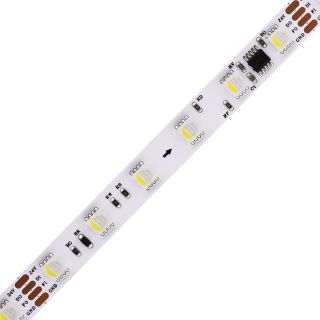

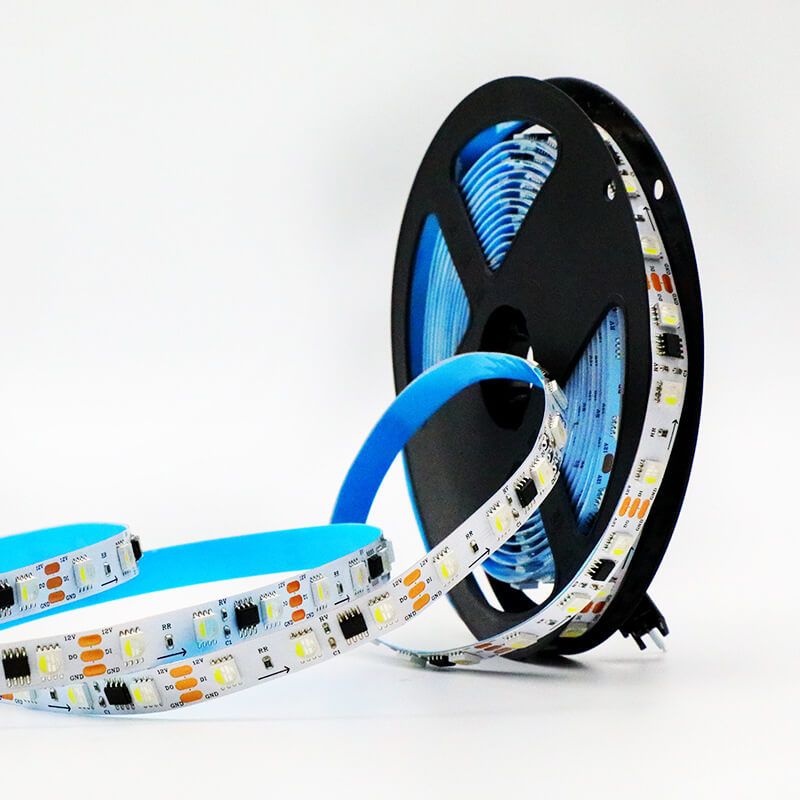

TM1814B RGBW LED Strip 4-in-1 | Addressable External IC Pixel Tape 12V/24V

TM1814B,Programmable and customizable

The TM1814B RGBW 4-in-1 LED Strip was developed to provide precise color control and reliable performance for professional lighting projects. Its external IC design ensures stable data transmission and reduces signal loss, while integrating RGB and a dedicated white channel in each pixel delivers richer colors, smoother gradients, and true-to-life whites. Modular and addressable, the strip supports creative architectural façades, stage lighting, and large-scale decorative installations, offering high reliability, easy maintenance, and scalable deployment for engineering-grade applications.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Parameter	Specification
Product Model	TM1814B RGBW 4-in-1 Addressable LED Strip
LED Driver IC	TM1814B External IC

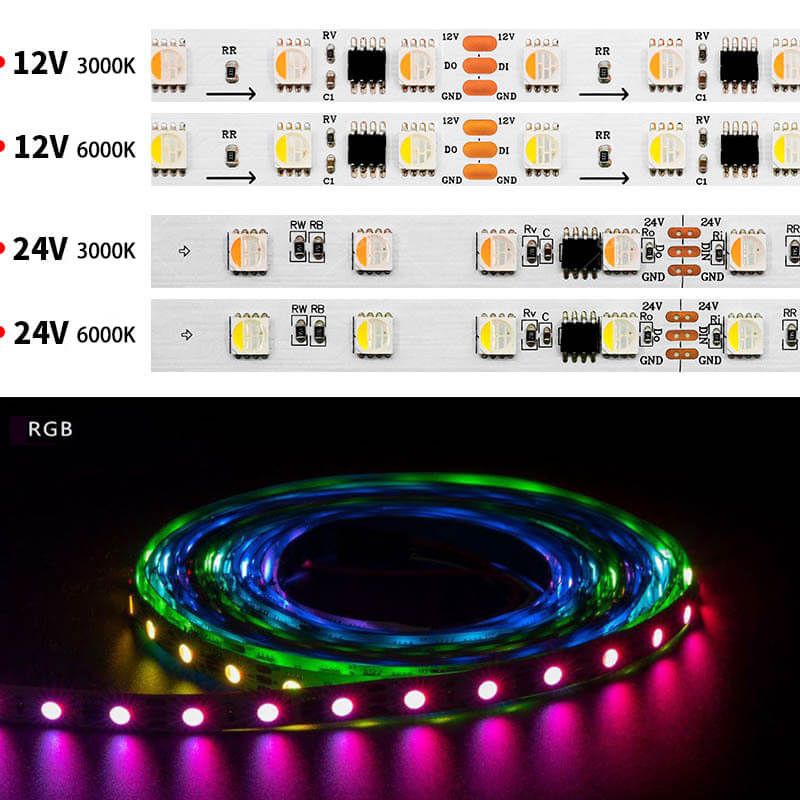

Working Voltage	DC12V / DC24V
LED Type	5050 SMD RGBW (4-in-1)
Pixel Structure	1 pixel = 1 RGBW LED (external IC)
LED Density	30 / 60 / 144 LEDs/m (customizable)
Power Consumption	30LED/m: 9W/m; 60LED/m: 18W/m; 144LED/m: 43.2W/m
Maximum Current	30LED/m: 0.75A/m; 60LED/m: 1.5A/m; 144LED/m: 3.6A/m
Maximum Running Length	5 meters per segment (requires power injection beyond 5m)
Cutting Length	3 LEDs / pixel (varies by LED density)
Color	RGBW full color, 256-level grayscale per channel
Data Transmission	SPI / external IC digital signal
Beam Angle	120°
PCB Width	10mm / 12mm / 17mm (depends on density)
PCB Copper Thickness	2oz (3oz optional for engineering)
Adhesive Backing	3M high-strength tape
Waterproof Rating	IP20 / IP65 / IP67 / IP68 optional
Operating Temperature	−25°C to +80°C
Storage Temperature	−40°C to +85°C
Lifespan	>30,000 hours

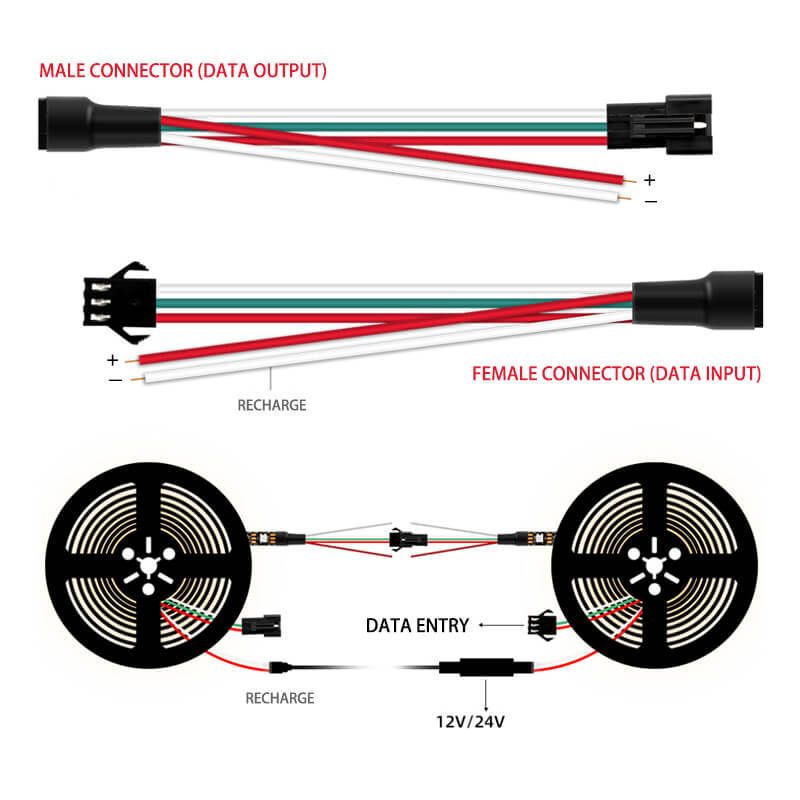

Signal Direction	Single direction (DIN → DOUT)
Control Compatibility	K1000C, T1000S, Artnet-SPI, DMX-to-SPI, Arduino, Raspberry Pi
Installation Method	3M adhesive, aluminum profile, clips
Warranty	3 years (extendable for engineering projects)
