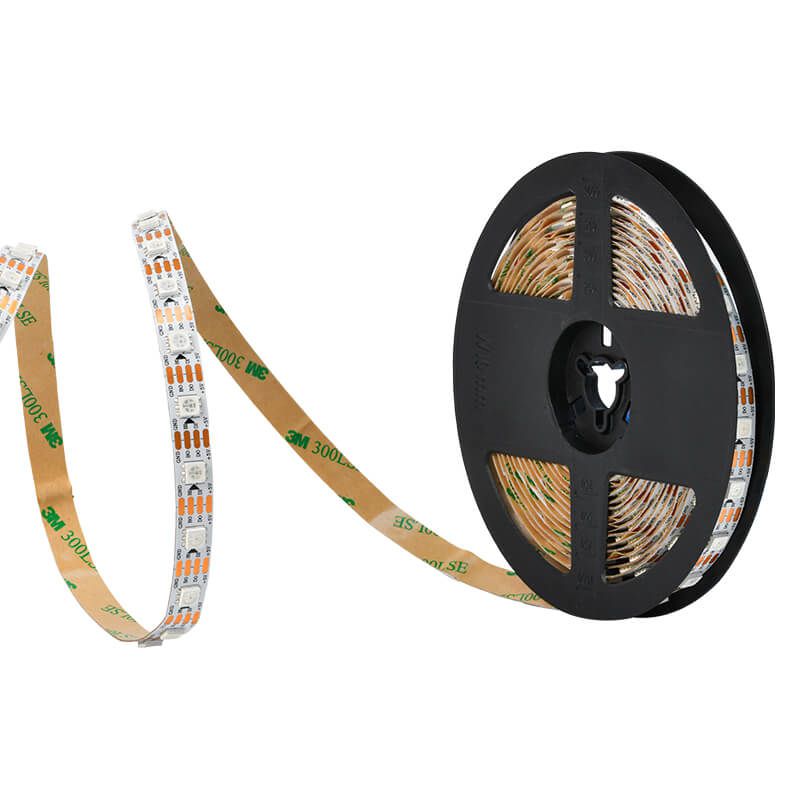

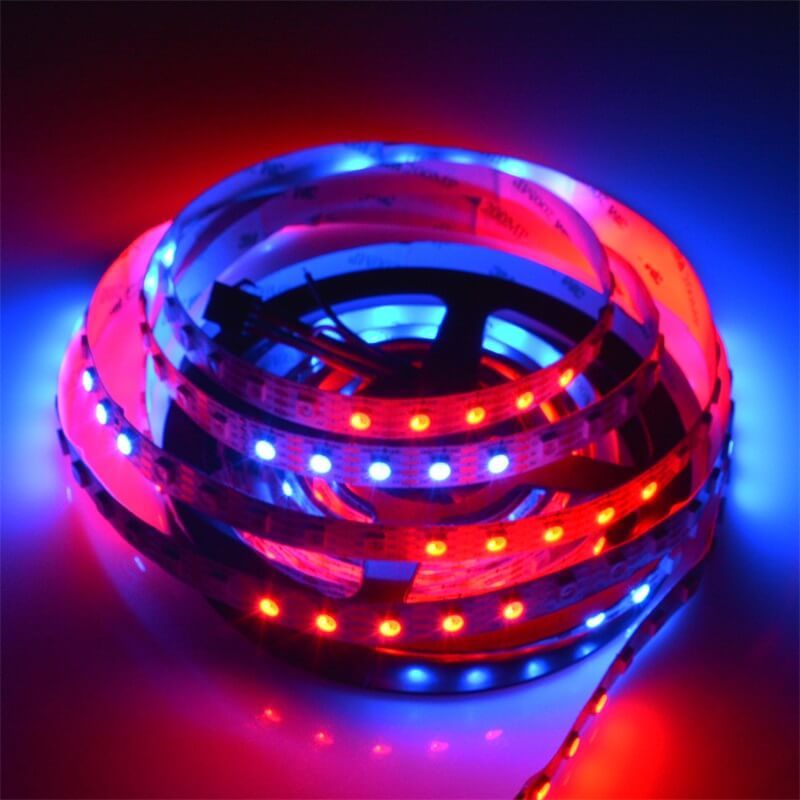

SK9822 RGB LED Strip | Addressable SPI Pixel LED Tape 5V/12V

Programmable and customizable

The SK9822 RGB Addressable LED Strip was developed to provide high-speed, precise pixel control for professional lighting projects. With a built-in SPI IC, it delivers faster refresh rates and more stable data transmission than traditional WS2812B strips, allowing smooth animations and complex effects. Individually addressable pixels enable creative designs for stage, architectural, and decorative applications, while 5V and 12V versions offer flexibility for short-range installations or long-distance layouts. Its reliability, high color fidelity, and modular design make it ideal for commercial and engineering-grade lighting projects.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Parameter	Specification
Product Model	SK9822 RGB Addressable LED Strip
LED Driver IC	SK9822 Integrated IC (built-in)
Working Voltage	DC5V / DC12V (depending on model)
LED Type	5050 SMD RGB
Pixel Structure	1 pixel = 1 RGB LED with integrated IC

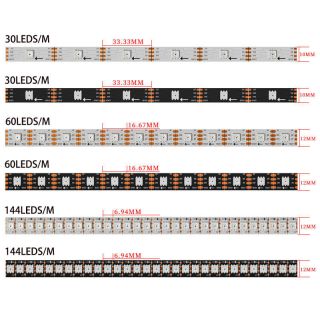

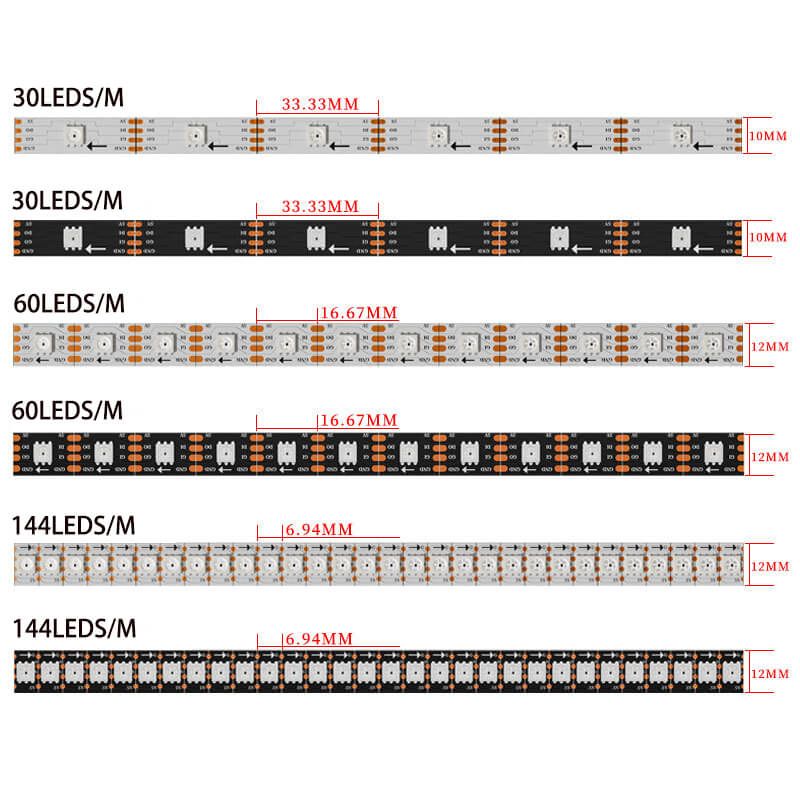

LED Density Options	30 / 60 / 144 LEDs/m (customizable)
Power Consumption	30LED/m: 9W/m; 60LED/m: 18W/m; 144LED/m: 43.2W/m
Maximum Current	30LED/m: 0.75A/m; 60LED/m: 1.5A/m; 144LED/m: 3.6A/m
Maximum Running Length	5 meters per segment (requires power injection beyond 5m)
Cutting Length	1 LED/pixel
Color	RGB full color, 256-level grayscale per channel
Data Transmission	SPI high-speed digital signal
Refresh Rate	2.5–4 kHz (typical)
Beam Angle	120°
PCB Width	10mm / 12mm / 17mm (depends on density)
PCB Copper Thickness	2oz standard
Adhesive Backing	3M double-sided tape

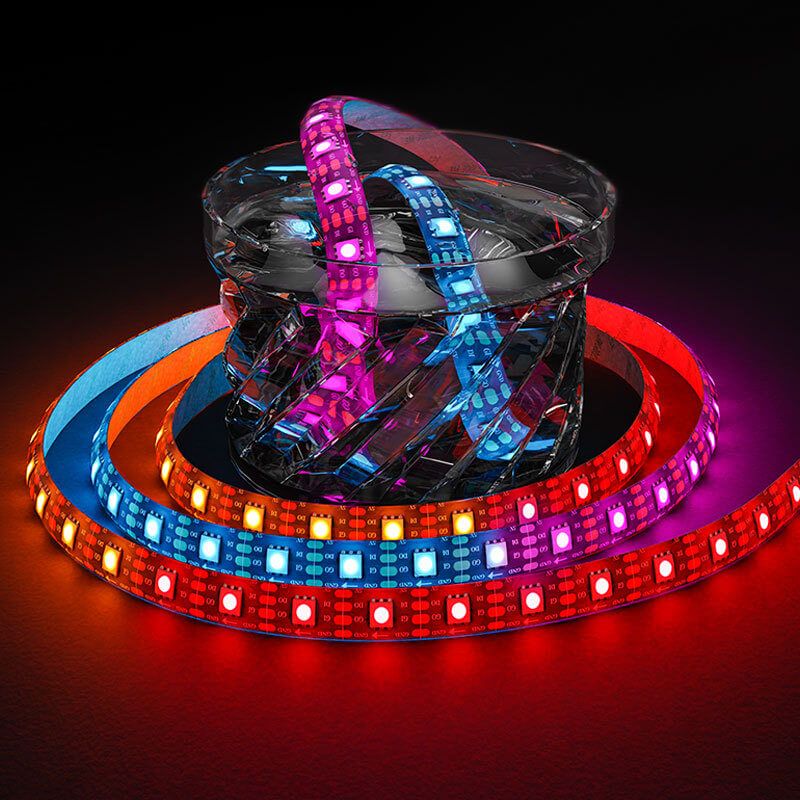

Waterproof Rating	IP20 / IP65 / IP67 optional
Operating Temperature	−25°C to +80°C
Storage Temperature	−40°C to +85°C
Lifespan	>30,000 hours
Signal Direction	DIN → DOUT (built-in IC ensures stable data)
Control Compatibility	K1000C, T1000S, Artnet-SPI, DMX-to-SPI, Arduino, Raspberry Pi
Installation Method	3M adhesive, aluminum channel, clips
Warranty	3 years (extendable for engineering projects)
