DC5V/12V,6mm,12W/M

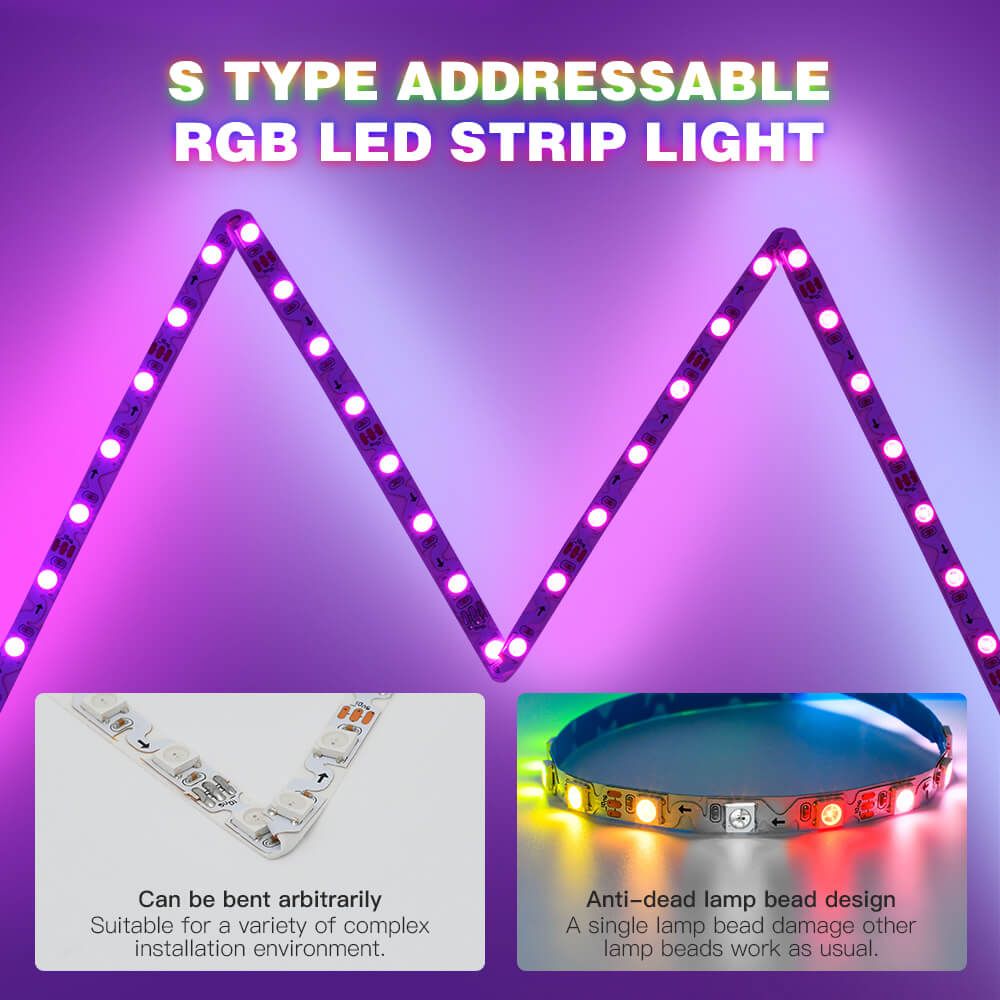

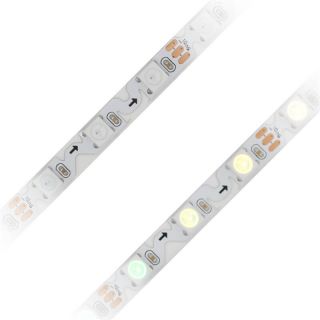

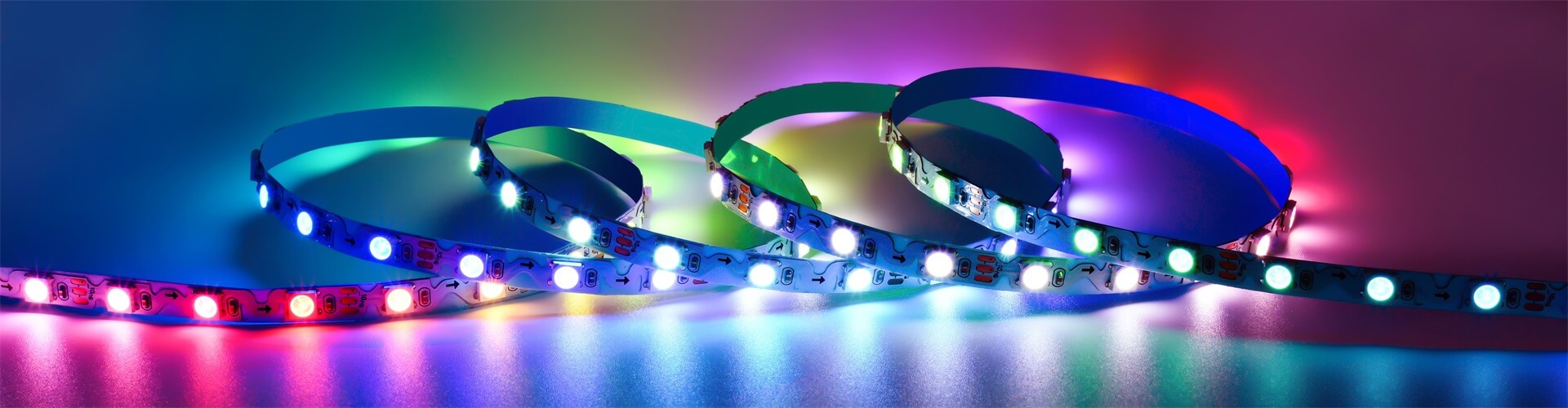

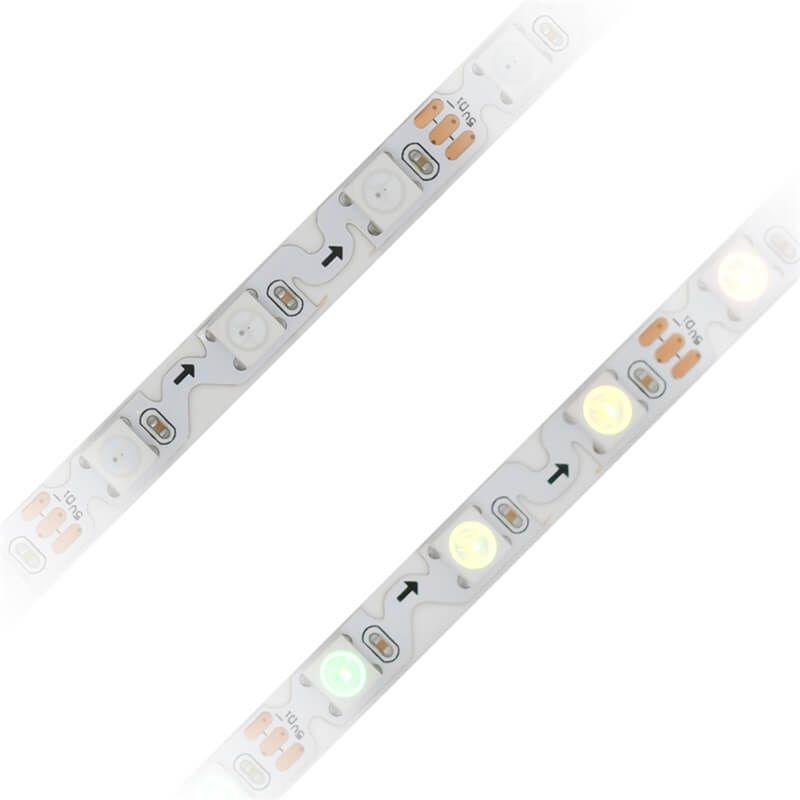

The S-type WS2812B LED strip features a unique zigzag FPCB structure that allows natural horizontal bending, making it ideal for smooth curves, rounded logos, and complex shapes that straight strips cannot achieve. Each 5050 LED integrates a WS2812B IC for precise pixel-level control, enabling vivid animations and dynamic color effects along any curved surface. With 1-LED cuttable flexibility, designers can achieve accurate lengths even in tight or irregular spaces. This innovative S-shaped design delivers unmatched adaptability for channel letters, creative lighting installations, and architectural projects requiring fluid, seamless light paths.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Item | Specification |
|---|---|
| Model | S-Type WS2812B Addressable LED Strip |
| LED Type | 5050 RGB LED with Built-in WS2812B IC |
| LED Density | 60 LEDs/m / 72 LEDs/m / 96 LEDs/m (optional) |
| Voltage | DC 5V |
| Power Consumption | 14.4W–18W/m (depending on density) |
| Pixel Control | Individually Addressable Pixels (1 IC per LED) |
| Control Protocol | WS2812B Standard / SPI / UART |
| Beam Angle | 120° |

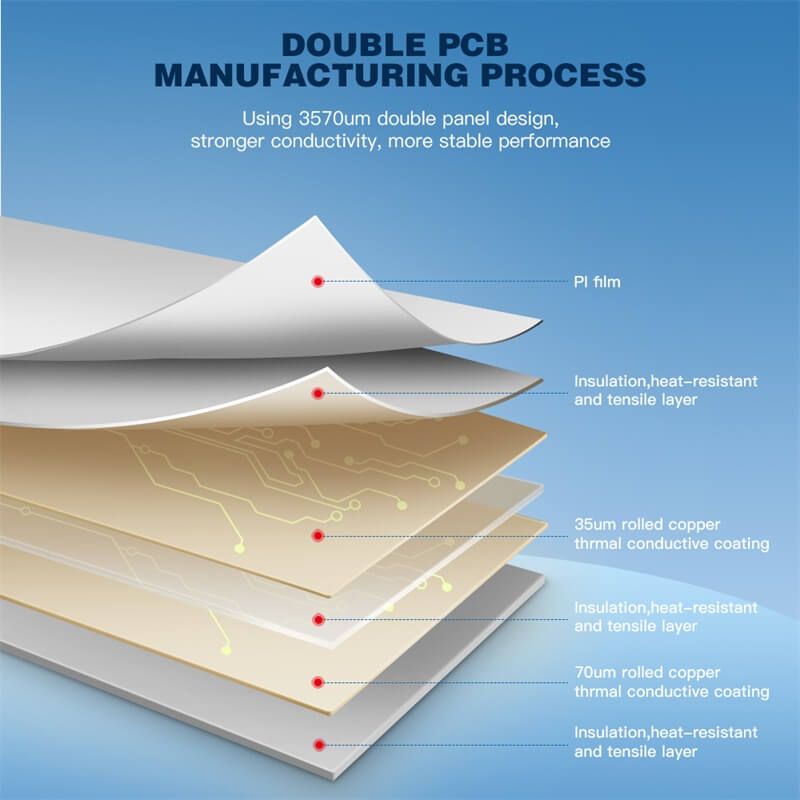

| PCB Type | S-Type / Zigzag Flexible FPCB |
| PCB Color | White / Black |
| Cutting Units | 1 LED per cut (1 pixel cuttable) |
| Color | RGB Full Color |
| Luminous Output | 12–16 lm/LED (RGB) |
| Bending Type | Horizontal bending (S-Type / Zigzag) |
| Strip Width | 10mm / 12mm (customizable) |
| Standard Length | 5m per reel or custom lengths |
| IP Rating | IP20 / IP65 (glue coating) / IP67 (silicone tube) |
| Operating Temperature | –20°C to +50°C |
| Lifespan | 30,000–50,000 hours |
| Certifications | CE, RoHS, EMC |
| Applications | Channel letter signage, light boxes, curved signage, exhibitions, stage lighting, creative lighting installations |
