RGBW Flexible LED Light Sheet 288 LEDs | Cuttable Backlight Panel

DIY LED panel

This RGBW flexible LED light sheet features a high-density 288-LED layout using premium Epistar 5050 chips, delivering uniform brightness and vivid color performance for luxury backlighting applications. The 4-in-1 RGBW design combines dynamic color effects with high-CRI white light (2700K–6500K), ensuring both decorative atmosphere and accurate color rendering. Its cuttable and spliceable structure allows full DIY customization, making it easy to adapt to different sizes and shapes without dark spots. Operating on safe DC24V with excellent thermal performance and a 50,000-hour lifespan, this light sheet is ideal for marble, stone, glass, signage, and high-end interior backlighting projects.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Item	Specification
Brand	ZBL Lighting
Model	RGBW-288D
Product Type	Flexible LED Light Sheet / Soft LED Panel
Input Voltage	DC 24V
LED Chip Brand	Epistar
LED Package	SMD 5050
LED Quantity	288 LEDs
Color Options	2700K-6500K/ RGB / RGBW / RGBCW
Color Temperature	RGB + 2700K (Warm White) + 6500K (Cool White)
Luminous Flux	Up to 2000 lm
Beam Angle	120°
CRI (Ra)	≥90
Dimmable	Yes
Material	Copper
Standard Size	240 × 480 mm
Weight	150 g
Power Consumption	RGB: 60WRGBW: 70WRGBCW: 90W
IP Rating	IP20
Lifespan	50,000 hours
Certifications	CE (EU), RoHS

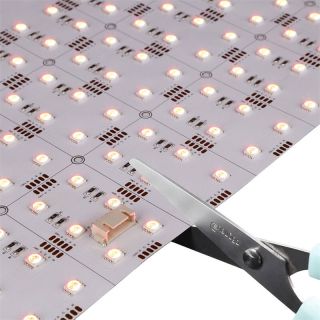

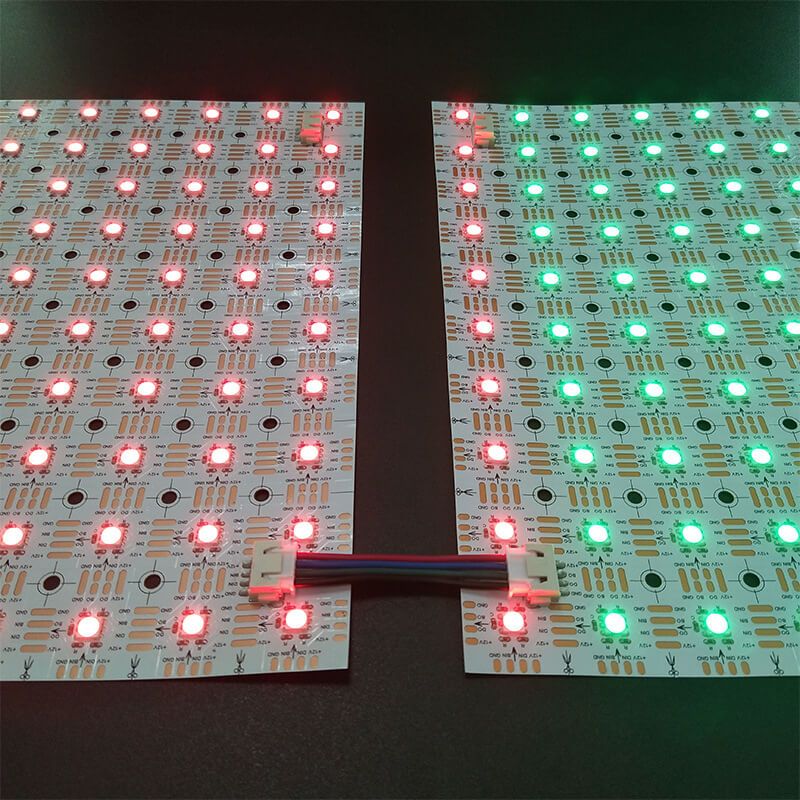

Cuttable & Spliceable	Yes (DIY cutting and seamless splicing supported)
Installation Type	Backlighting / Surface Mount

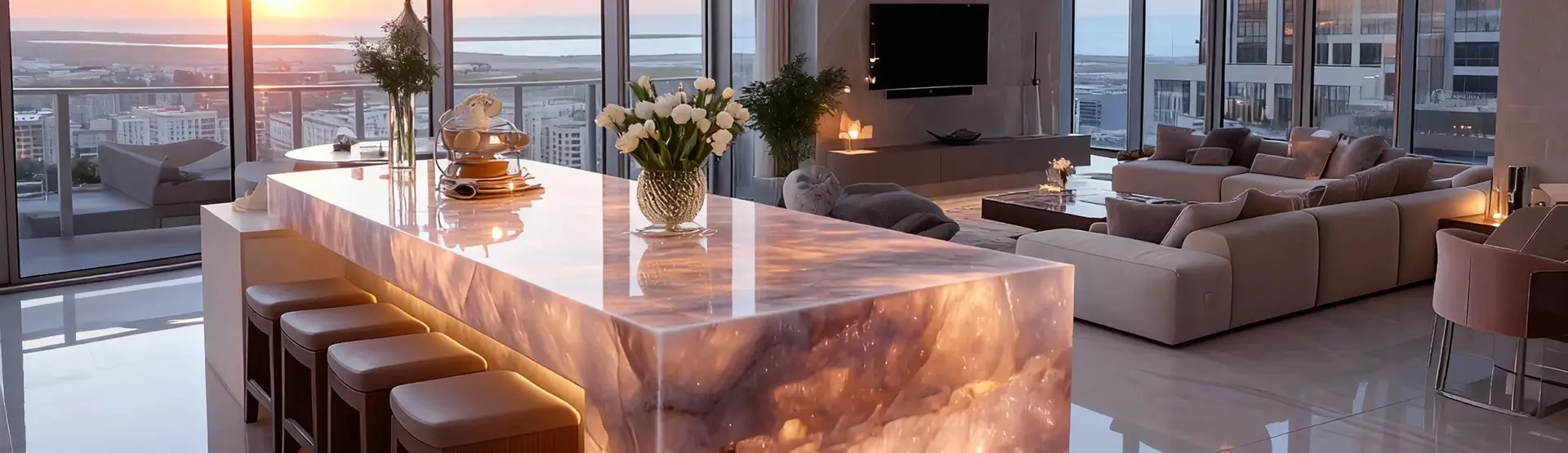

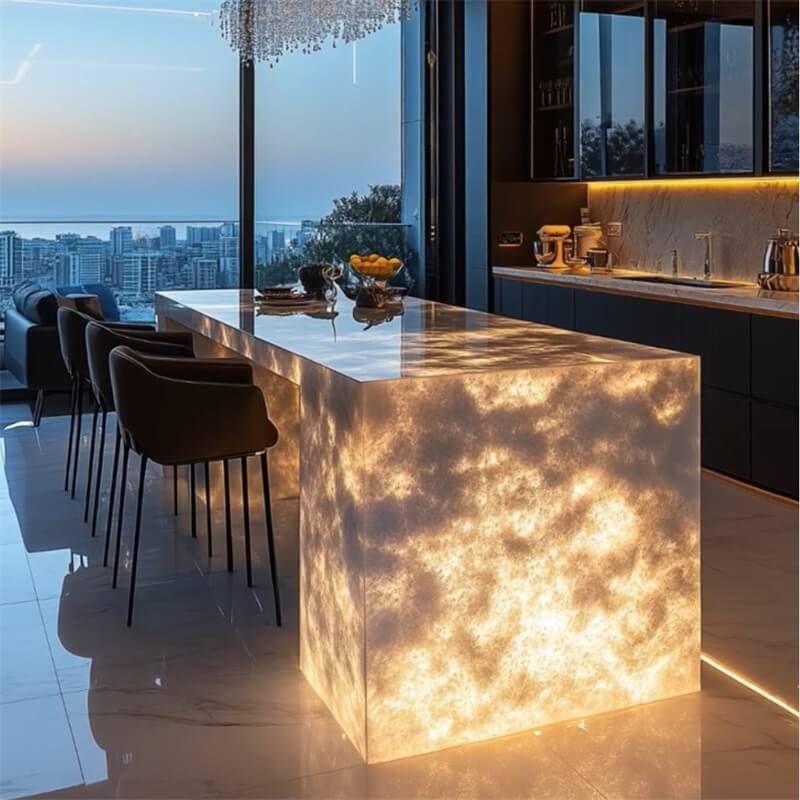

Application Areas	Marble & stone backlighting, glass panels, luxury interiors, signage, display cabinets
