High Quality OEM/ODM LED Strip Manufacturer
RGB+3000K/4000K/6500K
Attribute | Value |
---|---|
Origin | Shenzhen |
Order Number | COB784D-RGBW |
Type | COB LED Strip |
Brand | ZBL |
Model | COB784D-RGBW |
Input Voltage | DC24V |
LED Chip Brand | San'an Optoelectronics |
LED Chip Model | cob |
Number of LEDs | 784 LEDs per meter |
Luminous Flux per LED | 90 lm |
Beam Angle | 180 degrees |
Dimmable | Yes |
Lifespan | 50,000 hours |
Dimensions | 5000x12x3 mm |
Weight | 100 g |
Certification | CE certified (EU) |
Application | Wardrobes, cabinets |
Special Features | Customizable waterproof levels |
Color Temperature | 24V 784 LEDs/m RGBW cob LED Strip (K) |
Color Rendering Index (CRI) | 97 |
Main Sales Regions | Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East |
Product Specifications | IP20 bare board |
Power | 20W/m |
Lifespan | 50,000 hours |
Minimum Packaging | 5 meters |
Switch Type | Manual |
Light Source | Point light source |
Control Type | PWM |

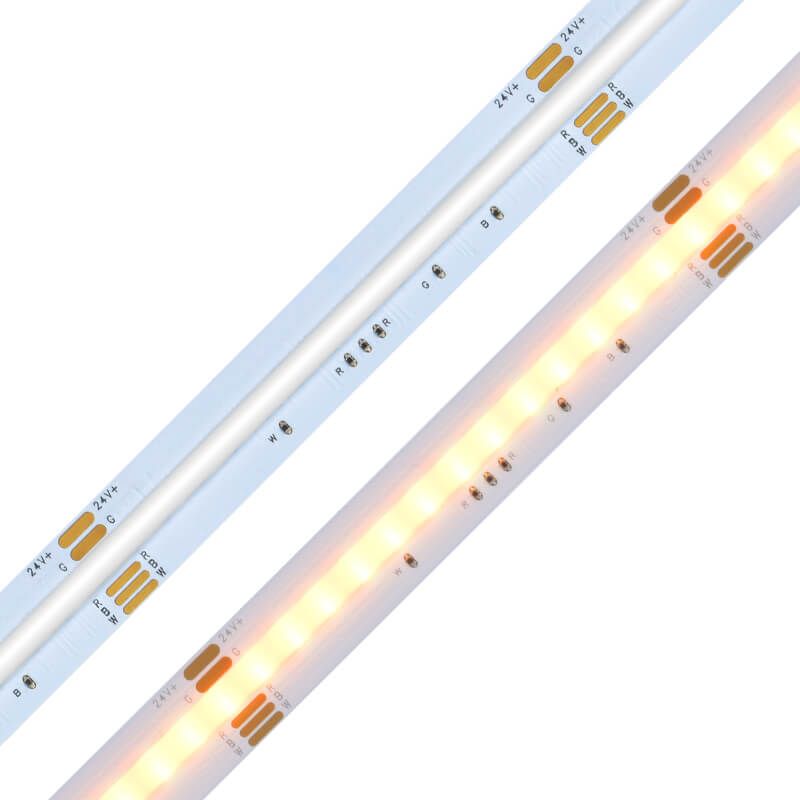

RGBW COB LED Strip with 784 LEDs per meter, operating at DC24V with a Color Rendering Index (CRI) of 97. This high-quality LED strip provides a wide range of color options, including RGB and white, and its high CRI ensures accurate color representation. Perfect for architectural lighting, commercial lighting, and other high-end lighting applications.
RGBW COB LED strips offer several advantages over traditional LED strips:
High brightness: The COB (Chip on Board) design of the RGBW COB LED strip allows for a higher density of LEDs, resulting in brighter and more vibrant lighting.
Superior color mixing: The RGBW COB LED strip has separate red, green, blue, and white LED chips on each COB unit, allowing for more precise and accurate color mixing and a wider range of colors.
High color rendering index (CRI): The CRI of the RGBW COB LED strip is 97, which means that it can accurately display colors and render them in a way that is close to natural light.
Energy efficiency: The RGBW COB LED strip is energy efficient, consuming less power than traditional lighting sources while still providing bright and vibrant light.
Easy installation: The RGBW COB LED strip is easy to install and can be cut to fit any length or shape, making it a versatile lighting solution for a variety of applications.
Long lifespan: The RGBW COB LED strip has a long lifespan, lasting up to 50,000 hours, which means that it requires minimal maintenance and replacement over time.
Model No. | LED Type | LED Qty (pcs/m) | CCT | Work Voltage | Power | Lumen (Lm/m) | Ra |
COB-784-RGB3000K-V24 | COB | 784 | RGB+3000K | 24V DC | 20W/M | 840-905Lm | 97+ |
COB-784-RGB4000K-V24 | COB | 784 | RGB+4000K | 24V DC | 20W/M | 840-905Lm | 97+ |
COB-784-RGB6500K-V24 | COB | 784 | RGB+6500K | 24V DC | 20W/M | 840-905Lm | 97+ |
The shear length | 10MM 20MM 23.81MM 25MM 26.31MM 31.26MM 41.66MM45.45MM 5OMM … |
LED Quality | 240leds 320leds 384leds 480leds 528leds 600leds 608leds 756leds 768leds 784leds … |
Voltage | 5V 12V 24V 36V 110V 220V … |
CCT | 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K RGB RGBW RGBIC RGBCW… |
Photoeffciency | >80Lm/W >100Lm/W … |
Power(w/m) | 7W/M 8W/M 1OW/M 11W/M 14W/M 18W/M … |
Lumen/M | 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M … |
PCB | 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM … |
Waterproof(IP Rating) | IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring … |
Adhesive Tape | 3M 3M 9080A 30OMP 9495 VHB … |
PCB Print | UL CE ROHS LOGO … |
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
What is the color temperature range of RGBW COB LED strip?
Answer: The color temperature range of RGBW COB LED strip varies depending on the specific product, but it is typically within the range of 2700K to 6500K.
How can I control the RGBW COB LED strip?
Answer: RGBW COB LED strip can be controlled using various controllers such as DMX512, DALI, or wireless controllers. The specific controller needed will depend on the application and user preference.
Can I cut the RGBW COB LED strip to fit my project?
Answer: Yes, RGBW COB LED strip can be cut to the desired length at designated cutting points, but it is important to follow the manufacturer's instructions to ensure proper functioning and to avoid damaging the strip.
