Rgb outdoor holiday lights, 24V Christmas lights

Rgb outdoor holiday lights, 24V Christmas lights

Support IP68 to give the house a new look

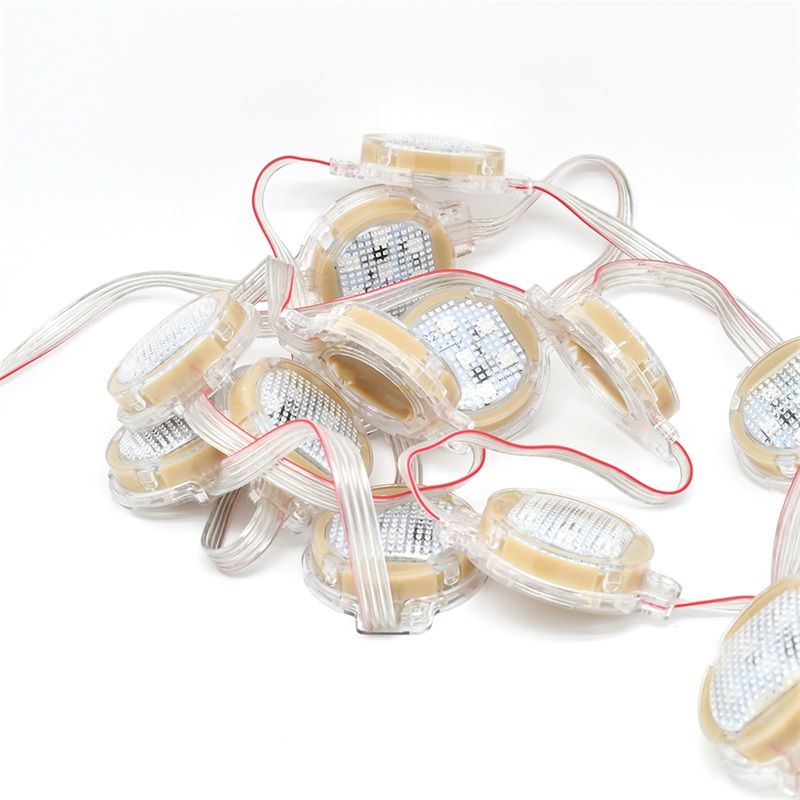

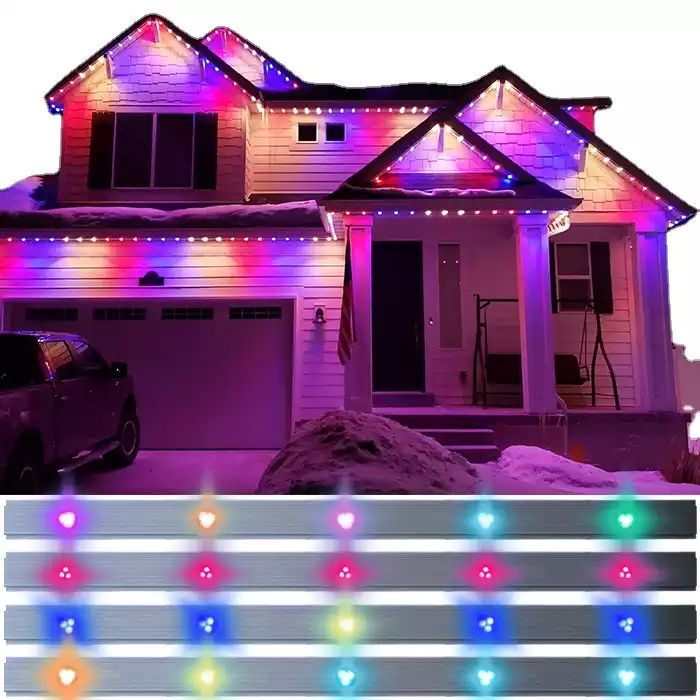

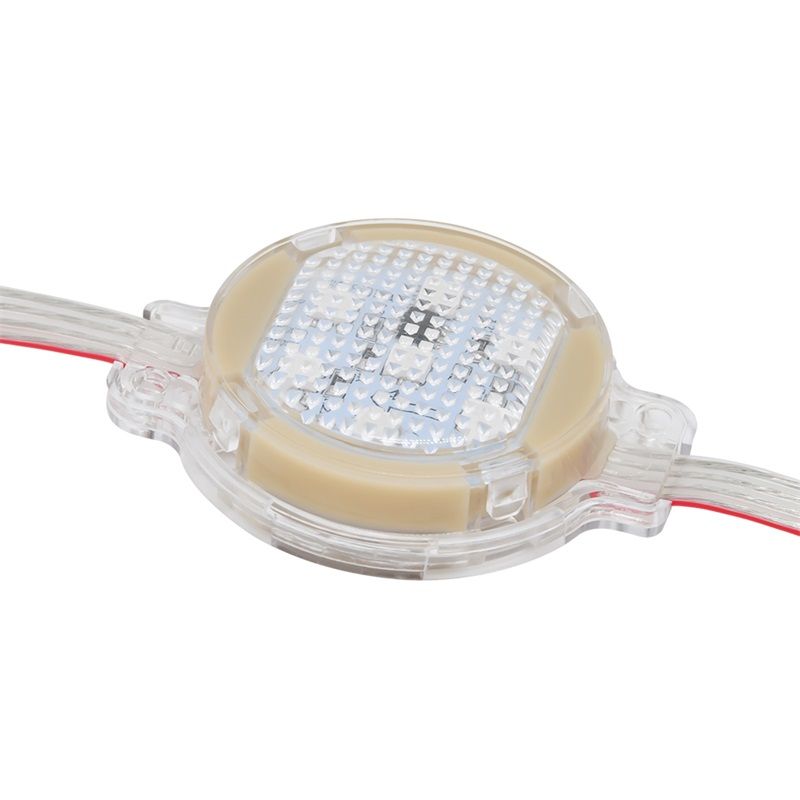

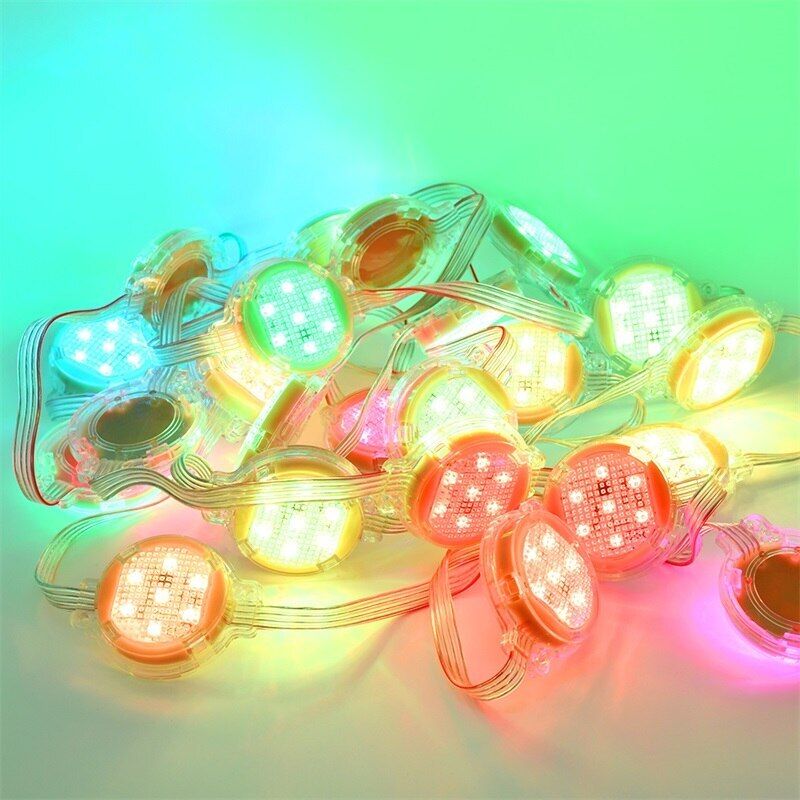

LED Christmas house decorative lights, suitable for Christmas decoration of the outer environment of the house, support IP68 grade safety protection, in extreme cold and hot environment can be used normally, and the working life of up to 50,000 hours, can be manufactured 12V/24V. 7 lights per meter, using RGB5050 multi-color lamp beads, very suitable for the holiday atmosphere, easy to install.

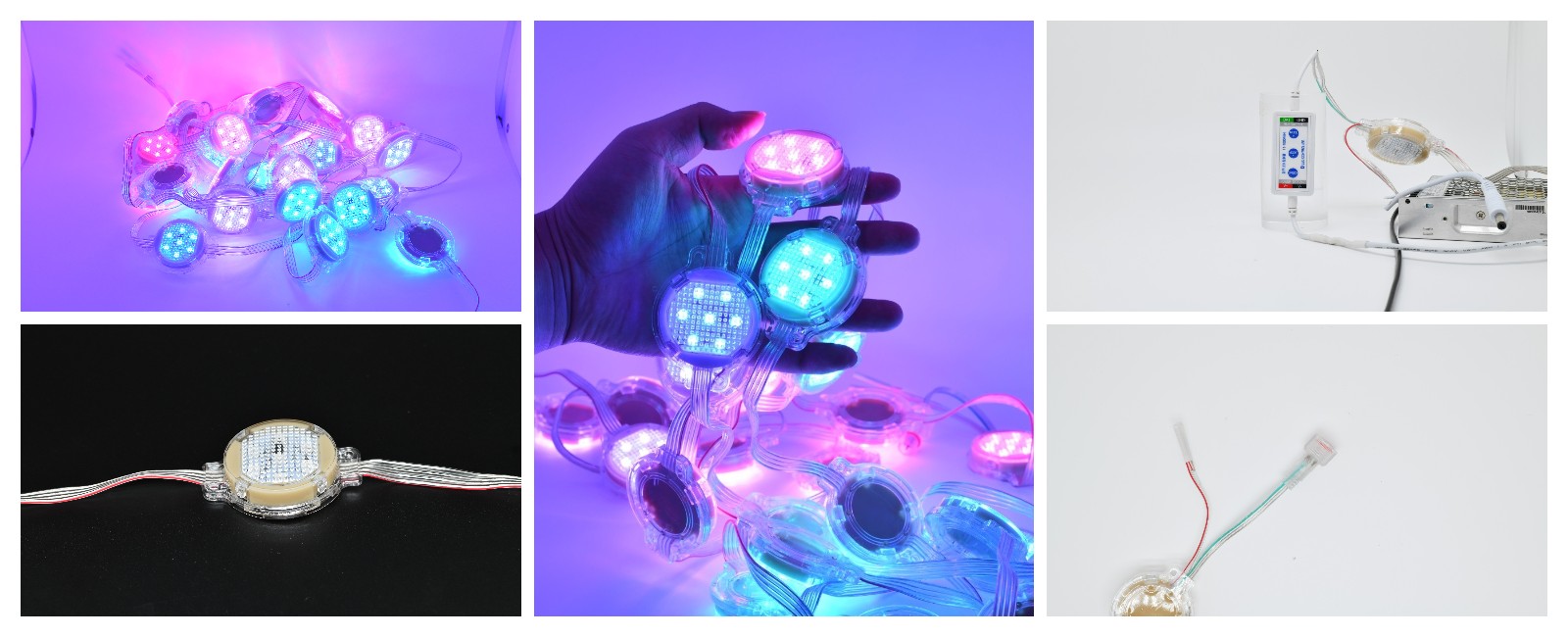

rgb_outdoor

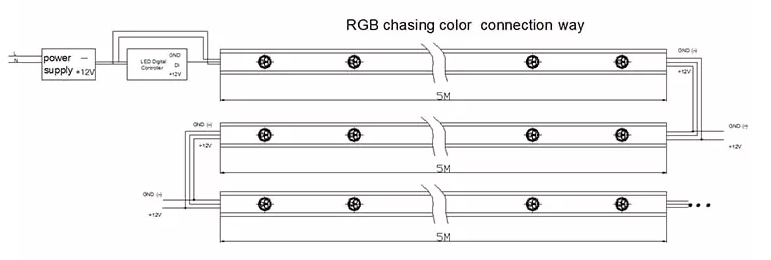

The selction of Power supply and controller:
According to different models of the LED Point light source, select the right connection way forinstallation. In each connection diagram, the choice of power supply is calculated according to therequired number of LED Point light source.The total power of the power supply = the power of asingle Point light source * the number of Point light source N* 1.3, generally 30% of the totalamount of power, if the total power of the LED Point light source is much larger than one powersupply ,then use two or more power supplies for them.


Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Product Model GK5025
Specification size ∅50*H20*L5000mm
LED Package 5050*175PCS
Luminous angle 150°
Drive voltage DC24V
Drive IC: 8206
Lamp body material Plastic
Lamp body color Transparent
Protection level IP65

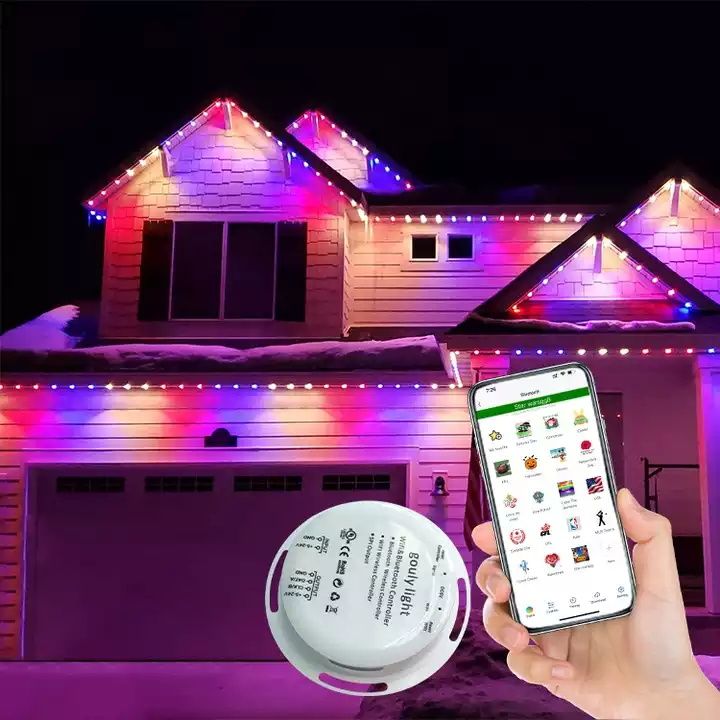

Control Mode Cell phone Bluetooth APP. 110 kinds of built-in dynamic mode free switch
Power W 1.5W*25PCS
Color temperature RGB
Gross weight kg 0.5*36Article=18kg
Packaging 36 strips 50*50*H29cm
Brightness (mcb) / Illumination(LUK) Single light bead red 600-800mcb Single light bead red 800-1000mcb Single light bead red 2500-3000mcb
