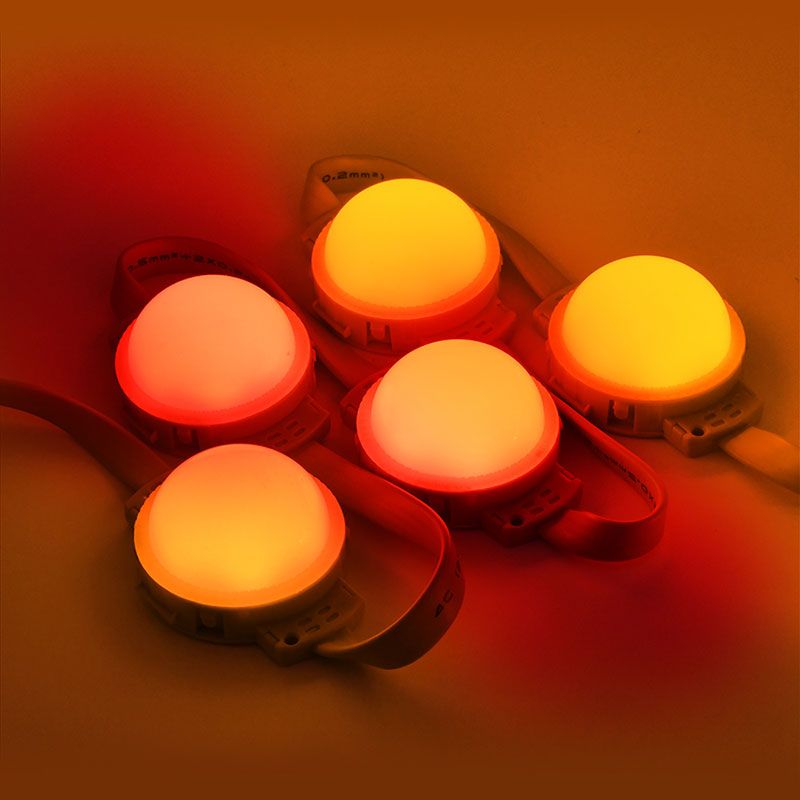

Point light source 50RGB 7PCS Christmas Decoration

Protection class IP68, 24V low voltage, 150 degree light

Product Model 5008PD   5008PS
Specification size ∅50*H15*L45mm

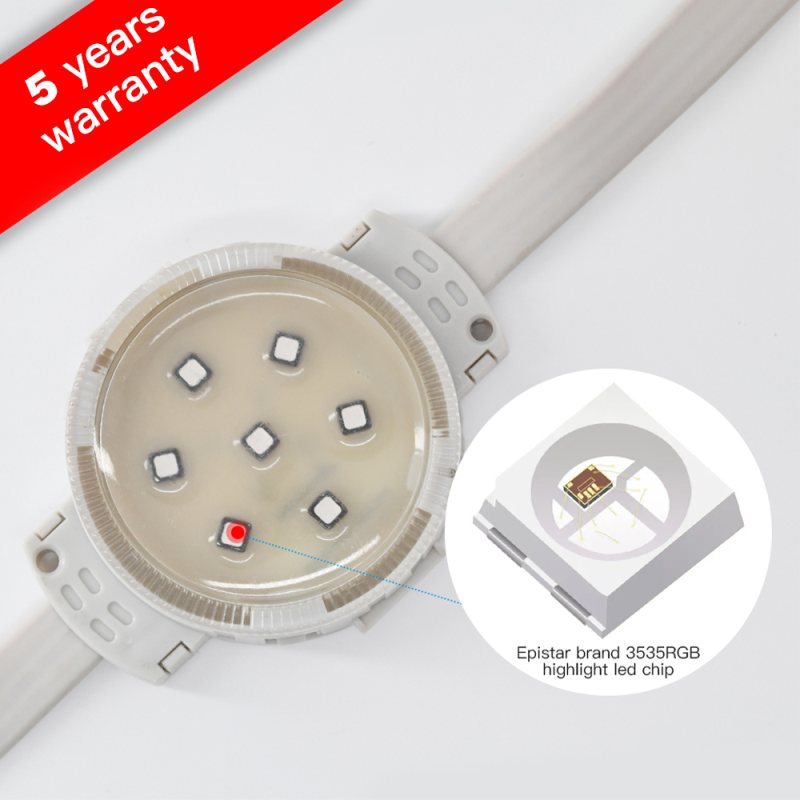

LED Package 3535RGB 3-in-1*7PCS
Luminous angle 150°
Drive voltage DC24V
Drive IC: MT16703/UCS512C3
Lamp body material PC
Lamp body color Transparent
Protection level IP68
Control Mode Cell phone Bluetooth APP. 110 kinds of built-in dynamic mode free switch
Power W 1.25W
Color temperature RGB
Bracket material Copper
Encapsulated wire Alloy Wire
Communication method Constant current driver,DMX512-1990 standard
  • Description
  • Examples
  • FAQ
  • GET FREE QUOTE NOW
  • Why Choose Us

Product Applications.

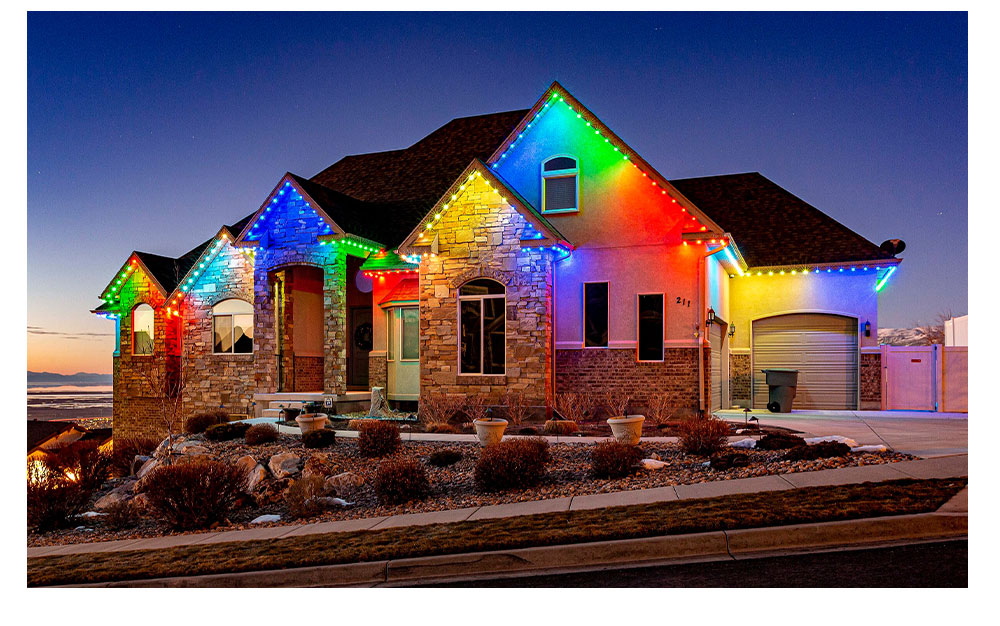

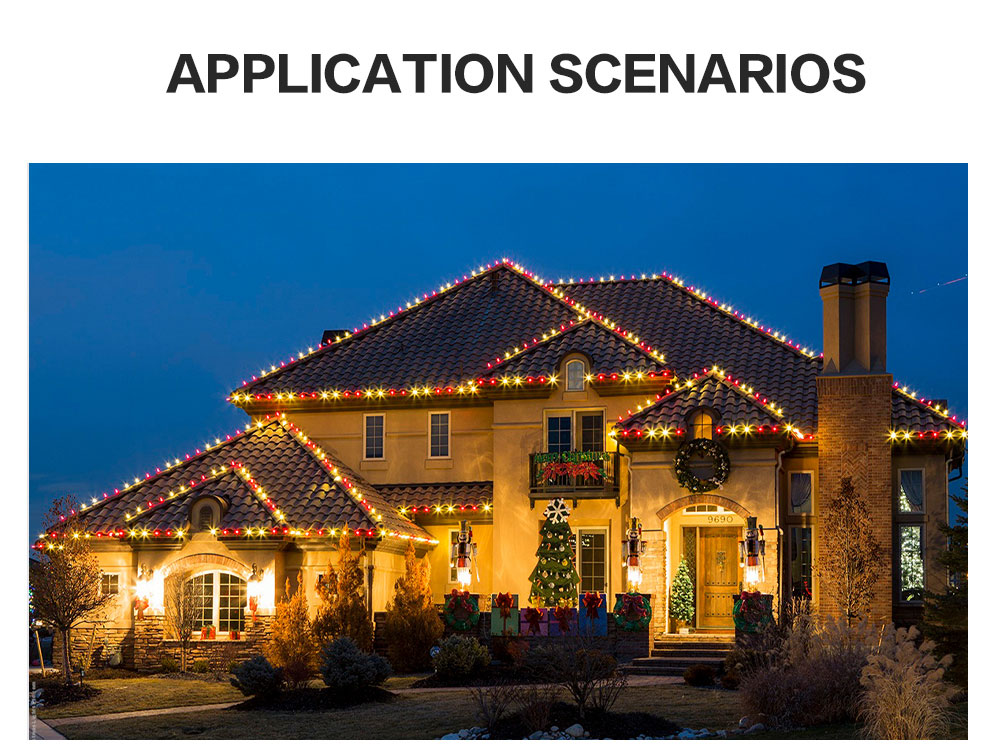

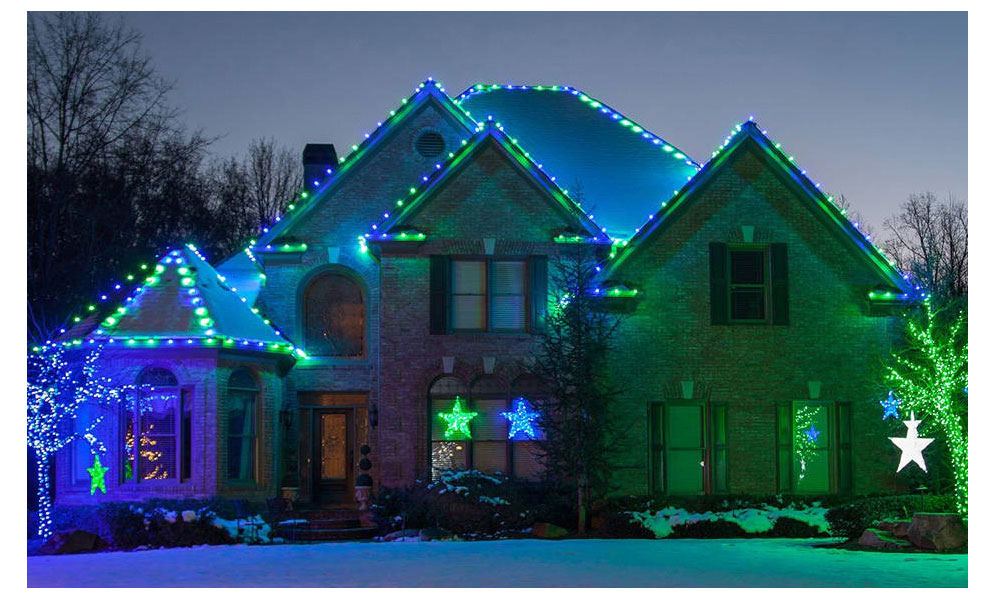

The products are widely used in building illumination. City lighting, signboards, dazzling screen Large luminous characters, bridge outline, KTV, hotels, bars, shopping malls and other entertainment places decoration

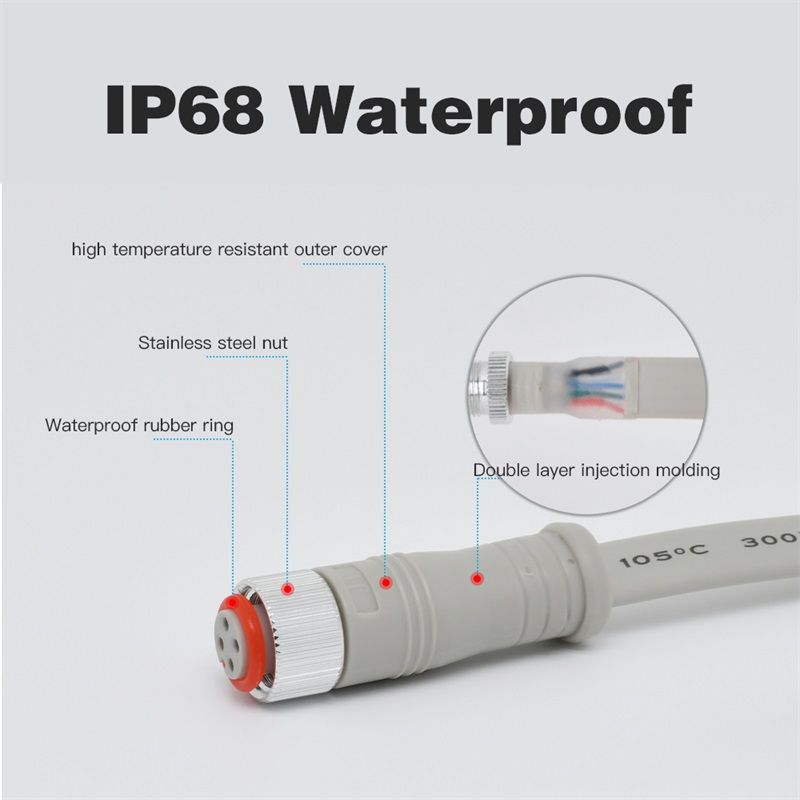

SUPER WATERPROOF

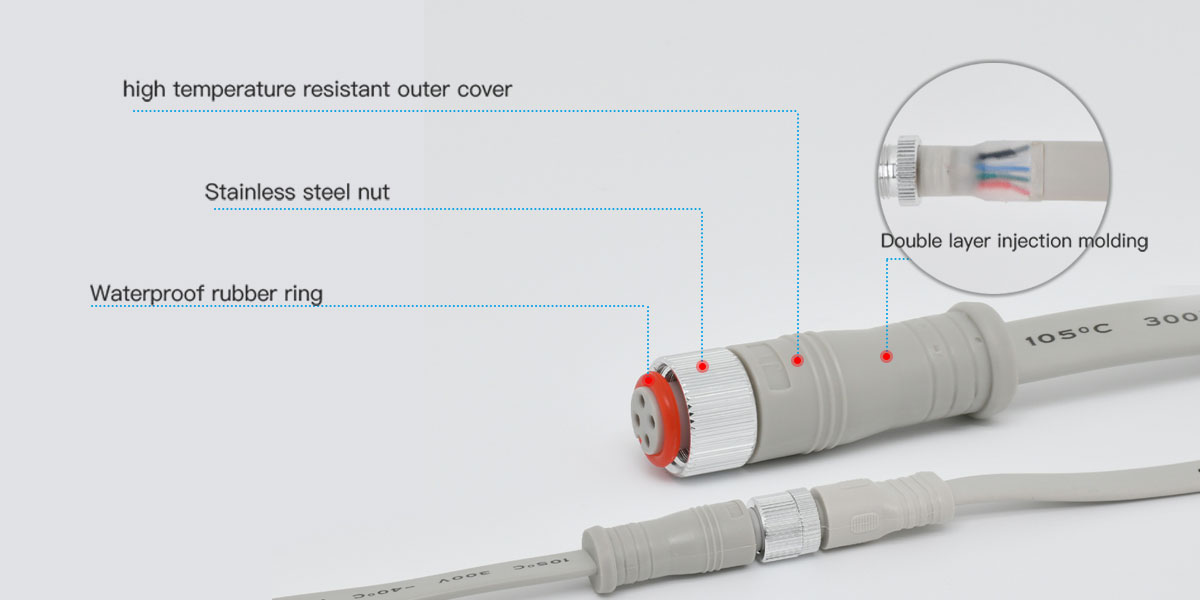

This led pixel light use the brand new high temperature resistant materials,which can withstand - -40 ℃~105 ℃ extreme temperature.The waterproofferrule and rust proof stainless steel are used at the interface,and the waterproof
grade is IP68, so that it can work in extreme outdoor conditions.


point_source power_cord

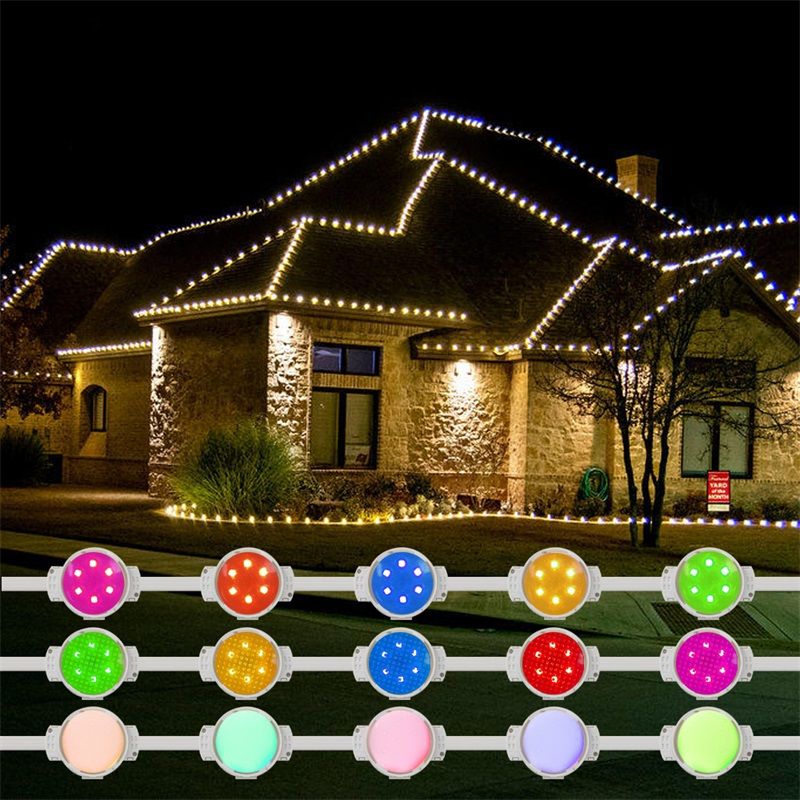

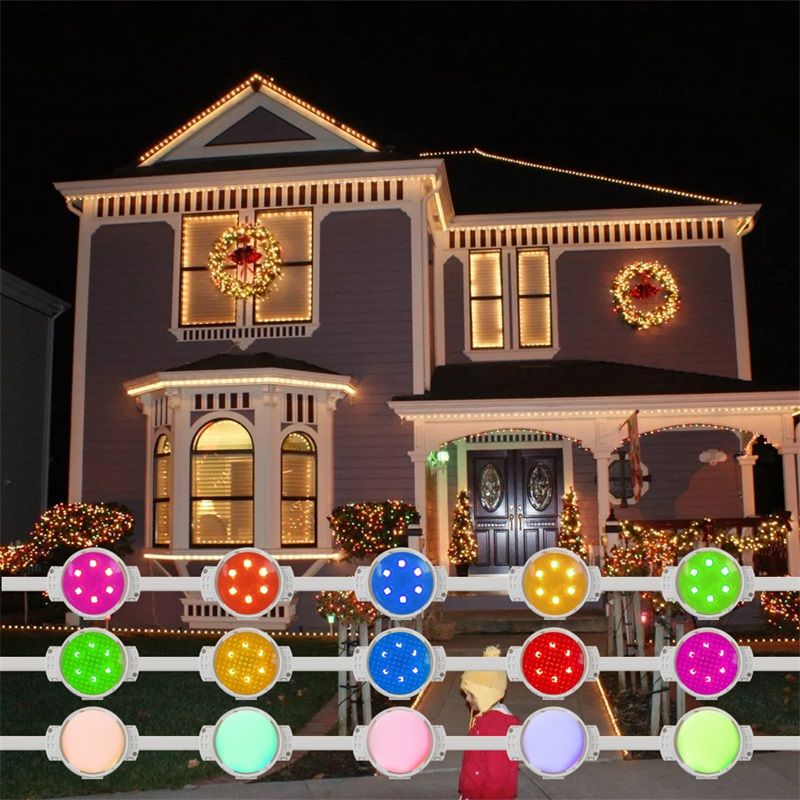

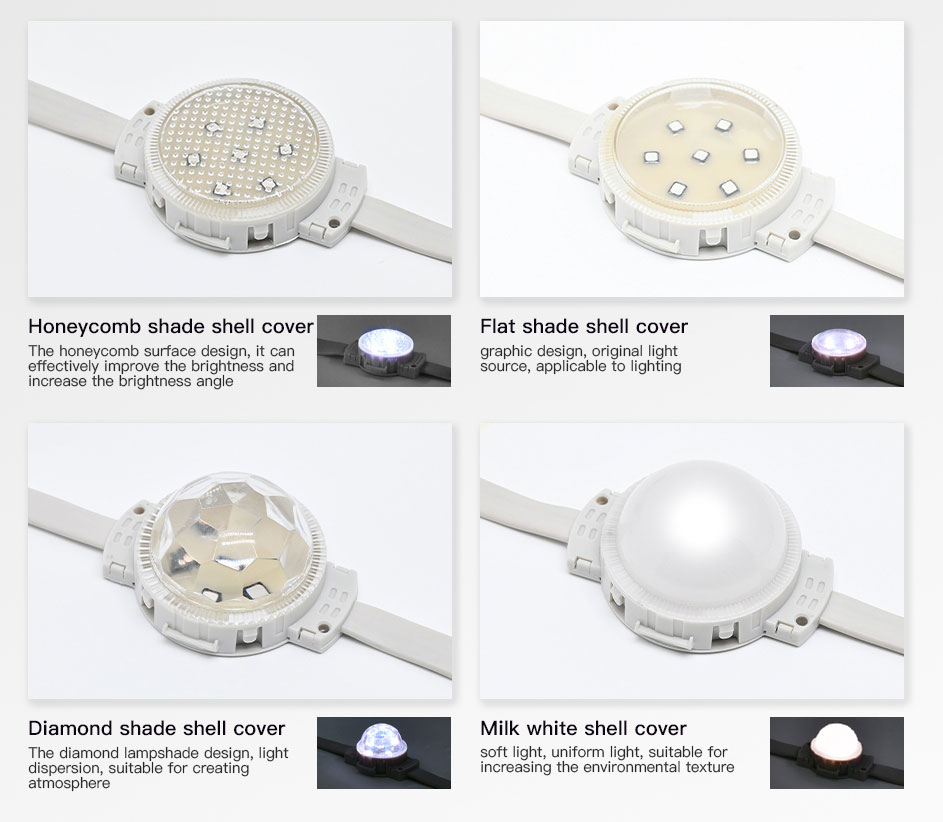

4 kinds of lampshades that can emit different light

We can choose the right type according to your scenario needs or preferences.



4_kinds_of shells

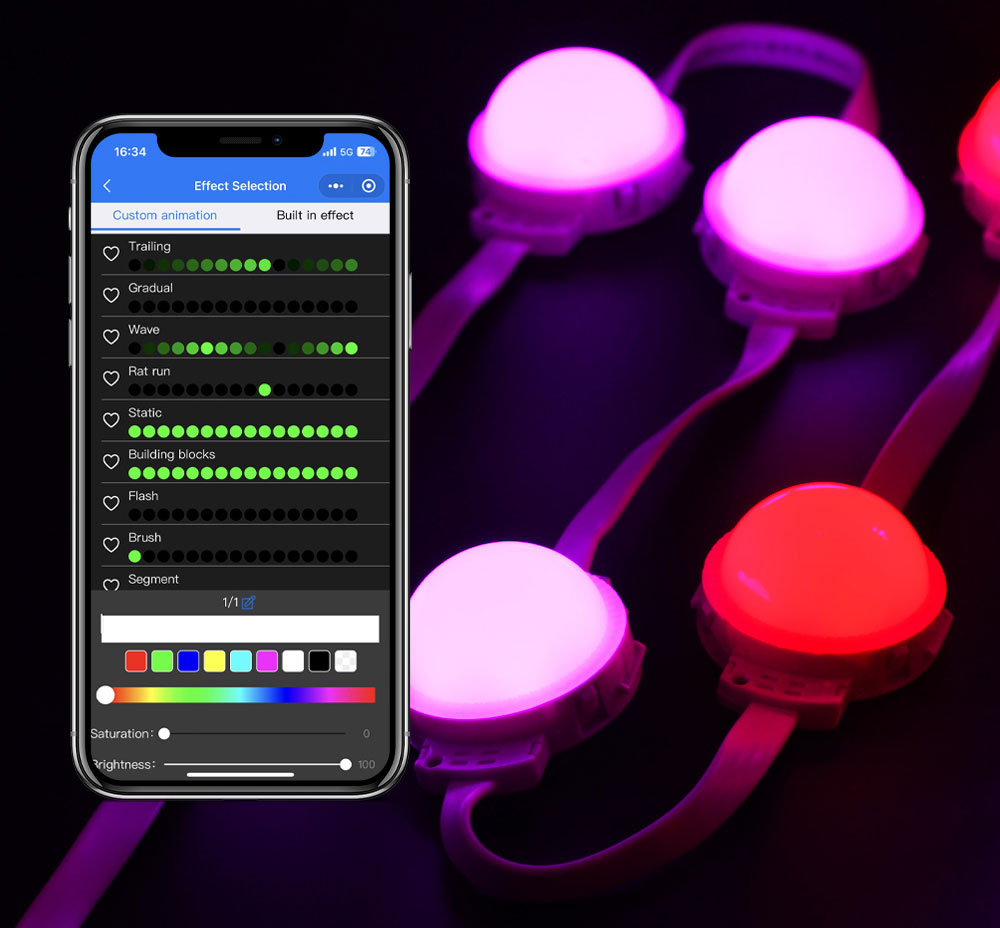

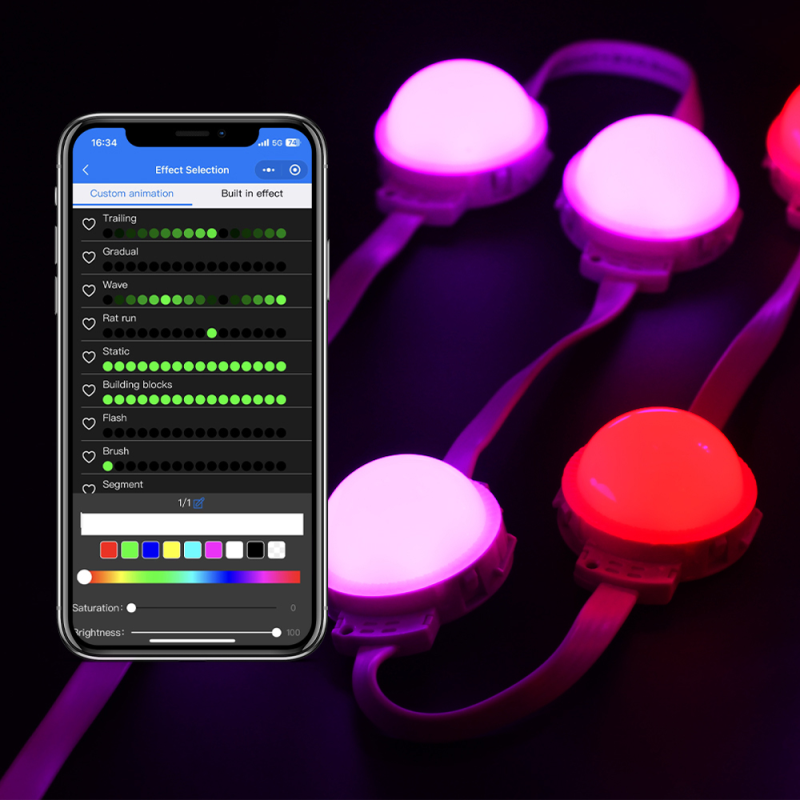

MOBILE APP CONTROL

lntelligent control, multiple modes can be choose at will to easily createthe desired atmosphere. We can customize the light mode to create your
exclusive atmosphere. lt can also be timed.



5

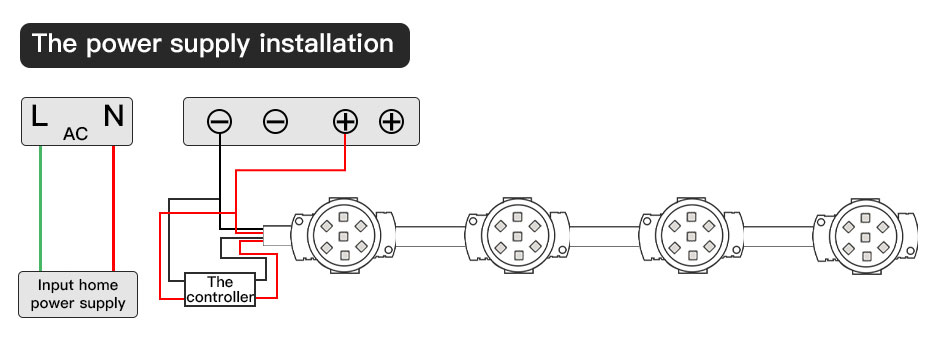

HOW TO INSTALL
Simple installation,even non-professionals can easily connect
7

8_01

8_02

8_03

Q1: What is an LED pixel?

An LED Pixel consists of one or more LED elements, each connected to an integrated control chip. Multiple LED Pixels can be chained together, but addressed independently.



Q2: What is pixel strip?

Pixel tape is flexible circuit board which is populated by multicolored, addressable surface mounted (SMD) light-emitting diodes (LEDs). The flexible circuit board usually has an adhesive backing, which aids with quick and easy installation.



Q3: How does RGB pixel work?

The pixel's RGB data value shows "how much" Red, and Green, and Blue, and the three colors and intensity levels will be combined at that image pixel, at that pixel location. The composite of the three RGB values creates the final color for that one pixel area. In the RGB system, we know Red and Green make Yellow.



Q4: What Colours are pixels?

Technically a pixel can only be three colors: red, green, and blue. However, they can be different intensities of these colors in increments of 1 from 0 to 255 (RGB scale), and thus you can get whatever color you want.



Q5: Can the strip be customized to print our company logo?

Do Yes, the strip light can be customized. We could printed your company logo on the PCB board of strip and Package also could print your company logo.
