Flexible Wall Washer LED Strip 48LEDs/m SMD2835 16W 2700K IP67 Waterproof 15mm PCB Linear Lighting

Flexible Wall Washer LED Strip 48LEDs/m SMD2835 16W 2700K IP67 Waterproof 15mm PCB Linear Lighting

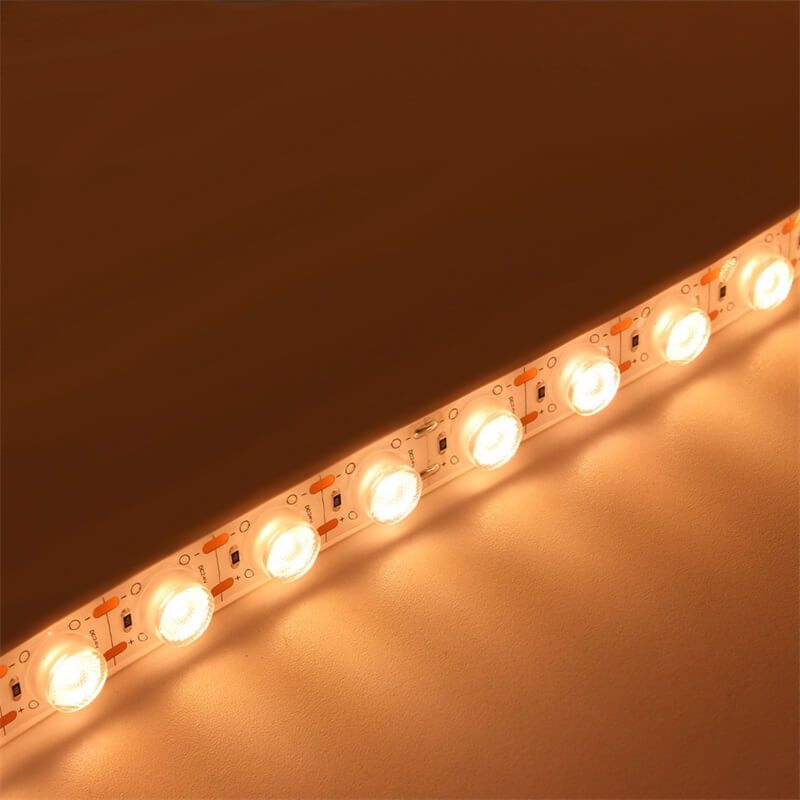

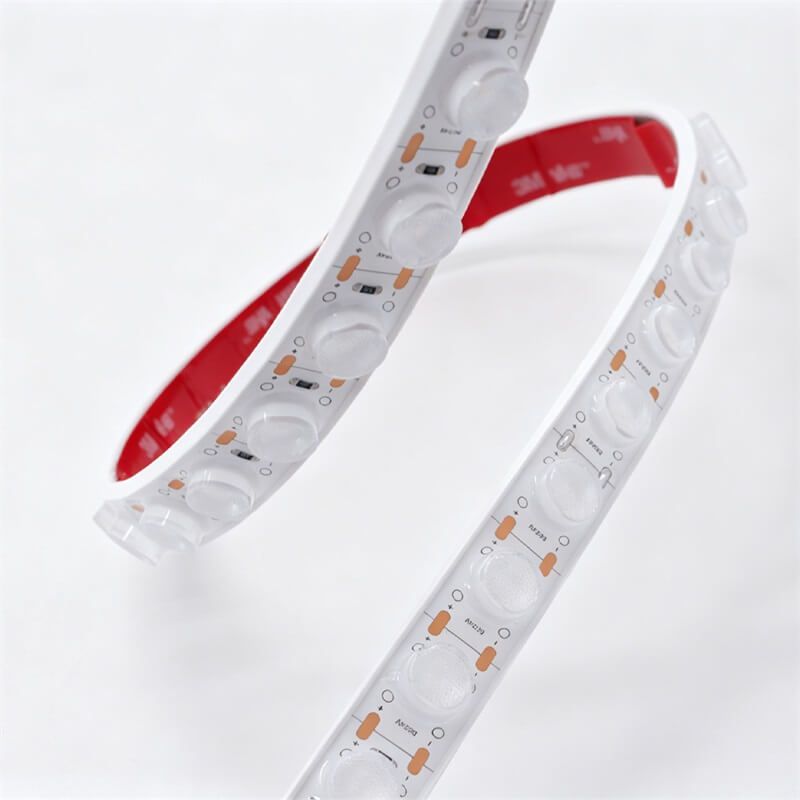

30° Lens Optical Design, Ultra Uniform Wall Washing Effect

In architectural lighting projects, traditional LED strips often fail to deliver true wall-washing performance due to insufficient optical control, uneven light distribution, and poor outdoor durability. Many solutions rely on simple linear light emission, which results in light spill, hotspots, and limited visual depth on building façades.

ZBL developed this Flexible Wall Washer LED Strip to solve these engineering limitations at the system level. By integrating a 30° precision lens structure with high-density 48LEDs/m SMD2835 configuration, the product transforms standard linear lighting into controlled directional wall illumination. Combined with IP67 waterproof silicone protection, it ensures stable performance in long-term outdoor and architectural applications.

This product was engineered for professional lighting designers and contractors who require not just brightness, but optical accuracy, installation reliability, and consistent façade lighting performance in real-world projects.

Get a quote +86 18923408595 info@zbl-lighting.com

Technical Information

Parameter Specification
Product Name Flexible Wall Washer LED Strip
LED Type SMD2835
LED Quantity 48 LEDs/m
Power Consumption 16W/m
Beam Angle 30° Lens Optical
CCT 2700K Warm White
Voltage DC24V
PCB Width 15mm
Waterproof Rating IP67
Cutting Step 20.83mm
Cable 2-pin waterproof cable, 20cm on both sides
Length 5m/roll or customized
Mounting 3M VHB adhesive
Operating Temperature -20°C to +60°C
Application Wall washing, façade lighting, architecture, landscape, commercial projects
Warranty 3 years
