COB RGB LED Strip High density linear 810LEDs/M DC24V
COB RGB LED Strip High density linear 810LEDs/M DC24V - 1
COB RGB LED Strip High density linear 810LEDs/M DC24V - 2
COB RGB LED Strip High density linear 810LEDs/M DC24V - 3
COB RGB LED Strip High density linear 810LEDs/M DC24V - 4
COB RGB LED Strip High density linear 810LEDs/M DC24V - 5
COB RGB LED Strip High density linear 810LEDs/M DC24V - 6
COB RGB LED Strip High density linear 810LEDs/M DC24V - 1
COB RGB LED Strip High density linear 810LEDs/M DC24V - 2
COB RGB LED Strip High density linear 810LEDs/M DC24V - 3
COB RGB LED Strip High density linear 810LEDs/M DC24V - 4
COB RGB LED Strip High density linear 810LEDs/M DC24V - 5
COB RGB LED Strip High density linear 810LEDs/M DC24V - 6

COB RGB LED Strip High density linear 810LEDs/M DC24V

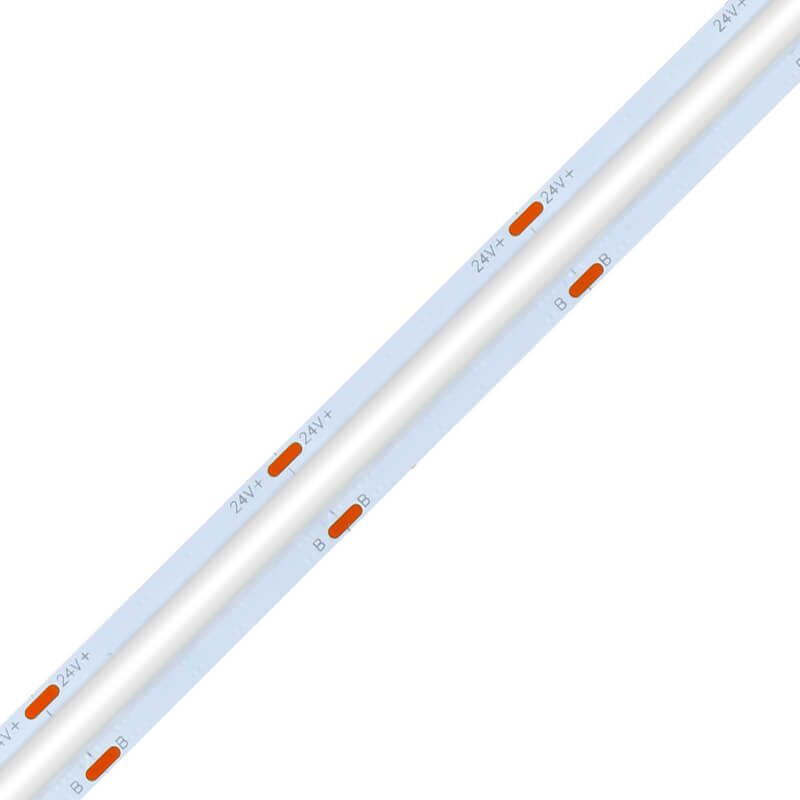

It can be cut along the cutting position

Attribute Value
Origin Shenzhen
Order Number COB-RGB-V24
Type RGB Fantasy
Brand ZBL Lighting
Input Voltage 12V24(V)
LED Chip Brand San'an Optoelectronics
LED Chip Model 5000
Number of LEDs per Meter 810 (pcs/m)
Luminous Flux per LED 22-26 (lm)
Beam Angle 180°
Dimmable Yes
Rated Lifespan 50000 hours
Dimensions 5000*10 (mm)
Weight 43 (g)
Certification UL certification (United States)
Application Outdoor advertising
Special Services Customization of various LED strip specifications
Color Temperature 450 LED-RGB-12V-10mm, 480 LED-RGB-24V-10mm, 576 LED-RGB-V12-10mm, 576 LED-RGB-V24-10mm, 810 LED-RGB-V12-10mm, 840 LED-RGB-V24-10mm, 1134 LED-RGB-V24-10mm, 560 LED-RGB30K-V24-12mm, 560 LED-RGB40K-V24-12mm, 560 LED-RGB65K-V24-12mm, 784 LED-RGB30K-V24-12mm, 784 LED-RGB40K-V24-12mm, 784 LED-RGB65K-V24-12mm, 896 LED-RGB30K-V24-12mm, 896 LED-RGB40K-V24-12mm, 896 LED-RGB65K-V24-12mm, 560 LED-RGBCCT-V24-12mm, 840 LED-RGBCCT-V24-12mm (K)
Color Rendering Index 80
Main Sales Regions China, Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East
Own Brand Authorization Yes
Series COBRGB
Power 15W/m, 20W/m
Minimum Packaging 5 meters
Switch Type Remote control
Customizable Protection Level IP20/IP54/IP65/IP67
Customizable Voltage 5V
Customizable PCB Thickness 2oz/3oz/4oz
  • Description
  • Examples
  • FAQ
  • GET FREE QUOTE NOW
  • Why Choose Us

Introduction:
Introducing our cutting-edge COB RGB LED strip, a revolution in lighting technology. With an impressive density of 810 LEDs per meter and operating at a low voltage of 24V, this innovative lighting solution opens up a world of creative possibilities. Get ready to immerse yourself in mesmerizing color combinations, dynamic effects, and stunning visual experiences that will transform any space into a captivating wonderland.



Unmatched Brilliance and Efficiency:
Harnessing the power of Chip-on-Board (COB) technology, this RGB LED strip delivers unparalleled brightness and color accuracy. Each COB module consists of multiple LED chips densely packed together, resulting in a seamless and continuous lighting output. With 810 LEDs per meter, this strip radiates vibrant illumination that fills the room with stunning colors.



Limitless Color Customization:
Experience the freedom to explore and create your desired lighting ambiance. The COB RGB LED strip offers a wide spectrum of colors, allowing you to effortlessly switch between rich hues, subtle pastels, and everything in between. With precise color control, you can set the mood for any occasion, be it a relaxing evening, an energetic party, or a professional setting.



Dynamic Lighting Effects:
Take your lighting to new heights with dynamic effects that captivate the senses. The COB RGB LED strip enables you to unleash a variety of mesmerizing effects such as color fading, smooth transitions, pulsating patterns, and captivating color chasing sequences. With adjustable speed and intensity, you have full control over the tempo and ambiance, creating an immersive environment tailored to your preferences.



Seamless Integration and Versatility:
Designed for seamless integration into any lighting project, the COB RGB LED strip offers versatile installation options. Its flexible PCB allows for easy bending and shaping around curves, corners, and various surfaces. Whether you're illuminating architectural elements, highlighting artwork, or creating eye-catching signage, this LED strip effortlessly adapts to your creative vision.



Efficient and Durable:
In addition to its stunning performance, the COB RGB LED strip prioritizes energy efficiency and longevity. With its low-voltage DC24V operation, it consumes minimal power while delivering impressive luminosity. The advanced thermal management system ensures optimal heat dissipation, guaranteeing a longer lifespan and consistent performance.



Endless Applications:
The versatility of the COB RGB LED strip opens up a myriad of applications. From residential settings to commercial installations, the possibilities are boundless. Create captivating lighting displays for restaurants, bars, hotels, retail spaces, event venues, and architectural projects. Let your imagination run wild and elevate the aesthetics of any environment.



Conclusion:
Unleash the full potential of illumination with our revolutionary COB RGB LED strip. Experience a world of vibrant colors, dynamic effects, and limitless creativity. Whether you're a lighting enthusiast, designer, or business owner, this cutting-edge technology will transform your space into a captivating visual masterpiece. Elevate your lighting game and explore the endless possibilities with our COB RGB LED strip.

CUSTOM SOLUTION

Looking for a COB LED strip that perfectly suits your needs? Look no further! Our team offers a wide range of customization options for COB LED strips to meet your every requirement. Whether it's for a specific project or a particular application, we have the solution for you. Contact us today and let us help you create the perfect COB LED strip that meets all your needs and exceeds your expectations. With our dedication to quality and customer satisfaction, you can be confident that you will get the best product possible.
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
The shear length 10MM 20MM 23.81MM 25MM 26.31MM 31.26MM 41.66MM45.45MM 5OMM …
LED Quality 240leds 320leds 384leds 480leds 528leds 600leds 608leds 756leds 768leds 784leds …
Voltage 5V 12V 24V 36V 110V 220V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K RGB RGBW RGBIC RGBCW…
Photoeffciency >80Lm/W >100Lm/W …
Power(w/m) 7W/M 8W/M 1OW/M 11W/M 14W/M 18W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …
PCB Print UL CE ROHS LOGO …

THE LIGHTING COLORSARE MORE REALISTIC

The display index of > 90 is adopted to make the light emitted more like natural light and restore the original light color

DOUBLE PCB
MANUFACTURING PROCESS

The PCB is made of 3570 rolled copper, which is more flexible, theovercurrent can reach 2.5A-3A, and the daily use temperature is lower, sothat the five-meter voltage of the LED strip light is reduced, Consistentbrightness from beginning to end. The photosensitive ink on the surface ofthe led strip light can effectively improve the brightness of the led strip light.

COB color Kelvins

COMPARISON BETWEEN
SINGLE PCB BOARD
AND DOUBLE PCB BOARD

ZBL LED strip light adopts double PCB board design, which is more flexible ofthe LED strip light, can cope with various bends, and has better conductivitythan many products on the market, thus greatly prolonging the service life ofthe led strip light.

COB PCB

MULTIPLE AUTHENTICATION

Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

LAMP BELT ADAPTER

A variety of led light strip Connector can meet all conversion installation needs.

THE LAMP WITHWATERPROOF

According to customers'requirements,the required waterproof rating can be made.

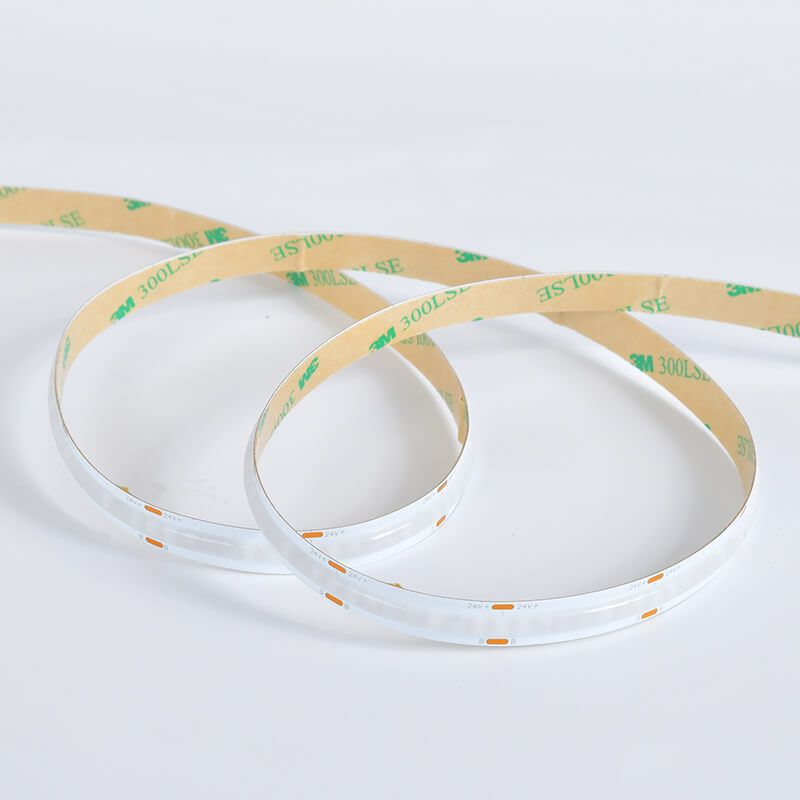

3M DOUBLE-SIDED ADHESIVE

ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.

ABOUT US

Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.


ZBL Lighting Team

EXHIBITION

Since its establishment to participate in a number of exhibitions

Customer Testimonials

led strip light shipping method

led strip light shipping

Hotel, Superstore, Backlight, Stairs, Indoor, Outdoor

cobrgb_application

Question 1: How do I install the COB RGB 810LEDs/m DC24V strip?

Answer: Installing this strip is straightforward. You can use double-sided tape or mounting brackets to secure the strip onto the desired surface. Ensure proper alignment and make sure the strip is firmly attached.



Question 2: Can I cut the COB RGB 810LEDs/m DC24V strip to a specific length?

Answer: Yes, you can cut the strip at designated cutting points to achieve your desired length. Make sure to follow the manufacturer's instructions and use the appropriate tools to cut the strip accurately.



Question 3: What type of power supply is required for the COB RGB 810LEDs/m DC24V strip?

Answer: This strip operates on a DC24V power supply. It is essential to use a compatible power supply that can provide sufficient power to drive the strip without overloading it. Check the strip's specifications and consult the manufacturer for the recommended power supply.



Question 4: How can I control the colors and effects of the COB RGB 810LEDs/m DC24V strip?

Answer: There are various control options available for this strip. You can use a dedicated RGB controller, wireless remote control, or even integrate it into a smart home automation system. The chosen control method will depend on your preference and the desired level of functionality.



Question 5: Can I dim the brightness of the COB RGB 810LEDs/m DC24V strip?

Answer: Yes, this strip is typically compatible with dimming functionality. You can use a compatible dimmer controller to adjust the brightness levels according to your preference. Ensure that the dimmer controller is compatible with the strip and the power supply used.



Question 6: Is the COB RGB 810LEDs/m DC24V strip waterproof?

Answer: The waterproofing of the strip may vary depending on the specific product variant. Some strips are designed for indoor use only and may not be waterproof, while others may have an IP65 or higher rating, making them suitable for outdoor applications. Check the product specifications or consult the manufacturer for the strip's waterproofing capabilities.



Question 7: Can I connect multiple COB RGB 810LEDs/m DC24V strips together?

Answer: Yes, you can connect multiple strips together to achieve longer lengths or create intricate lighting setups. Follow the manufacturer's guidelines for proper connection methods, such as using connectors or soldering, and ensure that the power supply can handle the combined load of the connected strips.



Question 8: Are there any safety precautions I should consider when using the COB RGB 810LEDs/m DC24V strip?

Answer: It is important to adhere to safety guidelines when working with any electrical product. Ensure that the power supply and installation comply with local electrical regulations. Avoid exposing the strip to excessive heat or moisture, and handle it with care during installation and maintenance.



Question 9: Can I use the COB RGB 810LEDs/m DC24V strip for professional lighting applications?

Answer: Yes, this strip is suitable for both residential and commercial lighting applications. Its high LED density and color versatility make it ideal for architectural lighting, retail displays, event setups, and other professional installations. Consult the manufacturer or a lighting professional for specific project requirements.



Question 10: How long is the lifespan of the COB RGB 810LEDs/m DC24V strip?

Answer: The lifespan of the strip can vary depending on usage and operating conditions. However, with proper installation and regular maintenance, these strips are designed to have a long lifespan, typically ranging from 30,000 to 50,000 hours.

Get a quote now

Our sales will reply to you within 2 hours.

Why Choose Us
  • 5-year warranty, 24-hour online service

  • Strong R&D team to make your products more competitive

  • Fully automatic LED intelligent production equipment with a monthly capacity of 20 million meters to ensure on-time delivery

  • More than 20 authoritative institutions certified, professional production of light strips for 11 years.

  • Adopting high quality accessories and rigorous testing in multiple processes.
