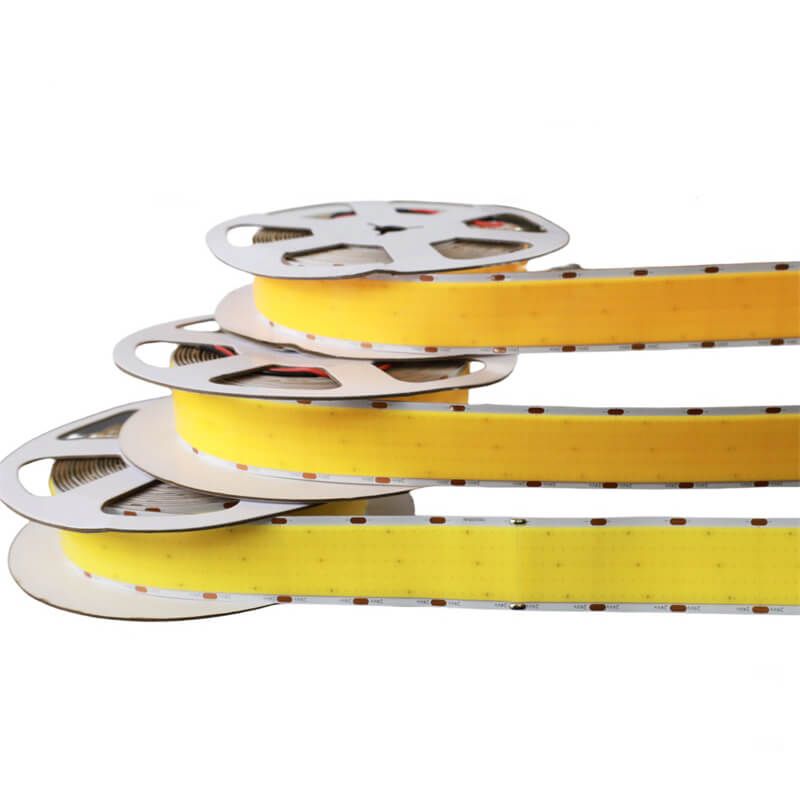

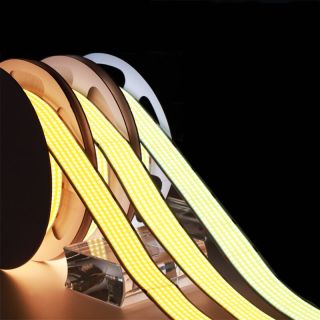

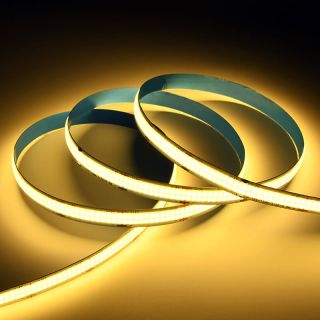

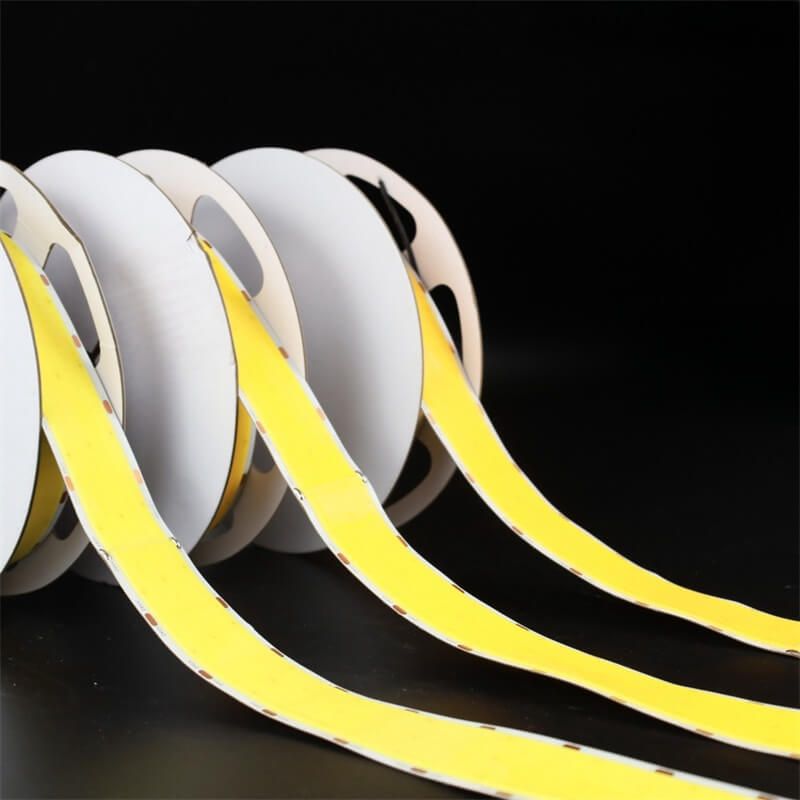

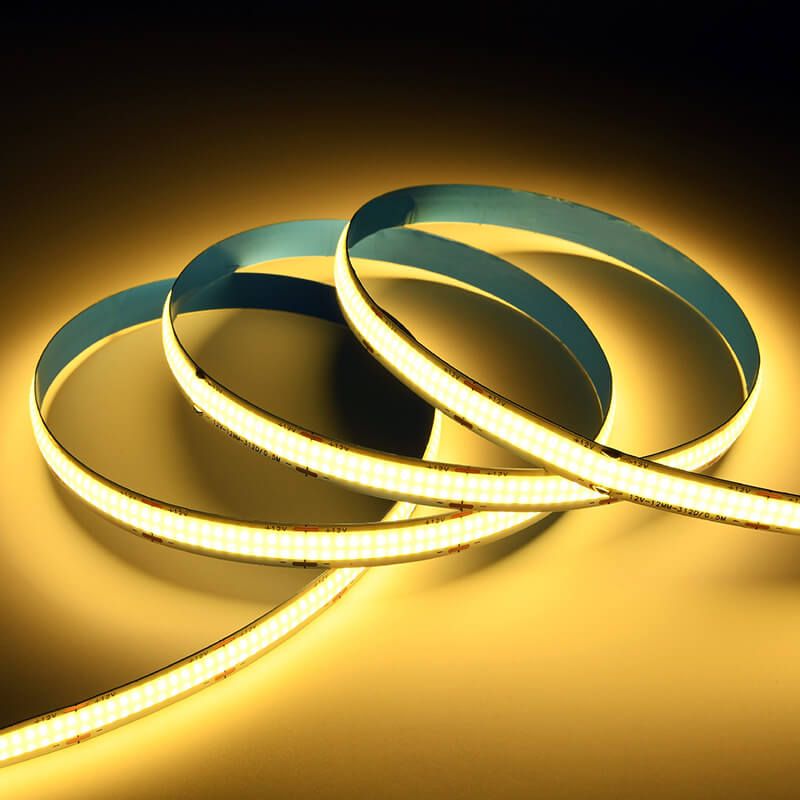

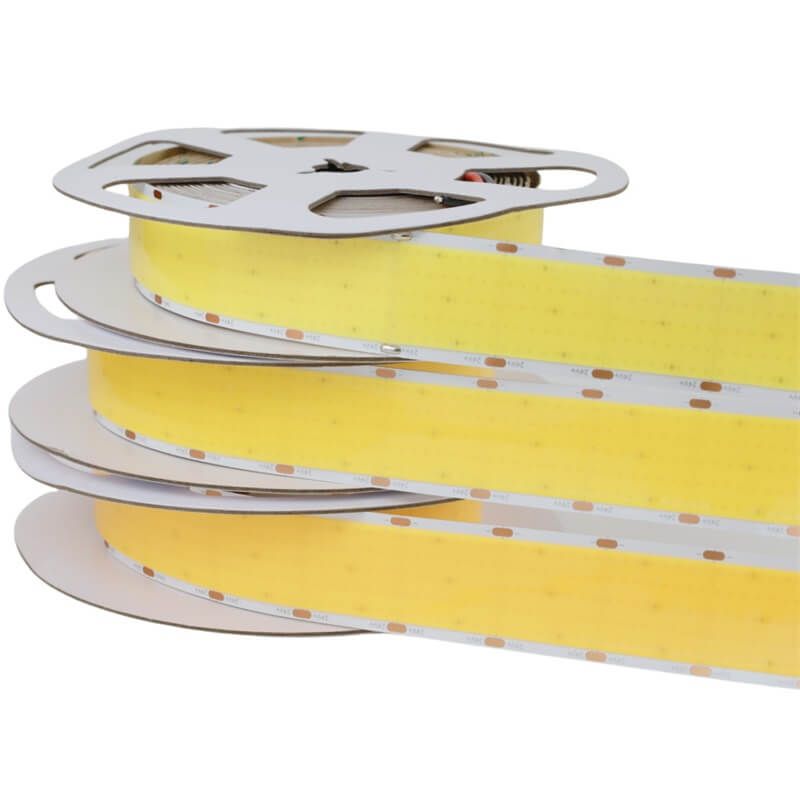

30mm Extra wide cob led strip
At ZBL Lighting, we developed this 5-Row COB LED Strip to solve the common challenges faced in high-end linear lighting projects: insufficient brightness, visible light dots, uneven illumination, and limited coverage from traditional LED strips. By combining a 30mm ultra-wide PCB design with a 5-row high-density COB chip layout, this strip delivers exceptional brightness up to 40W/m while maintaining a smooth, dot-free continuous light effect. With CRI90+ high color rendering, it brings more natural and vivid colors to commercial spaces, retail displays, hotels, architectural lighting, and premium residential projects. This innovative design provides lighting designers and contractors with a powerful yet flexible solution that reduces installation complexity, improves visual quality, and creates seamless linear lighting experiences that traditional LED strips cannot achieve.
Compare more COB LED strip options, read our guide to COB and SMD light uniformity, or discuss custom COB strip specifications.
| Item | Specification |
|---|---|
| Product Name | 5-Rows COB LED Strip Light |
| Model No. | ZBL-COB-5R-30MM |
| LED Type | COB (Chip on Board) LED Technology |
| LED Density | High Density COB Chips (5 Rows Design) |
| PCB Width | 30mm Ultra Wide Flexible PCB |
| Input Voltage | DC 24V |
| Power Consumption | 40W/m |
| Luminous Efficiency | High Brightness Linear Lighting Output |
| Color Rendering Index (CRI) | ≥90 |
| Color Temperature (CCT) | 2700K / 3000K / 4000K / 6000K (Customized) |
| LED Color | Single Color (White / Red / Green / Blue / Customized) |
| Light Effect | Dot-Free Continuous Illumination |
| Beam Angle | 180° |
| PCB Type | Double Layer Flexible PCB |
| Cutting Unit | Customized Cutting Length |
| LED Lifetime | ≥50,000 Hours |
| Working Temperature | -20℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| IP Rating | IP20 / IP65 / IP67 / IP68 (Optional) |
| Dimming | PWM / 0-10V / DALI / DMX (Compatible with Controller) |
| Installation Method | 3M Adhesive Tape / Aluminum Profile Mounting |
| Maximum Running Length | According to voltage drop design |
| Certification | CE / RoHS / UL (Optional) |
| Warranty | 3-5 Years (According to Application Conditions) |

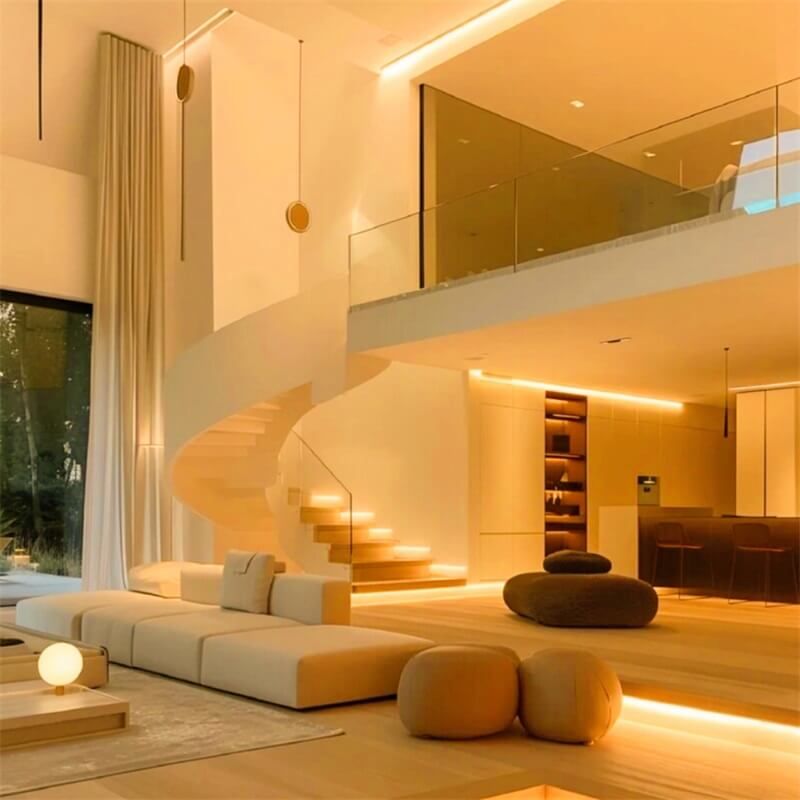

| Application | Architectural Lighting, Commercial Lighting, Hotels, Retail Displays, Cabinet Lighting, Linear Lighting Projects |

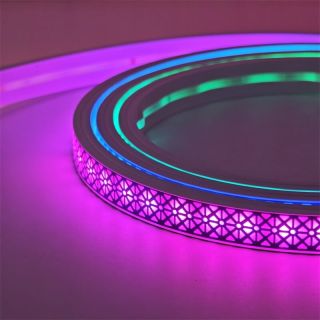

More similar products of this series of LED strip lights
