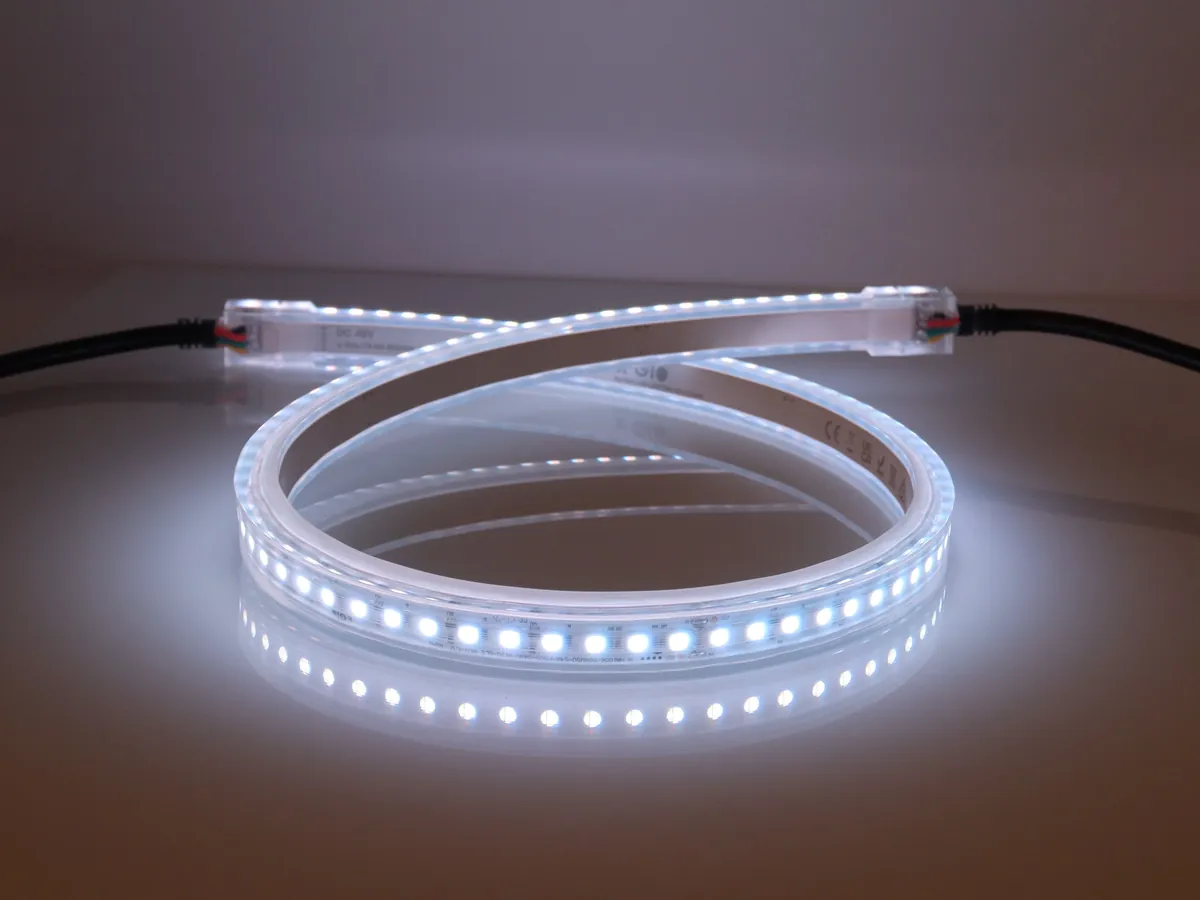

48V RGBW signal strip · 3000K white channel · up to 140 m
Combines multicolor status signalling with a dedicated 3000K white channel for locations that need both visual communication and a low-level working-light mode. The 48V platform is intended for larger zones where a 24V RGB circuit would require more frequent power injection.
Unlike standard RGB, the independent warm-white channel produces a more useful white scene without mixing all three color channels. Its low 4W/m load and reference run up to 140 m support long industrial status lines with controlled power demand.
Specify it for long route indication, equipment status and combined signal/task-light zones. Controller channel capacity, default start-up state and failure behavior must be agreed before production.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 48V DC |
| Light output | 195 lm/m, combined RGBW reference |
| Power | 4 W/m |
| Luminous efficacy | 48.75 lm/W |
| LED configuration | 96 SMD5050 LEDs/m |
| Light color | RGBW with 3000K dedicated white channel |
| CRI | >80 for dedicated white channel; not applicable to RGB colors |
| Maximum reference run | Up to 140 m with approved controller and feed design |
| Recommended mounting height | 5–6 m |
| Ambient operating range | -20°C to 55°C |
| Reference illuminance | 18.04 lx average at 2 m in a 3 m × 3 m tunnel model |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
