48V industrial strip · 1080 lm/m · 200 m reference run · CRI 80+

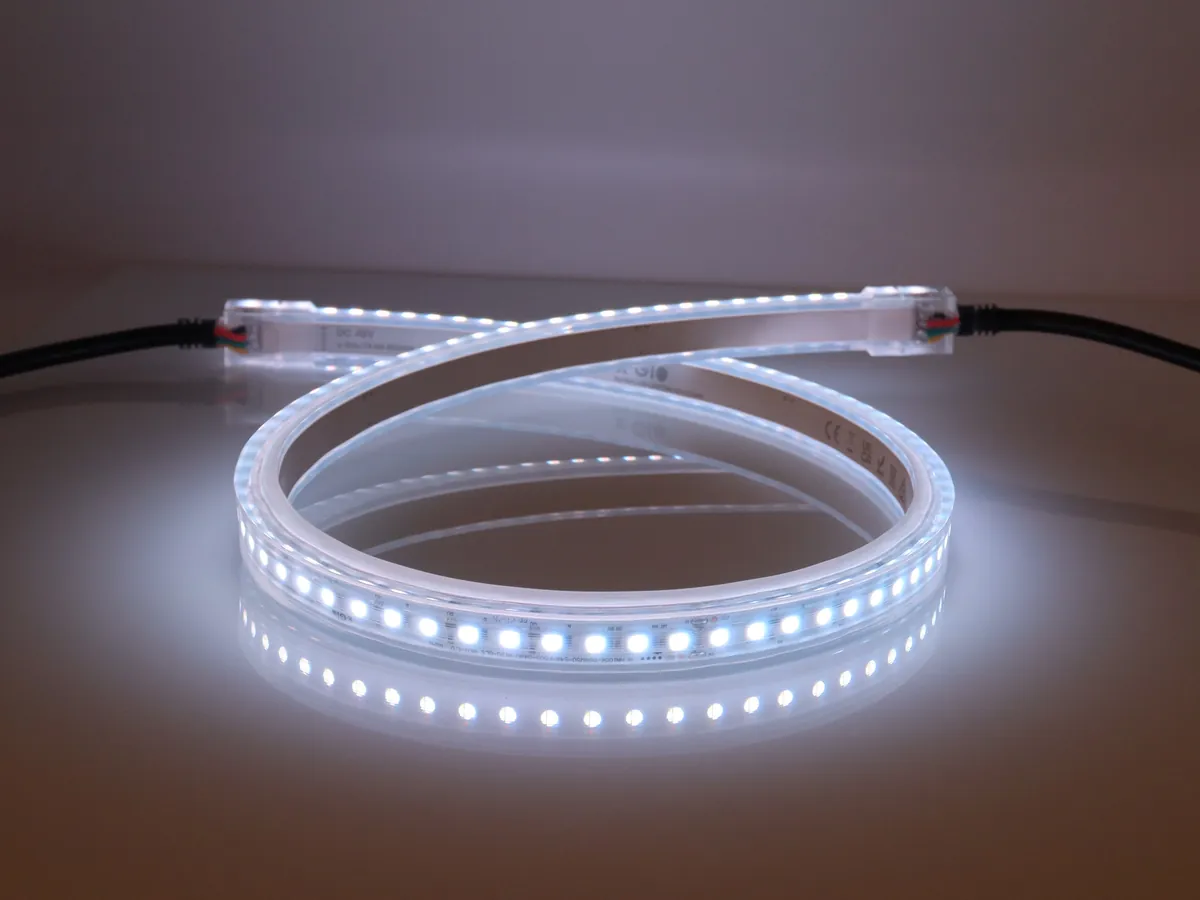

Built for long industrial routes that need more output than a guidance-only strip. This 48V configuration combines 1080 lm/m, 72 SMD2835 LEDs/m and 12W/m, making it suitable for conveyors, service corridors, infrastructure edges and large utility spaces.
It provides the highest white-light output in this imported industrial group while retaining a reference run up to 200 m. The 48V architecture reduces current over distance, and the denser LED layout produces a more continuous visual line.
Select it where long runs and usable illumination are both required. The final system should divide the route into maintainable electrical sections even when the calculated run length permits a longer continuous circuit.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 48V DC |
| Light output | 1080 lm/m |
| Power | 12 W/m |
| Luminous efficacy | 90 lm/W |
| LED configuration | 72 SMD2835 LEDs/m |
| Color temperature | 6500K standard |
| CRI | >80 |
| Maximum reference run | Up to 200 m with approved power and feed design |
| Recommended mounting height | 5–6 m |
| Ambient operating range | -20°C to 45°C |
| Reference illuminance | 79.81 lx average at 2 m in a 3 m × 3 m tunnel model |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
