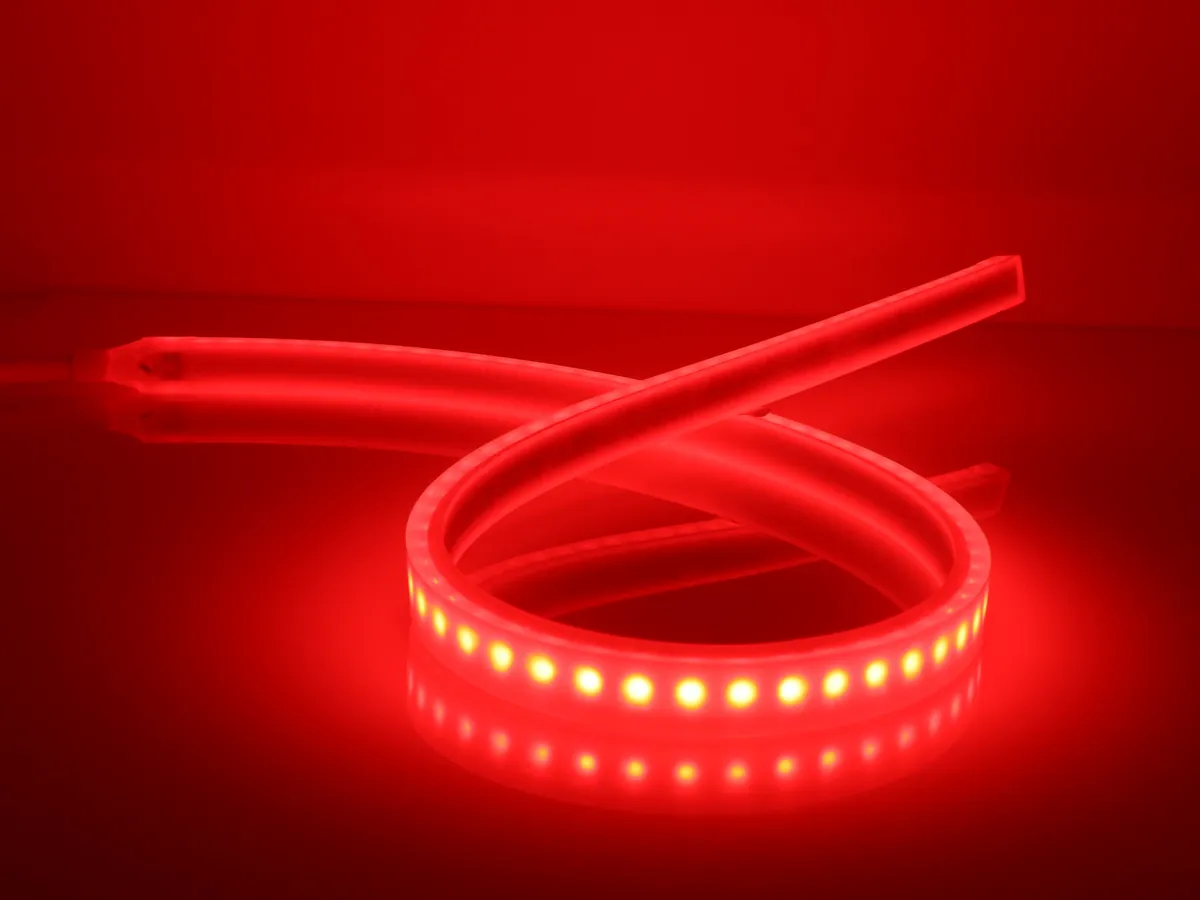

48V hazardous-area strip · 1000 lm/m · lower-current long-route design
A 48V DC hazardous-area linear light intended for classified projects where supply distance and conductor losses influence the system architecture. It delivers 1000 lm/m from 84 SMD2835 LEDs/m while keeping the sealed 20 × 10 mm silicone profile used across the hazardous-area family.
Its main advantage is the lower circuit current available from a 48V design at a comparable wattage, which can simplify voltage-drop management on larger industrial layouts. The product retains the 500 mm internal PCB sections, 300 mm minimum bend diameter and silicone 18AWG connection cable.
Choose it for larger classified routes after the power architecture, isolation points and certification documents have been reviewed. The 20 m product reference run does not remove the need for a complete cable and protection calculation.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 48V DC |
| Light output | 1000 lm/m |
| Power | 12 W/m |
| LED configuration | 84 SMD2835 LEDs/m |
| Color temperature | 6500K near daylight |
| Maximum reference run | 20 m |
| Dimensions | 20 mm wide × 10 mm high |
| Internal PCB section | 500 mm |
| Extrusion material | Food-grade silicone |
| Minimum bending diameter | 300 mm |
| Connection cable | Silicone cable with 18AWG, 2-core conductors |
| Operating temperature | Project range to be confirmed; source design references -30°C to +40°C ambient |
| Referenced compliance | EN 60598, EN 62493, EN 55015, EN 61547, EN 61000 and RoHS; exact reports confirmed per quoted model |
| Power supply requirement | Power equipment selected to EN 61347-2-13 and project classification |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
