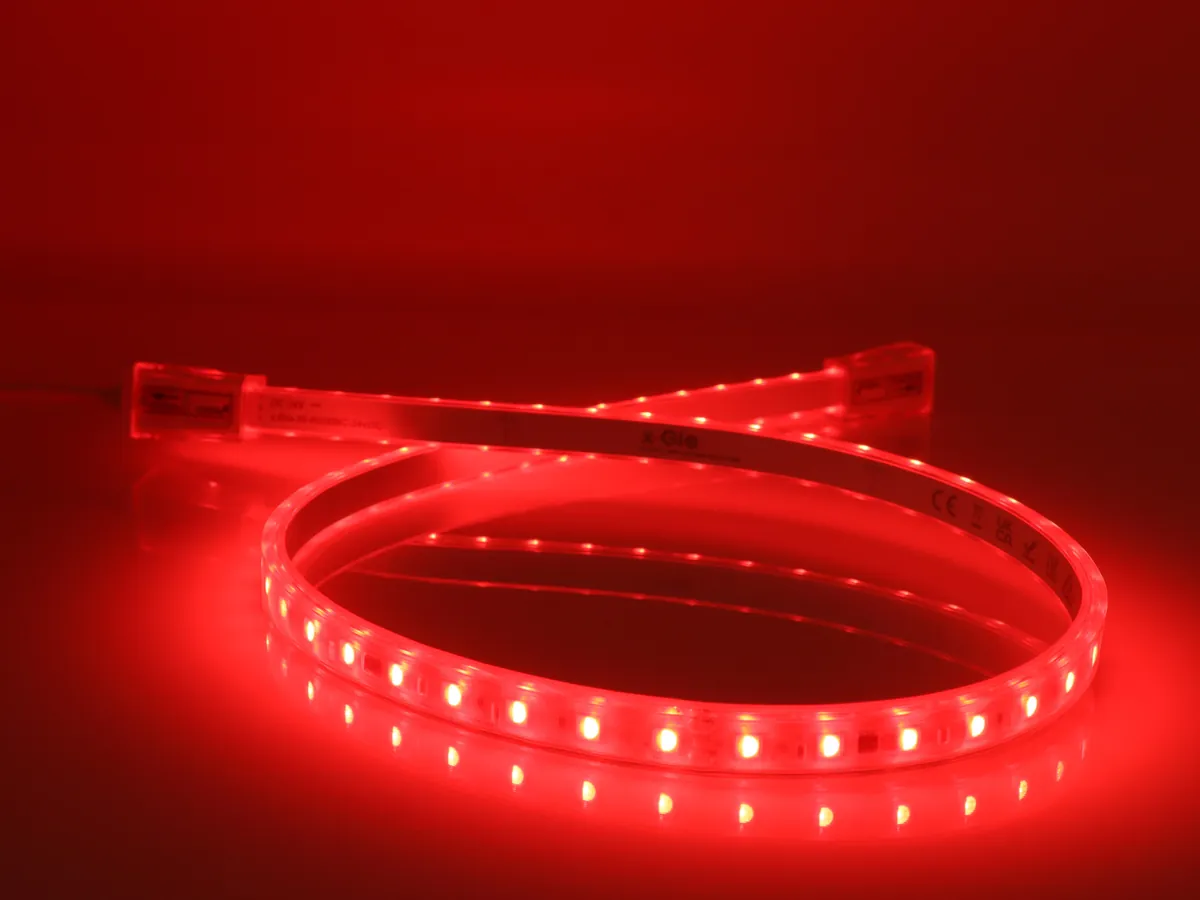

36V tunnel guidance strip · 60 m reference run · 5.5 W/m
A lower-power 36V solution for continuous tunnel route definition where uniform visibility is more important than maximum lumen output. The 36 LED/m configuration produces 600 lm/m at only 5.5W/m, reducing installed load across long guidance circuits.
The combination of 109.09 lm/W efficacy and a reference run up to 60 m makes this version useful for access tunnels, service passages and evacuation-route visibility. Its lower wattage also reduces thermal load inside the sealed IP67 construction.
Use it for continuous visual guidance and moderate-level route illumination. It is not a substitute for a code-required emergency luminaire system unless the complete installation is designed and approved for that purpose.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 36V DC |
| Light output | 600 lm/m |
| Power | 5.5 W/m |
| Luminous efficacy | 109.09 lm/W |
| LED configuration | 36 LEDs/m |
| LED platform | Epistar or ZBL-approved equivalent |
| Color temperature | 6500K standard |
| CRI | >70 |
| Maximum reference run | Up to 60 m; confirm voltage drop and feed points |
| Recommended mounting height | 4–5 m |
| Reference illuminance | 51.86 lx average at 2 m in a 3 m × 3 m tunnel model |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
