High Quality OEM/ODM LED Strip Manufacturer
High Quality OEM/ODM LED Strip Manufacturer

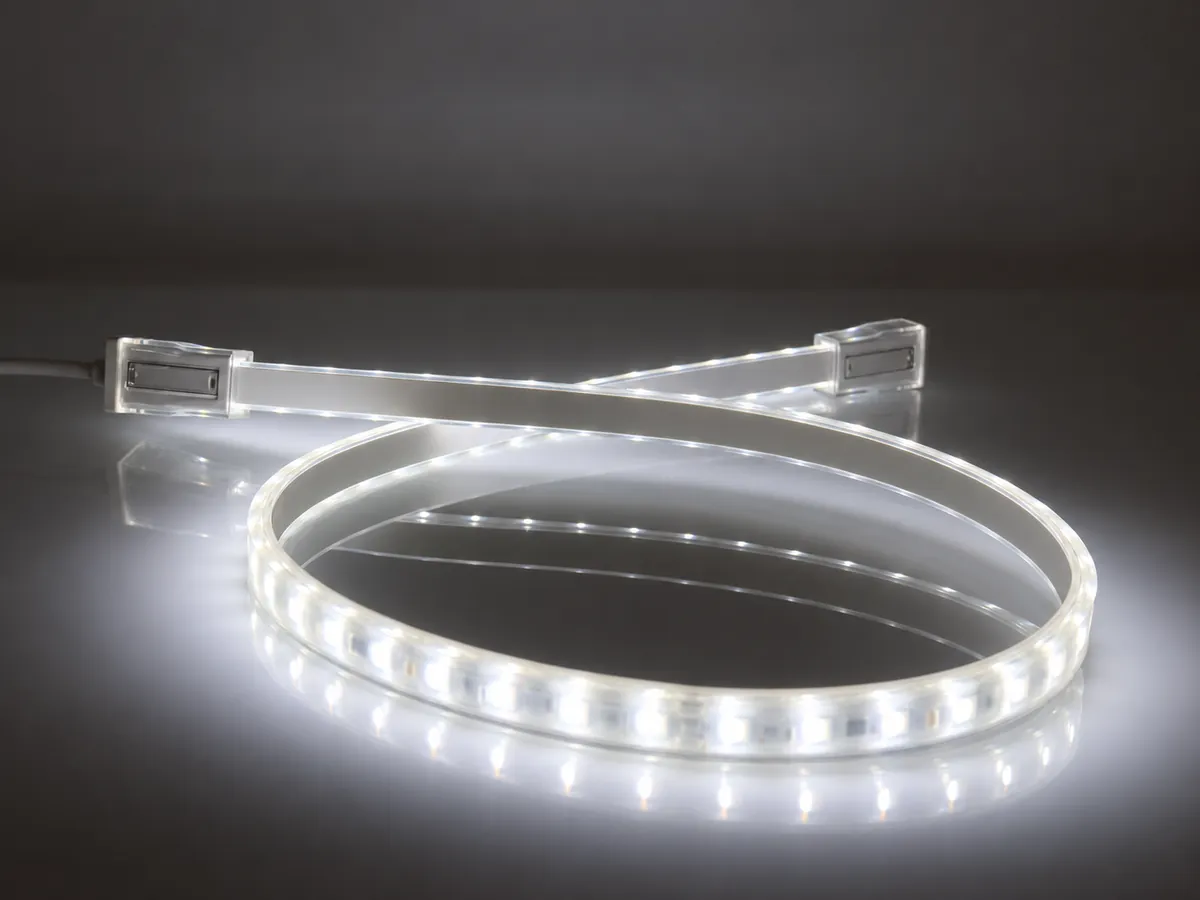

36V long-run mining strip · 900 lm/m · 100 lm/W · IP67
Engineered for longer underground runs where efficiency and voltage-drop control matter more than compatibility with standard 12V or 24V systems. At 9W/m and 100 lm/W, this version produces 900 lm/m with lower power per metre than the 12V and 24V 900-lumen variants.
The 36V architecture supports a reference run of up to 41.8 m and lowers circuit current for the same light output. White, red, green, blue and amber project variants allow one physical product family to support illumination, route identification and status zoning.
Use it for mine drifts, haulage routes and continuous underground guidance where fewer feed points are valuable. Colored versions should supplement—not replace—the site safety system defined by the project engineer.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 36V DC |
| Light output | 900 lm/m, white version |
| Power | 9 W/m |
| Luminous efficacy | 100 lm/W, white version |
| LED configuration | 60 LEDs/m |
| LED platform | Epistar or ZBL-approved equivalent |
| Available light colors | 6500K white; red, green, blue and amber project variants |
| CRI | >70 for white version; not applicable to signal colors |
| Maximum reference run | Up to 41.8 m; final length subject to electrical calculation |
| Recommended mounting height | 5–6 m |
| Reference illuminance | 83.49 lx average at 2 m in a 3 m × 3 m tunnel model |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
