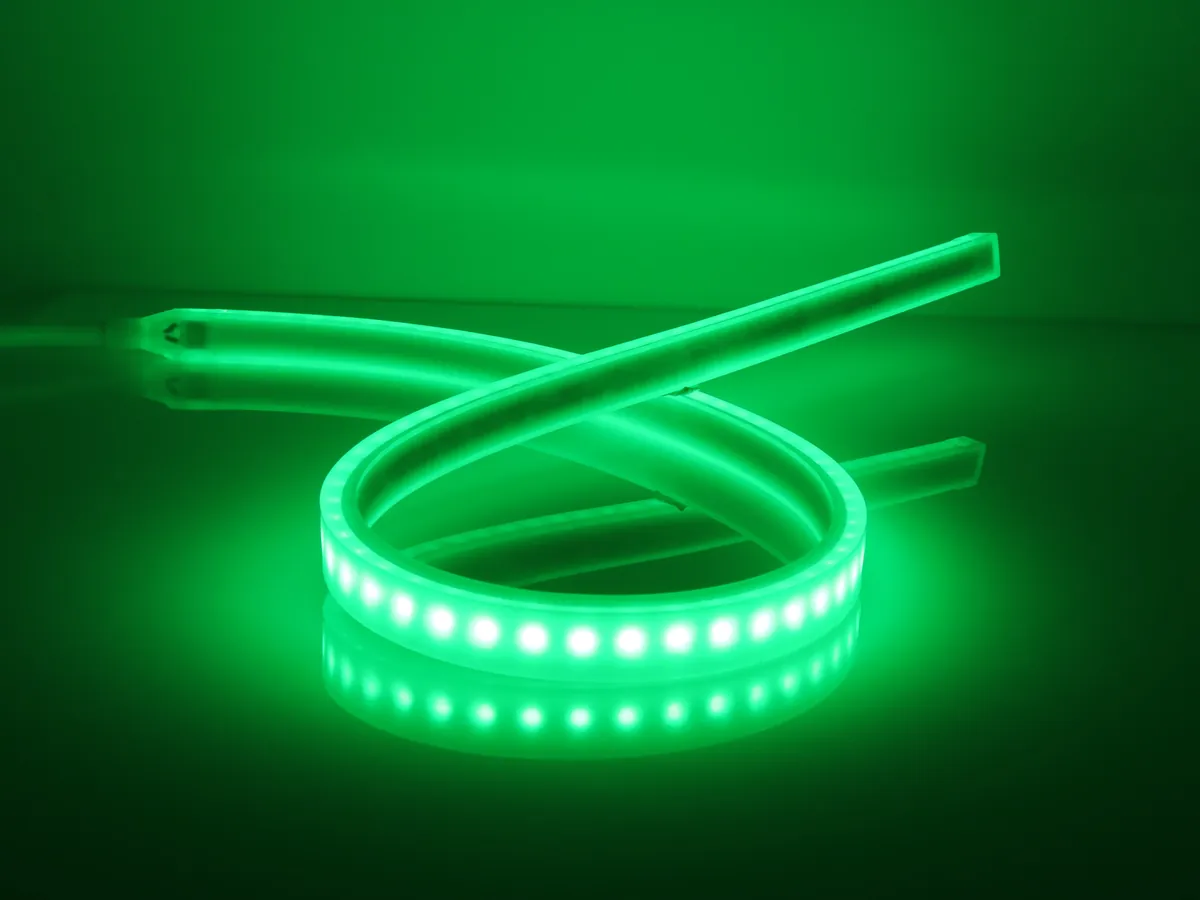

36V hazardous-area strip · 1000 lm/m · 88 LEDs/m · IP67
A higher-density 36V hazardous-area strip for classified locations that require more light from the same 20 × 10 mm envelope. With 88 SMD2835 LEDs/m and 1000 lm/m, it provides the densest white-light layout among the three hazardous-area voltage options.
The 36V architecture balances low-voltage operation with reduced circuit current, while the food-grade silicone extrusion, 500 mm PCB sections and 18AWG cable support robust project installation. Its increased LED density improves visual continuity at closer viewing distances.
Use it for classified mine, process and service areas after the precise certification scope is accepted by the project authority. Confirm bend radius, cable entries and electrical section lengths on the installation drawing.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 36V DC |
| Light output | 1000 lm/m |
| Power | 12 W/m |
| LED configuration | 88 SMD2835 LEDs/m |
| Color temperature | 6500K near daylight |
| Maximum reference run | 20 m |
| Dimensions | 20 mm wide × 10 mm high |
| Internal PCB section | 500 mm |
| Extrusion material | Food-grade silicone |
| Minimum bending diameter | 300 mm |
| Connection cable | Silicone cable with 18AWG, 2-core conductors |
| Operating temperature | Project range to be confirmed; source design references -30°C to +40°C ambient |
| Referenced compliance | EN 60598, EN 62493, EN 55015, EN 61547, EN 61000 and RoHS; exact reports confirmed per quoted model |
| Power supply requirement | Power equipment selected to EN 61347-2-13 and project classification |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
