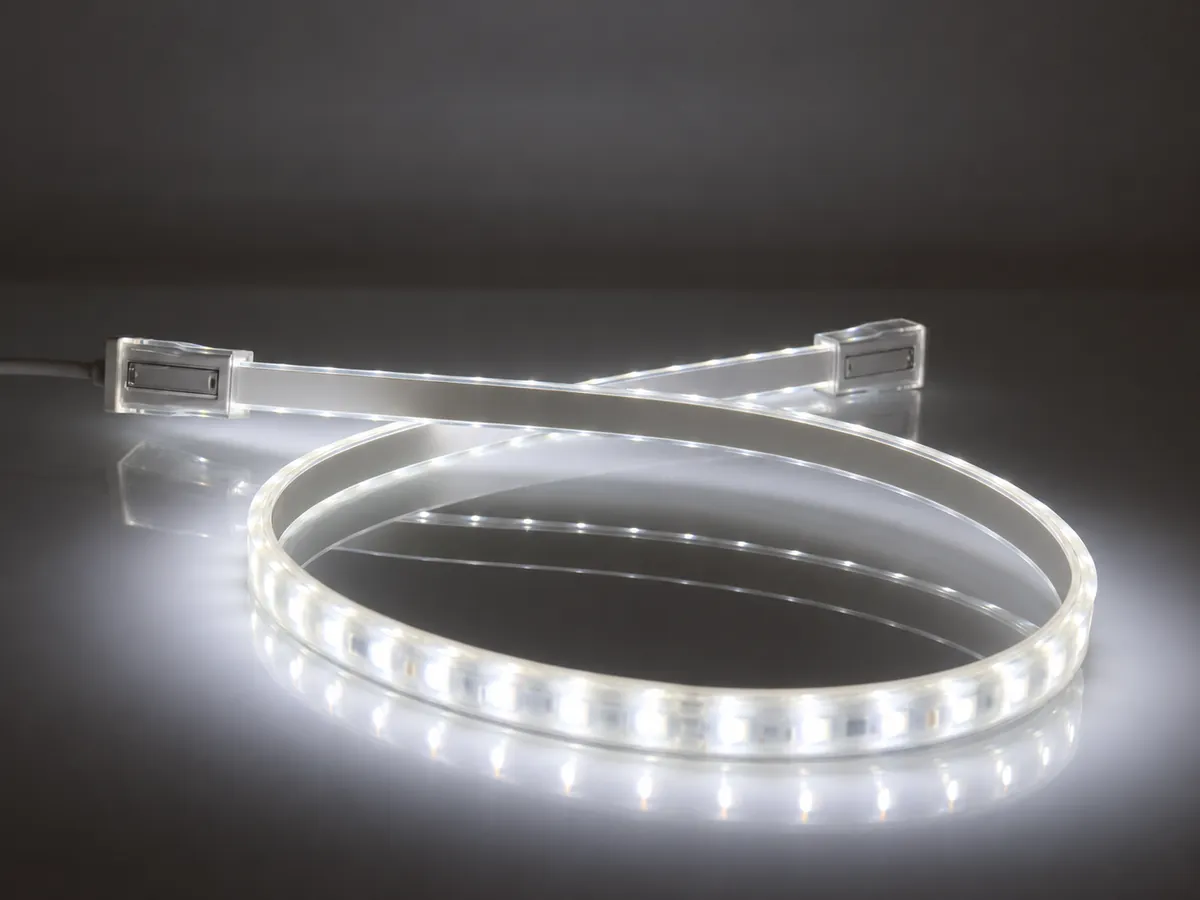

12V underground guidance strip · 900 lm/m · IP67 · 5-year warranty
Designed for short, controlled low-voltage sections where a 12V DC supply is already part of the underground electrical plan. Its 72 LEDs per metre deliver a denser light line than lower-density variants, while the 12W/m load suits local work zones, equipment bays and clearly defined guidance runs.
The key advantage is compatibility with 12V systems without giving up useful output. A recommended 5–6 m mounting height and the recorded tunnel illuminance data give project engineers a practical starting point for layout calculations.
Use it for shorter mine routes, localized equipment illumination and low-voltage guidance sections. For longer continuous runs, compare the 24V, 36V or 48V versions to reduce current and voltage-drop constraints.
Send the route length, supply locations, mounting height, ambient conditions and destination market. ZBL will confirm the electrical layout, construction, documentation and sample plan for the selected version.
Compare more SMD LED strip options, review our guide to choosing the right LED strip, and explore residential lighting applications.
| Nominal voltage | 12V DC |
| Light output | 900 lm/m |
| Power | 12 W/m |
| Luminous efficacy | 75 lm/W |
| LED configuration | 72 LEDs/m |
| LED platform | Epistar or ZBL-approved equivalent |
| Color temperature | 6500K standard; project colors available |
| CRI | >70 |
| Maximum reference run | Up to 10 m; final length depends on feed layout |
| Recommended mounting height | 5–6 m |
| Reference illuminance | 75.37 lx average at 2 m in a 3 m × 3 m tunnel model |
| Ingress protection | IP67 |
| Power-system protection | Short circuit, overvoltage, overtemperature and overcurrent protection |
| Design service life | Up to 10 years, subject to operating hours, ambient temperature, power quality and installation conditions |
| Product warranty | 5 years, subject to approved specification and warranty terms |
| Customization | Cut length, cable exit, connector, light output, color and project packaging |
