The characteristics and applications of illumination 5050 lamp beads

5050 internal set IC phantom light beads, is the LED chip and light control IC integrated package of light beads. LED generally R, G, B three colors, the appearance and 5050 LED beads, each element is a pixel.

About 5050 illumination lamp beads application areas.

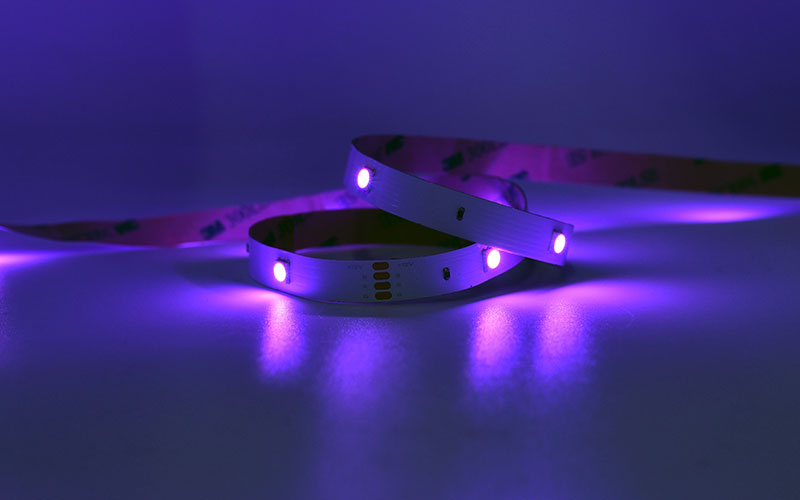

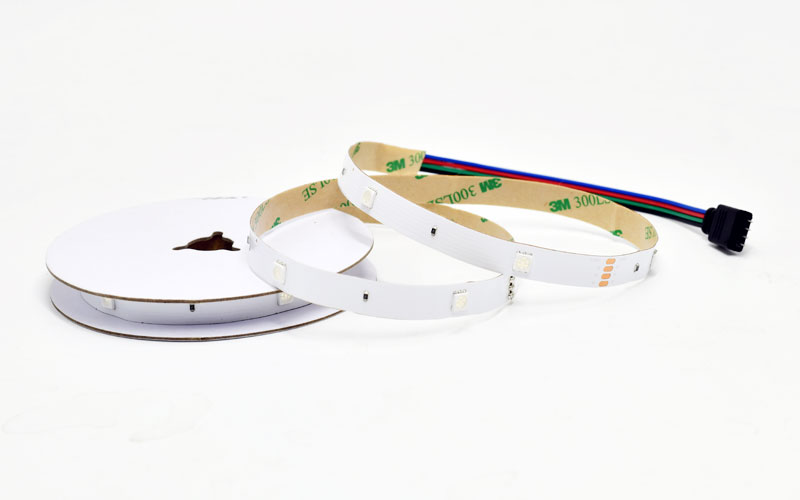

1. LED full-color light-emitting word string, LED full-color soft light bar hard light bar, LED guardrail tube.
2. LED point light source, LED pixel screen, LED shaped screen, various electronic products, electrical equipment running lights.

Second, 5050 built-in IC phantom light beads characteristics.

1. Top SMD internal integration of high-quality external control single-line serial cascade constant current IC;

2. grayscale adjustment circuit, 256 levels of grayscale can also be adjusted.

3. internal set data shaping circuit, each pixel point received signal through waveform shaping and then output, to ensure that the line waveform distortion will not accumulate.

4. Internal power-on reset and power-down reset circuits are set, and the light does not light up when power is applied.

5. Shaping and forwarding enhancement technology, the transmission distance between two points is more than 10M.

6. After special treatment of red light drive, the color matching is more even.

7. the application of single-line data transmission, can be infinitely cascaded.

8. control circuit and chip integrated in SMD 5050 components, to achieve a complete external control pixel, the effect of color temperature rendering average and high consistency.

9. data transmission frequency up to 800Kbps, when the refresh rate of 30 frames / second, the number of cascade is not less than 10

ZBL photoelectric solemnly promises that all the 5050RGB anti-lamp beads sold will be packaged with regular chips, resolutely not to use cheap special chips, large round chips, bead hair chips, fake square chips, processing chips or inferior chips; each grain of 5050 lamp beads for visual light source special LED is completed on the automatic packaging line, after strict spectrophotometric color screening, after strict quality control layers of strict control, to ensure that each batch of the factory reliability, stability, consistency and standardization of each batch of products.
